| Prod Model: |
AE-USB3.0AM/AF-1.8M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
1.8m, or Customed |
| Application: |
Mobile Phone |
| Material: |
Copper |
| Interface Type: |
USB3.0 |
| Pin: |
10Pin |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Feature: |
High Speed |
| Color: |
Black, Blue, or Customed |
Product Description

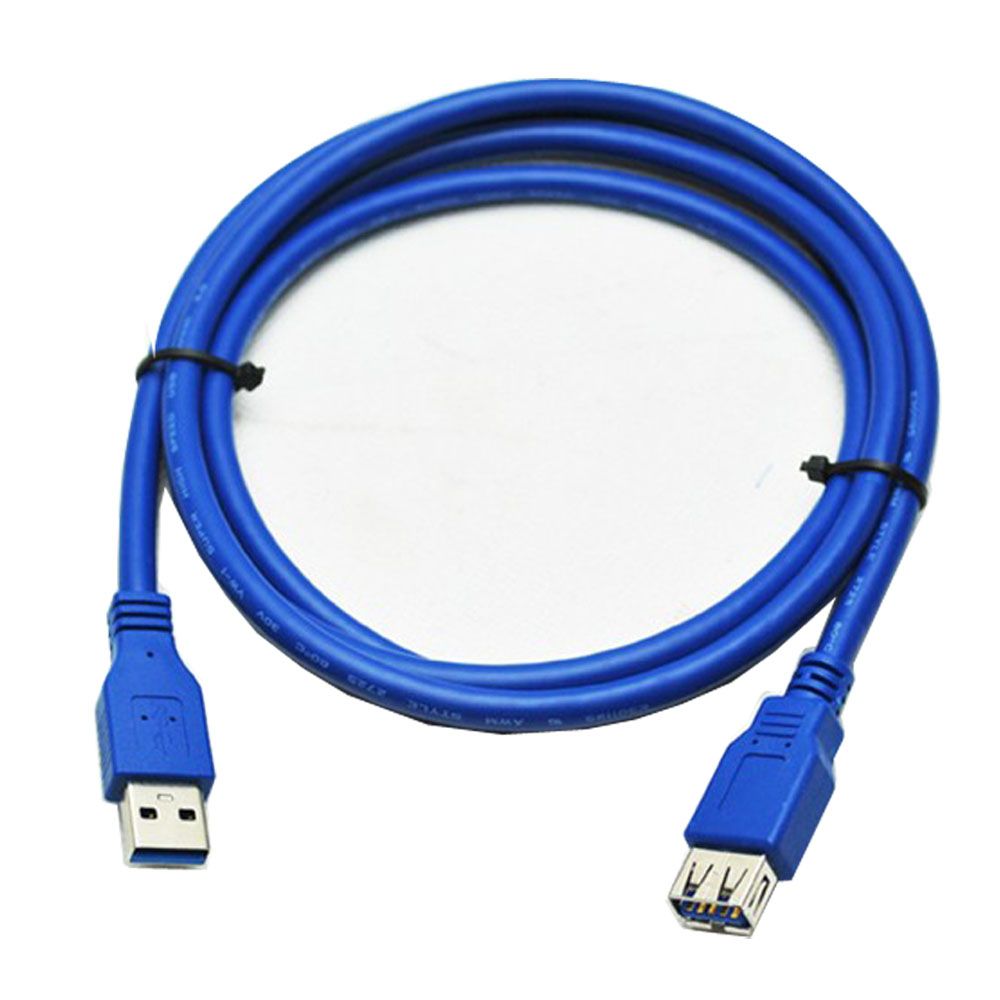

USB 3.0 AM TO AF EXTENSION CABLE
Modem No: AE-USB3.0AM/AF-1.8M
Description
USB3.0 A male to Female Cable
With ferrite core (optional)
Compatible with USB Rev3.0/2.0/1.1
Shielding type: EMI
Specification:
USB3.0 cable AM to AF give High speed hot plug and play , Supporting 5Gbps date rate High speed USB3.0 cable ( compliant with USB1.1,USB2.0,USB3.0) overall shield: overall aulminized polyester shield with drain wire pus tinned copper braid shield Features: Optional gold and nickel plating. Conductor: pure copper Edition:USB1.0,2.0,3.0 Optional Gauge:30AWG,28AWG,26AWG optional Length:0.5M,1.5M,2M,5M ,10M,15M,and according to the clients requirement. Jacket color: Black, Blue, Grey, Transparent, and according to the clients requirement. Electrical: 100% open & short test Hi-Pot: DC 300V 10ms Insulation Resistance: 10M OHM /300V Min. Contact Resistance: 0.01 OHM Max. Shield up to 65% braid. Working Temperature: -25oC ~ +85oC Mechanical: Over mold: PVC 70Pa UL94V-0 Black Pre mold: PE Low Density Contact: Copper Alloy. Insertion Force: 35 N Max. Withdraw Force: 10 N Min
Features:
USB 3.0 CABLE AM TO AF Cable
USB 3.0 CABLE Offer a durable high quality connection
Fast transfer speeds between storage devices and peripherals
Transfer rate of up to 10 times faster than USB 2.0 Version and Has been dubbed the super speed USB
Offers a throughout of up to 4.8Gbps when used with a USB 3.0 host and device. And An astounding 10*the capability of USB 2.0 ( 480Mbps)
Features high quality shielded twisted pair(STP) construction, help to prevent electro-magnetic interface and ensuring reliable date communication
Sync-N-Go to technology that minimizes user waiting time
Provides optimized power efficiency
No device polling and lower active and idle power requirements
Cables is backwards compliant with USB 2.0&1.1
Color: Blue or Black (Optional)
USB 3.0 CABLES is already in mass production
Requirements:
When you use this cable, you must make sure your device is USB 3.0. Thus, you can be get USB 3.0 high speed.
Packaging Contents:
Packaging: blister (optional)/PE bag/carton
