| Prod Model: |

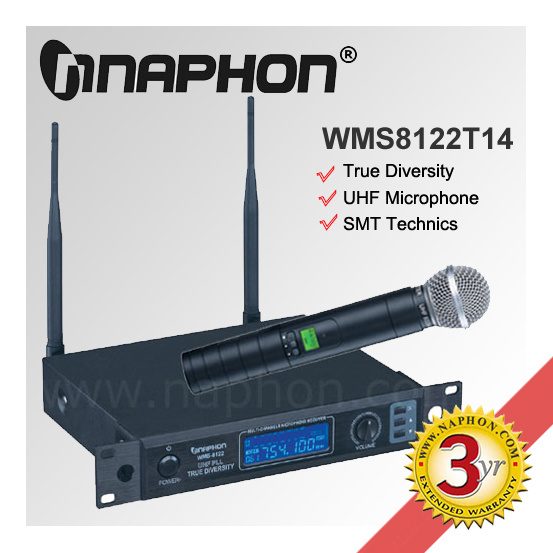

WMS8122T14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| THD: |
<0.005% |
| Noise: |
<95dB |
| Application: |
Stage, Karaoke |
Product Description
UHF 800MHz band PLL frequency synthesized
64-96 applied channels with 300KHz channel space
Dual tune true diversity receiver
7 level adjustable squelch by keys(5dbm per level)
Auto signal scan function
Twice mixer superheterodyne circuit for high sensitivity
Excellent SAW filter for RF and IF circuit
Manufactured by SMT components and technics
AA size batteries for microphone, supply time up to 10~30h
Dual DC-DC step up circuit design for microphone
Half width box for side by side mounting
Up to 300 meter operation distance in perfect environment
Fit for stage, palaestra, playground, assembly room etc.
G. W.: 4.50kgs
SPECIFICATION
Frequency Range: 730~950MHz
Selectable Channels: 64-96
Oscillation Mode: PLL synthesized
Frequency Stability: +/- 10ppm
Receive Mode: Superheterodyne
Diversity Type: Dual tune true diversity
Input Sensitivity: -95dBm~-60dBm
Audio Response: 40~18000Hz
T. H. D. At 1KHz: Less than or equal to 0.5%
Signal to Noise Ratio: More than or equal to 110dB
Audio Output: Balanced and Unbalanced
RF Power: 10~30mW
Modulation Mode: FM
Battery Requirement: 2x1.5V AA size
