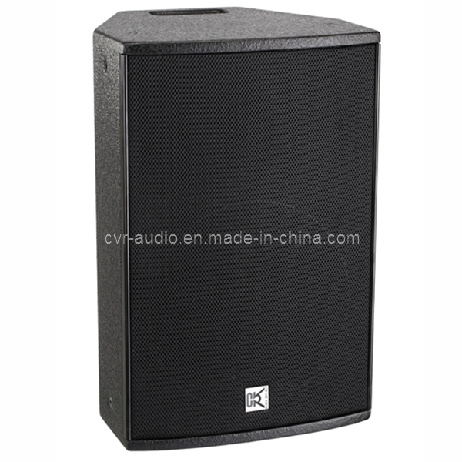

Two way full range portable pro audioDESCRIPTION & APPLICATION CV-102B is a 2-way, full range audio. Its features include one high efficient 10" woofer and one 1.4" titanium compression drivers housed in a compact plywood enclosure, combining smooth dynamic full frequency performance pro audio with high power driver units. It is particularly suitable for clubs,theaters, halls, discos, conferences, etc.TECHNICAL SPECIFICATIONSModel CV-102B
Type Two-way,full range audio
Frequency Response 65Hz -20kHz ± 3dB
Directivity index(DI) 12(+2/-2)1.2KHz-16KHz
Power handling 150W(RMS)300W(PEAK)
Sensitivity 96dB(1W/1M)
Max/S.P.L 118dB(PEAK/1M)
LF section 10"(260mm) woofer
50mm(2in)coil
Nominal impedance 8 ohm
HF section 1.4"compression driver with
34mm titanium diaphragm
Nominal impedance 8 ohm
Output section 2-channel
Dispersion pattern 90°H×50°V
Finish black paint
Speaker cables 1(+)1(-)
Input connectors 2×NL4MP speakon
Dimensions 325×492×303mm(W×H×D)
Package dimensions 395×560×375mm/0.09cbm
Enclosure plywood
Net weight 14.5kg
Gross weight 17kg
OUR TEAM
1. Any inquiries will be replied within 24 hours.
2. Provide high quality, fashion designs, reasonable and competitive price, fast lead time.
3. Delivery the goods to our customer all over the world with speed and precision.
Sample order in stock and 2-15 days for bulk production.
4. After-sale service:

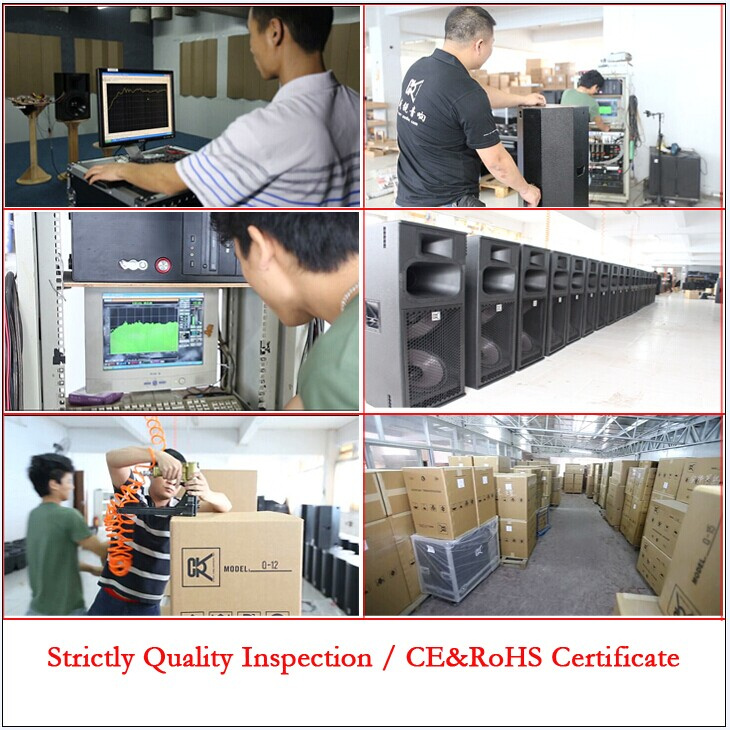

All products will have been strictly quality checked before packing.
All products will be well packed before shipping.
All products have one year free warranty and lifetime follow-up service.
Welcome to contact us for further informations!
Guangzhou CVR PRO-Audio Factory is a manufacturer specialized in producing professional audio equipment with an own brand "CVR "since 2005. Our 5, 000 square meters plant has R&D, sales and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs. CVR PRO AUDIO can easily provide you a wide range of professional sound gear like: PA speaker, indoor and outdoor line array speaker, subwoofer, floor monitor, Power amplifier and speaker management system. From the smallest conference room to the largest stadium.
CVR is the brand we set for global market, carrying great responsibility to satisfy our customers in every possible aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the world.
Our goal is to provide the best equipment with the best services. We have not deviated from this position since we began and will do it consistently.
