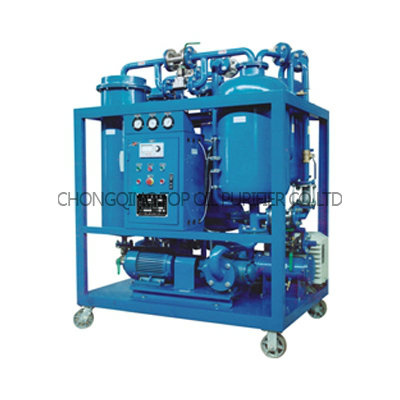

Turbine Oil Purifier with Precise Multi-Stage Filtration System
| Price: |
US $ 6000-30000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
TY Turbine Oil Purifier with Precise Multi-stage Filtration System
1. Self-contained, skid mounted, offer a PLC
2. Remove water, gas, particulate from oil
Turbine Oil Purification system are self-contained, skid mounted and offer a P. L. C. Controlled full status control panel for fully a fully automatic operation.
Application:Series TY oil purifier is widely used for filtering turbine lubricating oil in electric power, metallurgical, chemical engineering industries. It is good at emulsion breaking, dehydration and removing soap, gelatin, acid, pigment and metal particulates in emulsified turbine oil and low-viscosity lubricating oil as well as turbine oil used in other machinery and electric power equipment.To meet customers' special needs, we designed the following types of machines for different requirements and working conditions.TY-A Automatic turbine oil purifier, TY-M Mobile turbine oil purifier, TY-E Ex anti-explosion turbine oil purifier Features:1. It adopts the coalescence and separation and Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.2.Optimized electric heating system with automatic constant temperature controller ensures the oil temperature to be even and stable. 3.Precise multi-stage filtration system helps remove different kinds of impurities with high quality filter element of better ability of containing pollutants and long service life. 4. Advanced infrared oil level control system and pressure protection device make operation simple and safe. 5. It can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite. 6. Air cooling system helps cool down air and gases from the vacuum vessel so as to extend the service life of vacuum pump, avoiding the inconvenience of water cooling. 7. The machine can also be installed with digital flow meter and timer to calculate and record the volume of output oil and working hours (it's optional). 8. Aluminum electric control cabinet has the merits of heat conducting and anti-explosion. Technical parameters:
Index Name |
Unit |
TY-10 |
TY-20 |
TY-30 |
TY-50 |
TY-100 |
TY-150 |
TY-200 |
TY-300 |
Flow rate |
L/ h |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
Working vacuum |
MPa |
-0.06~-0.095 |
Working pressure |
MPa |
≤ 0.4 |
Temperature range |
|
20 ~80 |
Power supply |
|
380V 50HZ 3Ph (As per user's option) |
Working noise |
dB(A) |
≤65~80 |
Heating power |
Kw |
12 |
15 |
18 |
24 |
45 |
60 |
72 |
84 |
Total power |
Kw |
14 |
17 |
20 |
27 |
48 |
66 |
81 |
97 |
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ25 |
Φ32 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
Weight |
kg |
400 |
450 |
500 |
600 |
800 |
1000 |
1100 |
1550 |
Dimension |
L |
mm |
1280 |
1350 |
1350 |
1350 |
1500 |
1500 |
1600 |
1650 |
W |
mm |
750 |
900 |
950 |
1000 |
1000 |
1200 |
1350 |
1350 |
H |
mm |
1450 |
1450 |
1500 |
1800 |
1800 |
1800 |
1800 |
1850 |
Guarantee value
Capability item |
Data |
Moisture |
≤5 0PPM |
Break emulsification value |
≤ 15min (GB/F 7305) |
Clean degree |
≤4grade (NAS1638) |
| Prod Model: |
TY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Efficient Filtration |
| Structure: |
Mobile |
| Mechanical Principle: |
Vacuum |
| Type: |
Return Filter |
| Usage: |
Oil and Gas Separation |
| Color: |
as Required |
| Moisture: |
<=50ppm |
| Clean Degree: |
<=4grade (Nas1638) |
| Warranty: |
2 Years |
| Dimension(L*W*H): |
1200mm*950mm*1300mm |
| Voltage: |
380V 50Hz 3pH (as Per User's Option) |
| Folw Rate: |
600-18000L/H |
Chongqing TOP Oil Purifier Manufacture Co, . Ltd is a corporation dedicated to research and manufacture oil purification machines and test equipment. Our Company has strong capability in research and manufacture, large scale of specialized production, perfect market system, good after-sale service, and thus has achieved good reputation and perfect market image in increasingly fierce market competition.
Our company mainly manufactures and sells below products: Insulting Oil Purifier, Turbine Oil Purification machine, Hydraulic Oil Purifier, Lubricating oil filtration machine, Transformer Oil filtering machine, fuel oil restoration, Steam-Turbine Oil reconditioner, Dielectric fluid regeneration system, Circuit-Breaker Oil recovering system, Compressor Oil recovering machine, Gear Oil renewal machine, Coolant Oil treatment, Quenching Oil reclaiming machine, Oil and Water Separator, Steel-Rolling Oil regeneration equipment, Waste automobile Oil Recycling equipment, petroleum machine and test equipment, etc.
TOP oil purifiers have been widely used in electricity, petrochemical, ship manufacturing, steel construction, bridge, automobile, railways fields and so on, which has been playing an important role in decreasing consumption and environmental pollution for customers.
Since established, taking the mission of "survival based on good quality and development based on technology innovation", TOP has introduced advanced vacuum oil filtering technology from foreign countries and constantly researched and produced oil purification devices to meet the market requirements at home and abroad.
"There is no best, only better. " TOP will make continuous efforts as always to provide better purification equipment for you.
Our oil filtration machine:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier
Series ZYB Multiply-Function insulating oil treatment machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series TYB Portable light Fuel oil purification machine
Series TYD Vacuum dehydrator
Series TYF Phosphate ester fire-resistance oil purifier
Series PL Plate pressure oil purifier
Series TYD Vacuum dehydrator
Series EFD Explosion protection filtration machine
Series BAM Press filtration system
Series ZKCC Vacuum pumping device
Series COP Cooking oil purification machine
Series CYS Centrifugal oil purification machine
Series JL Portable oil filtering and oiling machine
Series EOR series waste engine oil recycling system
Test equipment
1. Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer Water content Tester Model TP-6A / model TP-2100
4. Fully automatic Interfacial Tension Analyzer model IT-800
5. Gas-Chromatography transformer oil gas analyzer model DGA2013-1
6. Multi-functional Vibration tester model TYD-2000
7. Automatic Freezing Point & Pour Point Tester model PT-2000
8. Kinematic Viscosity tester model VST-8 /model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11. TAN-DELTA TESTER, 10kV Capacitance and Dissipation Factor Test Set model CDEF
12. Automatic Freezing Point & Pour Point Tester model TP-501Z
13. Determination of foaming characteristic of lubricating oil model SD-12579
14. Earth resistance tester model HYDW-II
15. Coil Resistance Tester (TPZC-40)
16. CT/PT tester model TPVA-404
17. Transformer turn ratio tester model HYG-II
18. Relaying Protection Tester model TPJB-III
19. Digital Grounding Resistance Tester model TP2571-II
20. DC High Voltage Generator model ZGF
21. Underground water/gold detector model TP-UWD
