Product Introduction:
Excellent Performance:
<>Polymer membrane filtration technology
<>Can be used as by-pass filter
<>Free water removal rate is more than 95%
<>Minimum precision can be controlled within 2 micron
<>Selectivity-pass characteristic
<>High interception rate and low filtration cost
<>Small operating space and convenient drain valve
<>Stainless steel tank pass pressure test can be customized
<>Filter elements can be used repeatedly after back-washed
<>Design service life is more than 20 years (except for filter elements)
Technical Parameters:

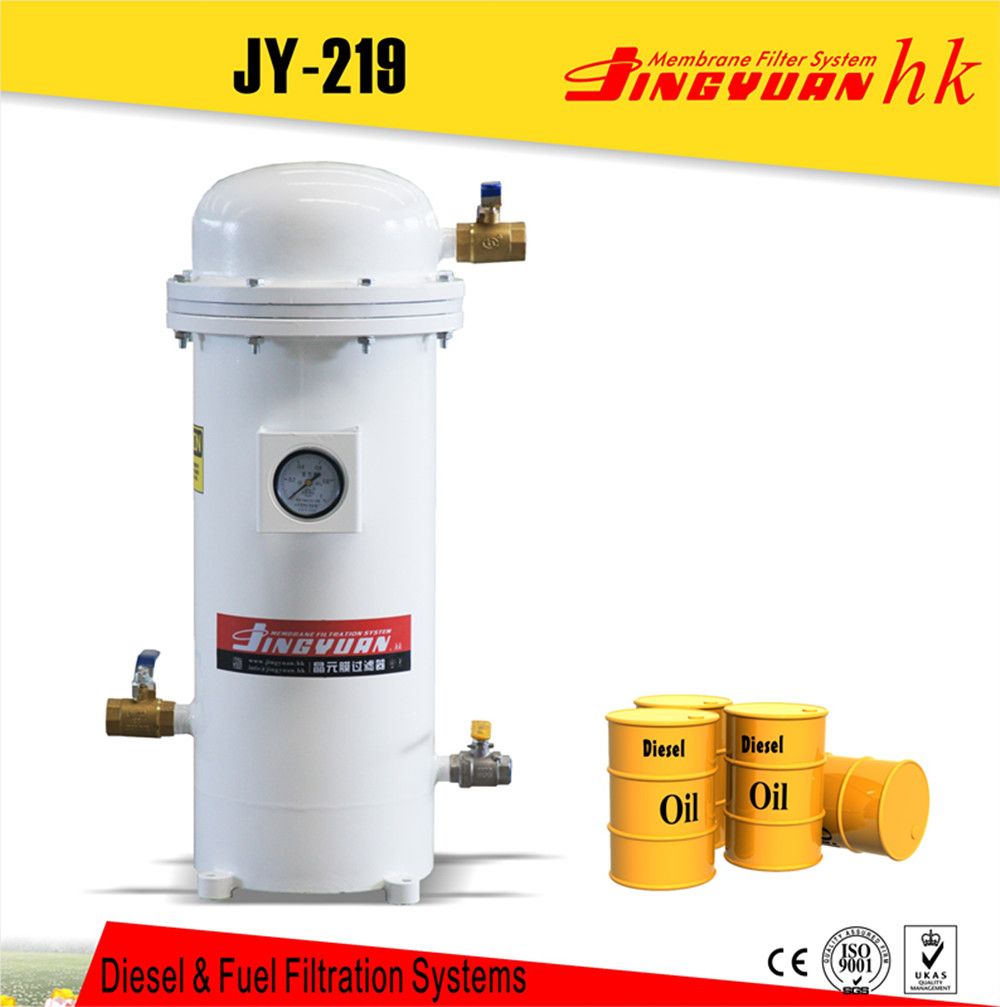

1.Model Type: JY-219
2.Flow Rate: 40 L/min
3.Filtration System:
(1)Polymer Membrane Filter Elements (Can be used repeatedly after washing)
J22-400H02------------------------------------------------------------2μm
J22-400H05------------------------------------------------------------5μm
J22-400H10------------------------------------------------------------10μm
J22-400H15------------------------------------------------------------15μm
J22-400H25------------------------------------------------------------25μm
(2)Filter Element Quantity: 34 Pieces
(3)Function: Remove impurity particles, colloid and water
(4)Working Pressure: 0.2~0.35 Mpa
(5)Filtration Level: 1
(6)Service life: 2~3 Years or longer
4.Filtration Precision:
(1)Range: 2,5,10,15,25 μm
(2)Standard: 5~10 μm
5.Mouth:
Standard: DN20 or End Flange
Or DN20-DN25 According to Requirements
6.Security:
With Pressure Safety Valve
7.Temperature:
Working Temperature: -10~70 ºC
8. Dimension: 310*300*650mm
9.Weight: 21KG
10.Anti-hazard Classification: Grade 2
Application:
Cleaning Oil Filtration Case
Problem:
There is a lot of contamination particles and little free water contained in cleaning oil, will effect the stamping sheet used in automobile.
Solution:
JY-ZL40 Industrial Oil Purification Filter can solve the problem excellently.
Principle:
Selectivity pass characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated.
Relative Products for Your Reference:
| Small Volume Fuel Purification Filter Technical Parameters |
| Item | Unit | JY-219 | JY-219A | JY-T32A | JY-T32 | JY-T100 |
| Flow Rate | L/min | 40 | 60 |
| Filter Element Quantity | Piece | 34 | 68 | 90 |
| Filter Element Type |
| J30-970H | J22-400L/H | J22-330L/H |
| Filtration Stage | Level | 1 | 2 | 3 |
| Dimension | L | mm | 310 | 310 | 680 | 660 | 1370 |
| W | mm | 300 | 390 | 480 | 350 | 410 |
| H | mm | 650 | 670 | 660 | 650 | 830 |
| Weight | KG | 21 | 30 | 64 | 49 | 125 |
| Power Syetem | Voltage | V |
| 380/220/DC24/DC12 |
|
|
| Pump |
|
| Diesel Centrifugal Pump |
|
|
| End Flange |
| DN20 | DN65 |
| Security |
| With Pressure Safety Valve |
| Function |
| Remove impurity particles, colloid and water |
| Working Pressure | Mpa
Psi | 0.2~0.35
29~51 |
| Service Life | Year | 2~3 |
| Filtration Precision | μm
Mesh No. | 2,5,10,15,20,25
6250,2500,1250,800,625,500 |
| Working Temperature | ºC | -10~70 |
| Applicative Oil |
| Light Diesel, Industrial Oil |
| Application Field |
| Mining Machinery, Engineering Machinery, Construction Machinery,
Power Generator Unit, Gas Station, Oil Depot, Oil Storage Tank |
Various Products Solves Your Problem in Oil Purification :
Large Capacity High Precision Diesel Refined Machine: JY-DF Series
Small Volume Diesel Purification Strainer: JY-219 Series, JY-T Series
Portable Industrial Oil Filtration Trolley: JY-E Series, JY-M Series
Diesel Demulsification Filtration System:JY-DFF Series
Sea Oil Water Removal System: JY-DFS Series
High Viscosity Hydraulic Oil/Gear Oil/Engine Oil Purification Refined Machine:JY-G Series
