| Prod Model: |
BP-1 Plus |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hi-Fi: |
Not Hi-Fi |
| Application: |
Home |
| Certification: |
RoHS |
| Noise: |
Lowest Noise |
| Operation Mode: |
Transformerless,DC-Decoupled Input |
| Speaker System: |
None |
| Speaker Material: |
None |
| Monitor: |
Without |
| THD: |
Without |

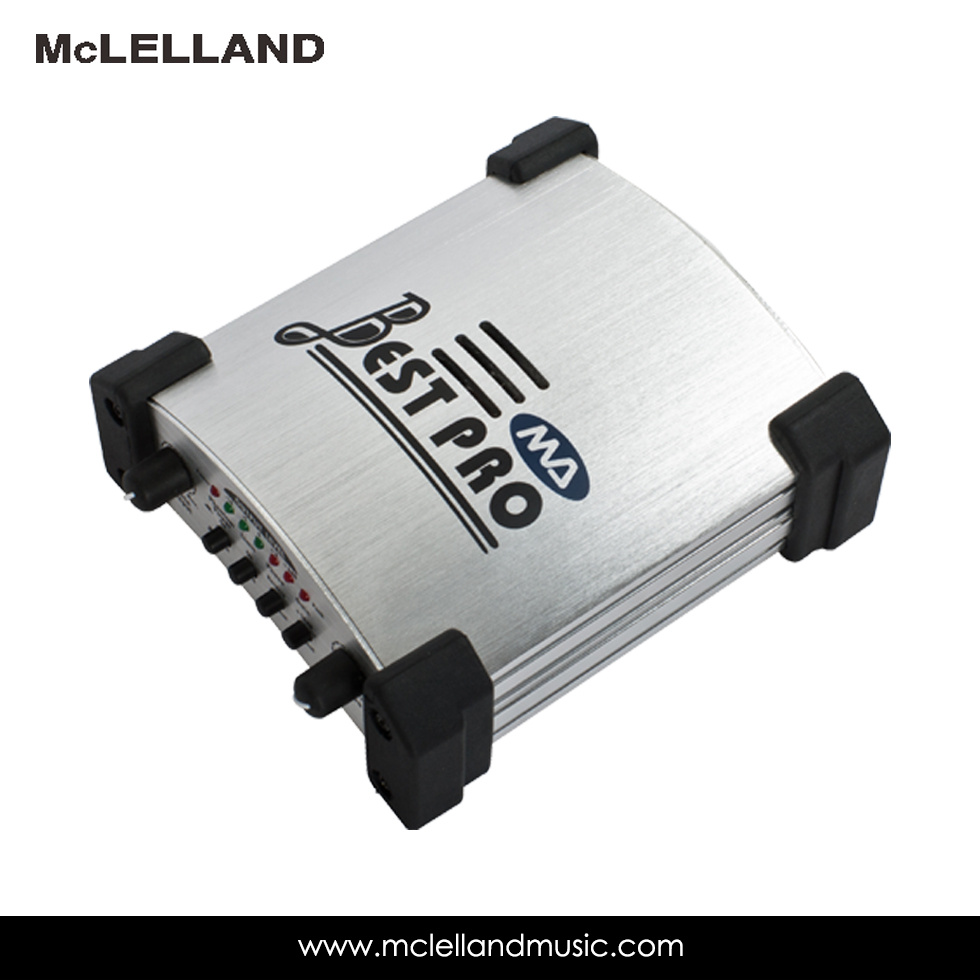

Product Description
* 12AX7 Vacuum Tube is used for warm sound and Lowest noise:
* Limiter switch to prevent distortion:
* Phase switch to reverse the input signal:
* Selectable +48V Phantom power supply:+48V
* +20dB Gain switch provided:+20dB
* LED indicators for output level:LED
* Input and output plug: balance 1/4" TRS and XLR
:1/4"TRS XLR
* Aluminium case with robber feet:
* Power: AC 9V
SPEC
| XLR input |
| Connector | Balanced/unbalanced |
| Type | Transformerless, DC-decoupled input |
| Impedance | 2KÙ |
| Max. Input level | +7dBu/20dB with Gain |
| 1/4" TRS input |
| Connector | Balanced/ unbalanced |
| Type | Transformerless. DC-decoupled input |
| Impedance | 1MÙ |
| Max. input level | +16dBu/ 20dB with Gain |
| Audio output |
| Connectors | XLR and 1/4" TRS connector balanced/ unbalanced |
| Type | Transformerless. DC-decoupled input |
Mansion Industry Co., Ltd. is a professional audio manufacturer, which includes R&D, design, sales and services department, was established in 1985, at the following address 5F, NO. 6, Szu-Wei Lane, Cheng Road, Hsin-Tien City, Taipei, Taiwan, R. O. C.
Our main products are Equalizers, Crossovers, Power Amplifiers, Video Signal Solution, MIDI Controller, USB/Firewire Audio Interface, Mixers, Digital Effect Processors, Speaker, Microphones and Home Installation Audio products.
We promote our own products all over the world, also we welcome the OEM cooperation. To keep the quality be perfect and satisfy customer's requirements is our company's top target.
At present, we own more than 300 employees. Among them, engineers and technical personnel fifty six people. The high-level employees group and advanced technique help to produce the products with competitive.
Mansion would like to set up a faithful partner relationship with every friend and provide the sincere service. We have been move a new factory about 16000 SQM located within the town of Shenzhen.
