Prod Model: |
P16 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
High Brightess: |
10000 Nits, Customized Brightness Is Availble |
Driving IC: |
Mbi 5020, Mbi 5024, Mbi5026 or Mbi5041, Mbi 5042 |
Refresh Rate: |
>600 Hz |
Control System: |
Asynchronous or Synchronous |
Warranty: |
2 Years Warranty |
Technical Support: |
Life Long Technical Support |
Training: |
in House Factory Training or on Site Training |
Pixel Configuration: |
1r, 1g, 1b |
Display Type: |
LED Video Display |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Configuration: |
1R, 1G, 1B |
Pixel Pitch: |
16mm |
Display Function: |
Video Display |
Scanning Mode: |
Static Scan |
Certification: |
CCC |
Pixel Density: |
3906 Pixels/M2 |
Average Power Consumption: |
390 |
Product Description
Outdoof full color led display

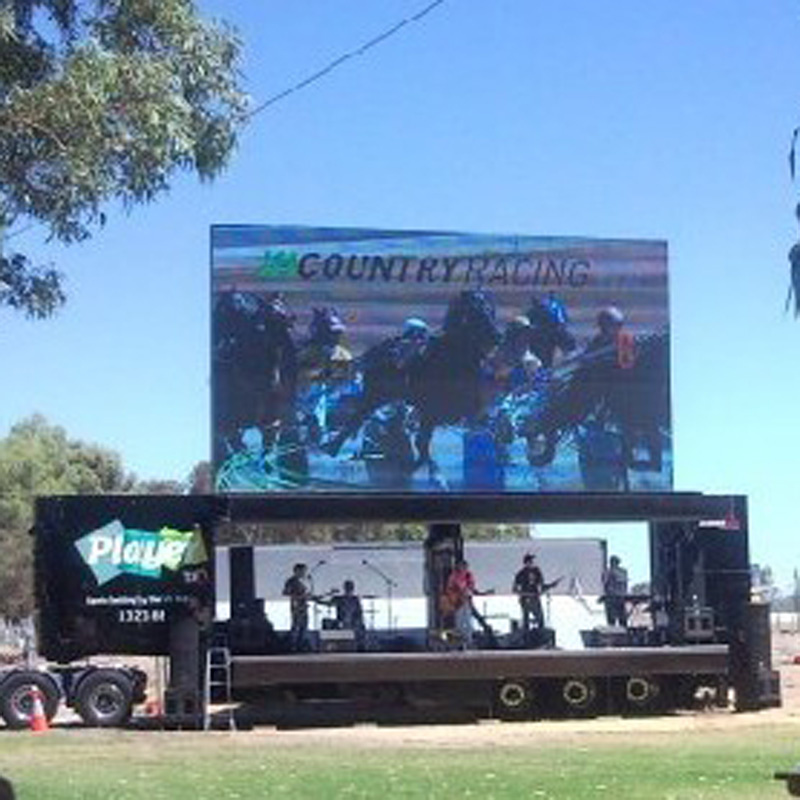

Indoor and outdoor Full Color LED Display Screen, usually used for Plaza, shopping mall, street side, high way, school, stadium, shows, entertainments etc with different commercial advertising purpose to attract more eye catching.
1. Focus on and only focus on LED display and modules more than 15 years;
2. Customized LED Display and modules in irregular size and specifications, such as bus sign;
3.1R1G1B as one pixel with top LED such as Silan, Epistar etc;
4. Bigger modules, more flatness of screen surface;
5. Best Color Uniformity and white balance; Color vividly, strong visual impact;
6. Good heat dissipation, anti-shock with multi-layers PCB design;
7. Constant current and static driver manner with longer life, low light decay;
8. High brightness: More than 2000 nits per square meter for indoor display, and more than 8000 nits per square meter for outdoor display;
9. Total black mask with high contrast ratio;
10. On line free training for how to assemble LED display modules to cabinets, cabinets to screens, How to operate software, how to maintain etc.
Partner for Guangzhou Asian Games, Shanghai World Expo, Beijing Olympic Games, China-Asian Expo and Boao Asian Forum.
P16 outdoor full-color high-contrast LED display |
Item |
Details |
Parameters |
Pixel |
Physical |
16mm |
Pixel Configuration |
1R1G1B |
Module |
Module resolution |
16*16 pixels |
Module Size |
256*256mm |
Cabinet |
Physical resolution |
64*64 pixels |
Cabinet Size |
1024*1024mm HxW |
Physical density |
4096 pixels/cabinet |
Module quantity |
16pcs=4(h)*4(w) |
Material |
steel |
Weight |
55 kg Approx |
Power supply(5V60A) Quantity |
4 pcs |
Average power consumption |
410W |
Max power consumption |
1220W |
Electricity
parameter |
Brightness |
9000 nits |
Brightness adjusted |
100 grade by software or by Auto-optic induced |
Color processing |
8 bits |
Display color |
16 millions |
Color temperature(k) |
7200k |
Physical density |
3906 pixels/per square meter |
Whole display flatness |
≤ 1.2mm Juncture |
Best view distance |
9-65m |
Best viewing angle |
H≥100° V≥50° |
Storage temperature |
40 degree -5 degree |
Working temperature |
20 degree -50 degree |
Driving Method |
Constant driving current Scan: static |
Refresh frequency |
up to 300Hz |
Frame rate |
75Hz |
Humidity(RH) |
10%-90% |
Protection grade |
Front IP65, Rear IP54 if not specified |
Working voltage |
DC 5V |
Power supply |
AC 110V ±10% / 220V ±10% |
Average power consumption |
400W/M2 |
Max power consumption |
1200W/M2 |
MTBF |
8,000 hours |
Screen lifetime |
100,000 hours |
Control
System |
Control System |
Linsn |
Signal Interface |
DVI |
Communication distance |
CAT5cable:≤100m Fiber Cable:≥500m |
Signal transfer mode |
dot to dot synchronized with computer monitor |
