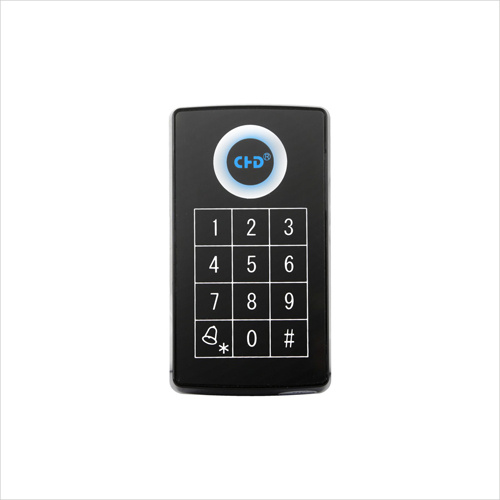

Touch Keypad Smart Chip Card Reader (CHD602ATK/MTK)

Touch Keypad Smart Chip Card Reader (CHD602ATK/MTK)

The Reader is ID proximity card reader, with Touch Keypad and support using Keypad input. Default communication is Wiegand 26 BIT, but 34 BIT, 36 BIT, 44 BIT etc. are optional for the customer request.
The reader has comfortable touch feeling keypad, call button (can be used as Door Bell); when press the buttons, and the buzz will also give some waning tone, and all the button will have white backlight, it is good when the light is not so good to operate the reader using the backlight to do the operation.

Swipe card with fast response, plastic cover, beautiful and useful, easy to operate. The card also has Tamper Function to make the reader working safely.


Parameters
Dimensions:115MM(L)* 65MM(W)* 25MM(H);
Display: white backlight;
Keypad: 12 buttons, white key light;
Net Weight: 100g;
Environment Temperature: Working Temperature: -10 degree--+50 degree; Storage Temperature: -40 degree--+70 degree;
Humidity: more or less 90%, non-condensing;
Environment request: no dust, not corrosive gas, no combustible gas, no oil mist, no water vapor, no water or no salt etc.;
ESD immunity: air discharge ≤±9KV, connect discharge ≤±6KV;
Power supply: Working Voltage 12VDC, more than 200MA;
Power consumption: switching power supply design, static standby less than 75MA, dynamic current less than 120 MA;
IC working frequency: 125KHZ;
IC card reading distance: 10cm more or less;
Detecting speed: ≤1s;
Wiegand transmit distance: ≤60m;
Ring bell output: Yes;
Tamper alarm function: Yes.


Our Services
1.High quality and good performance .
2.Connect to the multiple door access controller , security and durable.
3.can provide the softward to connect to the internet and the softward free charged.
4.Stylish appearance and convenient to install.
5.More than 10 years manufacture experience, independent research and development.
7.Professional technician, ensure products quality.
8.The best factory price without extra charge.
9.24hours online service.

For more information, pls vist our website: www.newabel.com


Company Information
A high-tech enterprise integrating the research, manufacture and marketing of intelligent card management systems.CHD is Newabel's FAMOUYSMARK .Since the establishment in 2000, we have passed the evaluation of ISO9001:2000 quality management systems certification; CE;UL;FCC and RoHS certification;All of our products hold independent intelligent property rights.Our main products include:Intelligent Access Control systems,Time Attendance systems,Parking Management systems,consumption systems,patrolling systems,fingerprint identification systems,perimeter security products and sensors.
Now, our products are widely used in telecommunication, military, finance, electricity, prison, commercial and residential fields.we have established branch offices in most provincial capitals,many large-or-medium-size cities including HK and Macau with our clients spreading all over the country and many over regions.We not only sell products, software and whole system solutions, but also can do OEM & ODM orders as per customers' requirements.
