| Prod Model: |
TM050RVHG01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Temperature: |
-20~70 |
| Storage Temperature: |
-30~80 |
| Viewing Direction: |
6:00 /12:00 |
| Backlight: |
LED(White) |
| Application: |
Instrument |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
2ms |
| 3D: |
Not 3D |
| Screen Size: |
5 |
| Optimum Resolution: |
800(RGB)*480 |
| Interface Type: |
RGB(Ttl) |
Product Description
General Specifications
| Feature | Spec |
| Display Spec. | Size | 5.0 inch |
| Resolution | 800(RGB)×480 |
| Interface | RGB 24 bits |
| CTP:I2C |
| Color Depth | 16.7M |
| Technology Type | a-Si |
| Pixel Pitch (mm) | 0.135x0.135 |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Display Mode | TM with Normally White |
| Surface Treatment | CTP:6H |
| Up Polarizer:Clear(3H) |
| Viewing Direction | 12 o'clock |
| Gray Scale Inversion Direction | 6 o'clock |
| Active Area(mm) | LCD:108.00x64.80 |
| CTP:97.44(W) x 56.26(H) |
| LCM (W x H x D) (mm) | 123.26x80.06x4.75 |

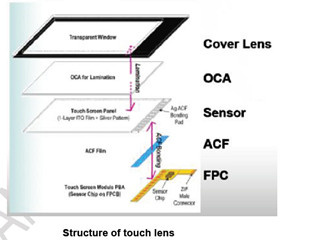

| CTP Structure | Glass Lens-Glass Sensor |
| CTP Touch Method | Bare finger |
| Number of simultaneous touches | 5 points |
| Minimum Touch Area(mm) | Φ6 |
| Finger Touch Pitch(mm) | 13 |
| Control IC | CTP:NT11002QG-48/A |
TFT
LCD:HX8264-D+HX8664-B |
| LED Numbers | 15LEDs |
| Item | Symbol | Condition | Min | Typ | Max | Unit | Remark |
| View Angles | θT | CR>=10 | 40 | 50 | -- | Degree | Note 2 |
| θB | 60 | 70 | -- |
| θL | 60 | 70 | -- |
| θR | 60 | 70 | -- |
| Contrast Ratio | CR | θ=0° | 400 | 600 | -- |
| Note1,Note3 |
| Response Time | TON | 25ºC | -- | 20 | 30 | ms | Note1
Note4 |
| TOFF |
| Chromaticity | White | x | Backlight
is on | 0.260 | 0.310 | 0.360 |
| Note5
Note1 |
| y | 0.280 | 0.330 | 0.380 |
| Red | x | 0.540 | 0.590 | 0.640 |
| y | 0.300 | 0.350 | 0.400 |
| Green | x | 0.298 | 0.348 | 0.398 |
| y | 0.520 | 0.570 | 0.620 |
| Blue | x | 0.095 | 0.145 | 0.195 |
| y | 0.060 | 0.110 | 0.160 |
| Uniformity | U |
| 75 | 80 | -- | % | Note1,Note6 |
| NTSC |
|
| -- | 50 | -- | % | Note 5 |
| Luminance | L |
| 250 | 300 | -- | 2
cd/m | Note1,Note7 |
| No | Test Item | Condition | Remarks |
| 1 | High Temperature
Operation | Ts = +70ºC, 240 hours | Note1
IEC60068-2-1,GB2423.2 |
| 2 | Low Temperature
Operation | Ta = -20ºC, 240 hours | IEC60068-2-1
GB2423.1 |
| 3 | High Temperature
Storage | Ta = +80ºC, 240 hours | IEC60068-2-1
GB2423.2 |
| 4 | Low Temperature
Storage | Ta = -30ºC, 240 hours | IEC60068-2-1
GB2423.1 |
| 5 | Storage at High
Temperature and
Humidity | Ta = +60ºC, 90% RH max,240hours | Note2
IEC60068-2-78
GB/T2423.3 |
| 6 | Thermal Shock
(non-operation) | -30ºC 30 min~+70ºC 30 min,
Change time:5min, 100 Cycle | Start with cold temperature,
End with high temperature,
IEC60068-2-14,GB2423.22 |
| 7 | ESD | C=150pF,R=330Ω,5point/panel
Air:±8Kv,5times;
Contact:±4Kv,5times
(Environment:15ºC~35ºC,
30%~60%.86Kpa~106Kpa) | IEC61000-4-2
GB/T17626.2 |
| 8 | Vibration Test | Frequency range:10~55Hz
Stroke:1.5mm
Sweep:10Hz~55Hz~10Hz
2 hours for each direction of X.Y.Z.
(6 hours for total) | IEC60068-2-6
GB/T2423.10 |
| 9 | Mechanical Shock
(Non Op) | Half Sine Wave
60G 6ms, ±X,±Y,±Z
3times for each direction | IEC60068-2-27
GB/T2423.5 |
| 10 | Package Drop Test | Height:60cm,
1corner,3edges,6surfaces | IEC60068-2-32
GB/T2423.8 |
| 11 | Package Vibration
Test | Random Vibration:
0.015G*G/Hz for 5-200Hz,
-6dB/Octave from 200-500Hz
2 hours for each direction of X,Y,Z
(6 hours for total) | IEC60068-2-34
GB/T2423.11 |
