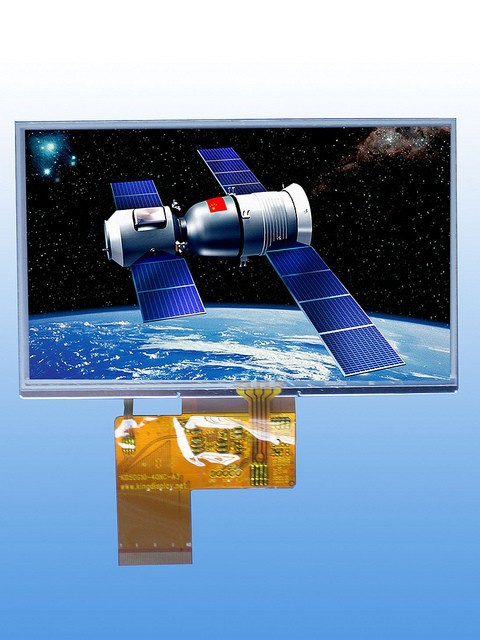

The Supply of 5 Inch TFT LCD Display with a Capacitive Touchscreen Support Small Batch Customization

Name: The Supply of 5 Inch TFT LCD Display with a Capacitive Touchscreen Support Small Batch Customization
Brand: ec-portal.com
SKU: 755812265
Availability: InStock
Rating: 4.8 (99 reviews)

Price:	US $ 11/Piece
Trade Terms:	FOB,CPT
Min Order:	5000/Piece
Pay Type:	Paypal

Send Inquiry

Showroom Product Company Profile

Prod Model:	JT040WBN02

Product Description

1 Product Name: 5 inch 800*480 dot matrix, /8 16 bit parallel port TFT color LCD screen
The 2 type: JT050QKV03C
3 display modes: TFT, negative.
Display type: full penetration type 4
Resolution: 5 800*RGB*480 dot matrix,
6 of the total size: 121*76*14.1mm
7 visual area size: 110.3*67mm
Size 8 dot area: 108.0*64.8*14.1mm
9 interface types: parallel interface mode of 16 bit /8 bit MCU
The 10 type of connection: the connection type
11 backlight color and type: white LED backlight, If=280mA, Vf=5V
The 12 perspective: 6:00
13 operating temperature: -20----70 degrees
14 storage temperature: -30----80 degrees

Shenzhen just display technology Co. Ltd., is a professional production of liquid crystal display (LCD) and liquid crystal display module (LCM) of the enterprise. The company since its establishment, the spirit of "scientific, rigorous, pragmatic" attitude to learn and absorb the advanced technology industry, is dedicated to the research and development of liquid crystal display and the design of the production equipment, and constantly optimize the product structure, TN/STN/TFT display and TN/STN/CSTN/ TFT module with high performance, the product is widely used in the field of communications equipment, logistics and communications control terminals, POS machines, apparatus and instrument, information appliances, toys, MP3, MP4, GPS, mobile phone etc...
