Product Descreption

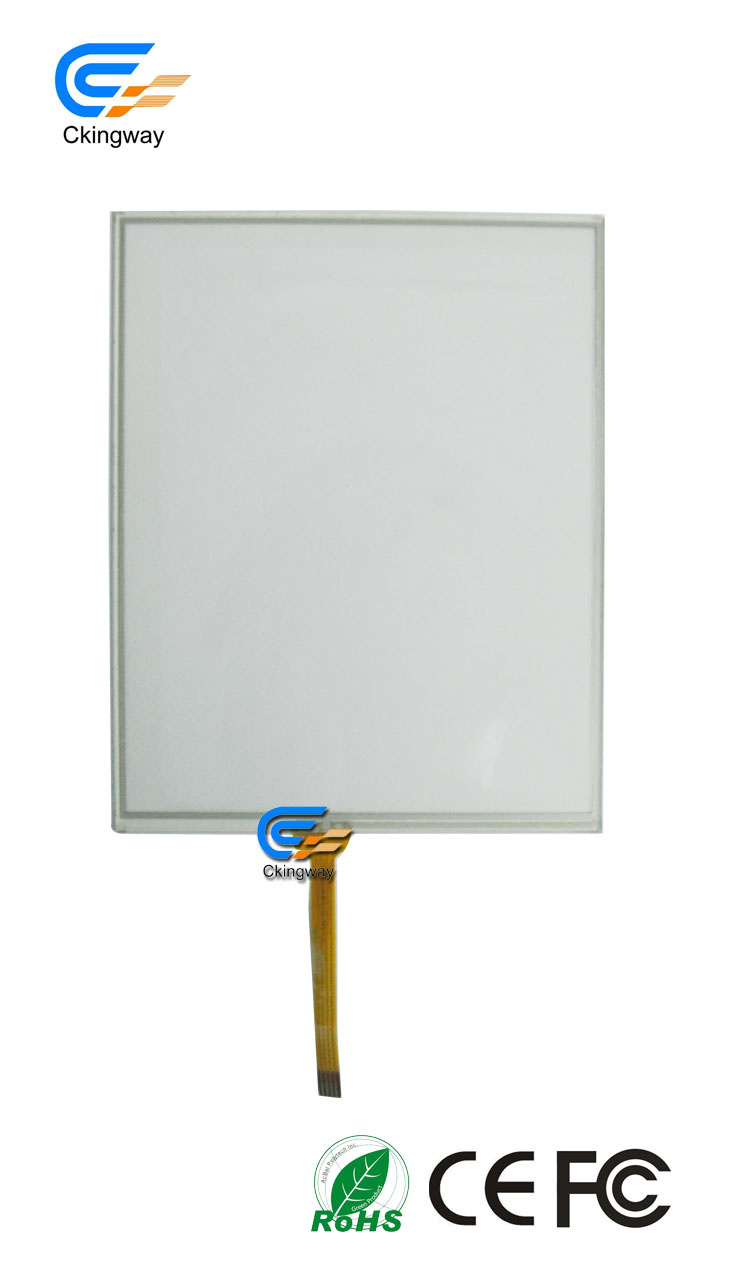

The Feathers Of The Most Popular TFT- LCD Touch Screen with 5.6 Inch Resistive Touch Panel Terms As Bellow:
1.5.6 Inch Size.
2.With High Quality And High Sensitivity.
3.Can Be Touched By Finger Or Touch Pen.
4.With 4 Wire Resistive.
5.Pin 4 plug connector.
| Size | 5.6" inch |
| Structure | Film + Glass |
| Connector | Pin 4 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen |
| Type | 4 Wire Resistive Touch screen |
| Ratio | 4:3 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC , 35 mA |
| Transparent | ≥ 78% |
| Screen Resistance | X:100-500Ω Y:200-1000Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 30 - 150 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ;
≥ 100,000 time in paddling |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
Packing & Delivery of The Most Popular TFT- LCD Touch Screen with 5.6 Inch Resistive Touch Panel:
Packing: Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Delivery:3-5 work days after your full payment.
The Most Popular TFT- LCD Touch Screen with 5.6 Inch Resistive Touch Panel for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery
4.Payment method can be nogotiated
Delivery: 3-5 Days After Your Full Payment.
About Warranty: 1 Year without damaged by people actions.
