| Prod Model: |
K850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Principle: |
Mixing Heat Exchanger |
| Structure Material: |
Metal Material |
| Application: |
Heater |
| Heat Transfer Surface: |
Plate Heat Exchanger |
| Type: |
Infrared Burner |

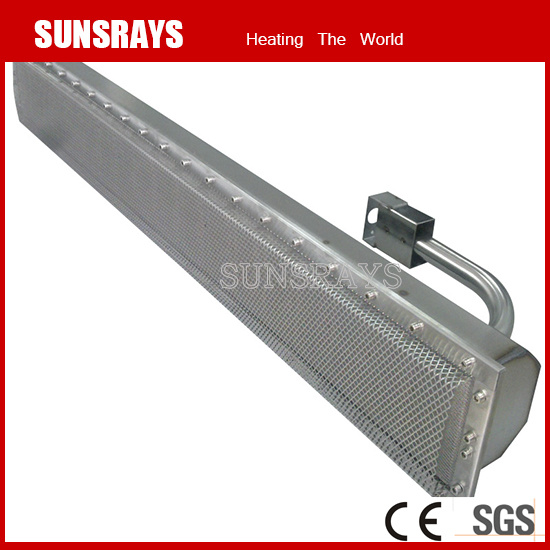

Product Description
Everywhere where electrical resistance heating is not possible or too extensive but optimum heat distribution at lowest emission is required you can find SUNSRAYS® Infrared gas burners in use. Using high-quality stainless steel for the entire gas burner the whole facility is extremely light and sturdy at the same time.
Available in output ratings of 3500 to 8500 kcal
Natural gas and propane gas supply possible
Version as side or as back operating gas connection
Deliverable with flame control and rapid shut-down which responds if burner extinguishes
| Dimension | Weight | Gas consumption | Power | Gas input pressure |
| 580mm x 142mm | 4.5-5.5kg | 0.4~0.85kg/hr | 4~9.5kw/hr | 3~50kpa |
Work characteristics:
Safety: The 2.8 kPa low pressure natural ejector way premixed, more secure and reliable.
Efficient: Imported ceramic plate heat storage capacity, wide adjustment range, good radiation effects; its surface temperature may be in the range of 475 to 950 degrees Celsius adjusted to better carry out the coating operations.
Energy Saving: 1.63KW monolithic ceramic plate heating power, 0.12kg / hr monolithic ceramic plate ultra liquefied gas consumption.
Environmental protection: the entire system COX, NOx emissions below international standards related industries (in the standard system configuration and use of environment).
Wide range of applications: the option of using natural gas, liquefied petroleum gas, artificial gas and other gas.
Accurate control: drive, actuators and butterfly valves, furnace temperature throughout the system, PLC or OPTO22 central control module for precise control of the combustion.
