Prod Model: |
TC4960 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
Amplifier Combined |
Used For: |
Professional |
Conductive Mode: |
D |
Sound Channel: |
4.1 |
Voltage: |
100V-240V |
Output Number: |
2ohm/4ohm/8ohm |

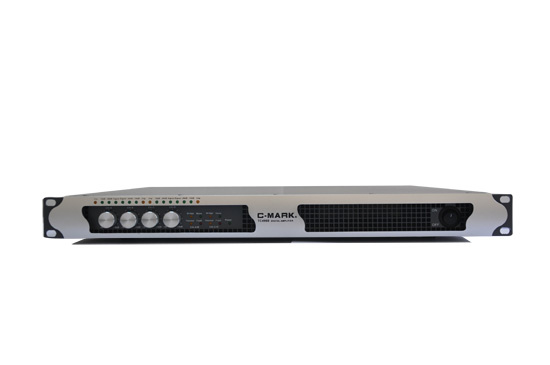

Product Description
Features
Smarter Unit:
Based on Pulse Width Modulation (PWM) technology which has been used for over 30 years in power supply and converter, adopt complete digital circuit PWM for high reliability, smaller sizes, less weight
Higher Efficiency:
Its efficiency is nearly independent from output level while other common amplifiers can get max efficiency only at biggest output. The overall electric energy convert efficiency is more than 80%.
More Accurate Sound:
Crystal clear high frequency, tight and strong low frequency, accurate sound reproduction, professional design ensure great specifications such as distortion, frequency response, convert rate, power supply band width and damping factor. This TC series amplifier adopts higher frequency convert to obtain high resolution of sound signal.
More Comprehensive Protection:
This Series amplifier can prevent from and correct every possible fault, can supply powerful output, safely working and long time reliability.
1. Intelligent temperature controlled fans
2. Temperature Protection
3. Short-circuit, Over current Protection
4. Direct Current Protection
5. Over/under- Voltage Protection
Wide Applications in various venues:
Together with other C-Mark digital audio products such as digital mixer, network audio platform, to make up digital audio systems suitable for various applications.
Key Specification:
TC4960
8Ω Rated Output Power(EIAJ THD=1%, 1kHz): 4× 1200W
4Ω Rated Output Power(EIAJ THD=1%, 1kHz: ) 4× 2100W
2ΩRated Output Power(EIAJ THD=1%, 1kHz): 4× 3500W
16ohm Bridged Output Power(EIAJ THD=1%, 1kHz): 2× 2400W
8ohm Bridged Output Power(EIAJ THD=1%, 1kHz): 2× 4200W
4ohm Bridged Output Power(EIAJ THD=1%, 1kHz): 2× 7000W
RMS Output Voltage(THD=1%, 1kHz): 97V
Upward Slope(1kHz, LP Filter): 50V/us
Input Sensitivity(Rated Power, 1kHz): 1Vrms
THD(10% Rated Output Power, Typical): 0.05%
Measurable IMD(10%Rated Output Power, Typical): 0.05%
IMD(10% Rated Output Power, Typical): 0.05%
Crosstalk(1kHz, Typical): -70dB
Frequency Response(10% Rated Output Power, 8Ω): 0~-2dB
Input Impedance(Balanced): Balanced 20kΩ, Unbalanced 10kΩ
Damping Factor(100Hz, 8Ω): ≥ 200
S/N(A Weight, 20Hz-20kHz): ≥ 105dB
Power Supply: AC~100-240V (50-60Hz)
Protection: Overheat Protection\Temperature Power Control\Output Current Control
Overload Protection\DC output Protection
Dimension(mm): 483× 370× 44
Net Weight: 8.15kg
Always regarding innovation as the basis for enterprise development, Shenzhen Bao Ye Heng Industrial Development Co., Ltd founded in 1993 with registered capital of RMB 22 million, has focused on digital professional audio sound reinforcement systems R&D, manufacturing, sales and services.
Bao Ye Heng is one of the pioneers as well as a faithful practitioner in China professional audio industry. The founder of the company has engaged in the professional audio industry, and has always been focused on this area for more than 30 years since 1975.
Bao Ye Heng has been the Director Member of China Entertainment Technology Association, China Audio Industry Association and China Recording Association, we are also the Vice president units of Industry Association of South China Entertainment Equipment.
"Quality for survival, innovation for development" is what Bao Ye Heng always adhere to the concept.
In the 21st century, Bao Ye Heng took the lead in passing the ISO9001: 2000 international quality management system certification and QC080000 international standards of green certified production systems in the industry. Bao Ye Heng factories are equipped with the most advanced manufacturing facilities such as SMT, ATS, wave soldering machine strictly ad-hearing to all European and American testing standards. And the products have passed China CCC, European CE and RoHS certification.
Bao Ye Heng has complete with full range of various products, from normal loudspeakers to large active line arrays; From conventional analog amplifier to the multi-channel high-power digital amplifier; From analog signal processing equipment to digital network signal transmission processing equipment; From 6 channel Mini mixer to 36 channel Super mixer; From handheld wired microphone to wireless microphone; From PA system to conference system, nearly a thousand kinds of products. Started the first of its kind in the industry in China, Bao Ye Heng can provide professional comprehensive solution for users of PRO audio systems.
Bao Ye Heng digital amplifier features high efficiency, energy saving and environmental protection concept, variety, excellent sound quality, safe and reliable. With dozens of models of DSP digital amplifier, mini digital amplifier, multi-channel digital amplifier, integrated network digital amplifier.
AUDIONET network audio platform have revolutionized the professional audio application mode. Not only powerful, but also the use of full compliance with international standards, with independent intellectual property rights RS1200 operating system, the bilingual interface, operation is very simple, cost-effective.
Bao Ye Heng set up a worldwide marketing network. Bao Ye Heng currently has exported to more than 70 countries, such as the U. S., UK, Germany, the Netherlands, Russia, Brazil etc with some OEM cooperations from renowned brands, while has more than 500 distributors throughout China Mainland.
Bao Ye Heng products have been widely used in sports stadiums, theaters, indoor and outdoor entertainment, KTV rooms, and many large domestic and international video conferencing projects. Bao Ye Heng accomplishments include being the audio system used at Best off tour 2010 in Boskovicky beh in Czech Republic, Beijing Olympic Games tennis center (2008), Centro Cristiano Los Pinos Church in Cucuta Colombia (2007), China Aerospace Control Center(2001), China Central Television(2000), the Handover Ceremony of China- Macao(1999), China High & New Technology Exhibition(1998) etc.
You can easily find Bao Ye Heng at the world's famous audio exhibitions: USA NAMM show, ProLight+Sound Frankfurt Show, PALM Beijing expo, PALME Dubai Show, South-East Asia PALME show, PALME India, ProLight+Sound Shanghai Show, and London Plaza show, etc.
