| Prod Model: |
TP4130 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Professional Amplifier Speaker |
| Function: |
Pre-amplifier |
| Tube Type: |
Tube Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Output Number: |
8 |
| Used For: |
Professional |
| Conductive Mode: |
AB |
| Usage: |
Hi-Fi |
Product Description
Switching Power Amplifier, Quality product with good price!
15 years experience on professional audio industry.
Loudspeaker, Line array speaker system, Power amplifier, PA system, Karaoke system, Console mixer and signal processor are covered among TASSO product professional audio line. Most are CE and RoHS certified.

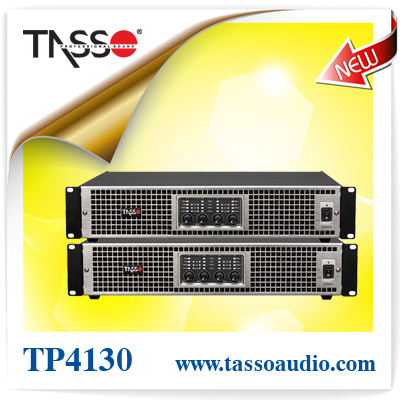

Using the most internationally advanced and efficient SMPS and CLASS TD power amplifier circuit, TP4130 was designed to a high-powered performance-based power amplifier.
Adopting the efficient and numerous tempered CLASS TD amplifier circuit, offering the 10000W (4Ω Bridged) huge output in a very limited 2U space, this kind of CLASS TD amplifier is close to the efficiency of CLASS D amplifier and it represents the highest technology of the industry. TP 4130 power amplifier adopts the patented design high quality porous-bronze heat sink, which processes the advantages of rapid cooling and without energy storage. What's more, this kind of copper heat sink can effectively ensure this highly efficient amplifier work in a low temperature under variety of harsh environment. TP 4130's switching power supply is used the R SMPS technology, which has stable and efficient performance and ensure the stable output under a variety of voltage fluctuations from 190V to 250V, so that the TP 4130 amplifier can maximum meets various needs. The power transformer is a Teflon wire, which ensure the inside transformer can be work normally and efficiently under the high temperature.
TP4130 power amplifier has eight sensitivity and compression modes for alternative. Light weight, small size, superior sound and powerful make it naturally become a darling of high demand night clubs and mobile functions.
All the technologies above TP4130 has broken the consensus of Black Swan Law of "high power with poor sound quality" in the PRO audio field, so the sound of TP4130 has reached the standard of professional HIFI's CLASS AB power amplifier_mellow, sweet and clean, achieve the perfect combination of sound and power.
Contact information
Tel: +86-20-39141508
Fax: +86-20-31190966
Website: www.tassoaudio.com
|
Model |
TP4130 |
|
8Ω stereo power(RMS) |
4× 1300W |
|
4Ω stereo power(RMS) |
4× 2200W |
|
2Ω stereo power(RMS) |
4× 2400W |
|
8Ω Bridged Monon power |
2× 4400W |
|
4Ω Bridged Monon power |
2× 4800W |
|
Frequency Response |
20HZ~20KHZ |
|
THD+N(Rated power; 4Ω /KHZ)% |
0.1% |
|
Signal Noise Ration (dB) |
110dB |
Amplifier gain selectable
(all channel)-real-panel swithches |
23, 26, 29, 32, 35, 38, 41, 44dB |
|
Input connectors(per ch) |
3-Pin XLR, electronically balanced |
|
Input Impedance |
20KΩ Balanced
10KΩ UnbaInaced |
|
Output Connectors |
Speakon Connectors(NEUTRIK) |
|
Power Requirement |
200-240V-50-60HZ |
|
Minimun power-up voltage, 220V |
180-260V-50-60HZ |
|
Dimension HWD(mm) |
95× 483× 378 |
|
Shipping HWD(mm) |
145× 575× 555(0.05CBM) |
|
NW/GW(Kg) |
13.5/17 |
