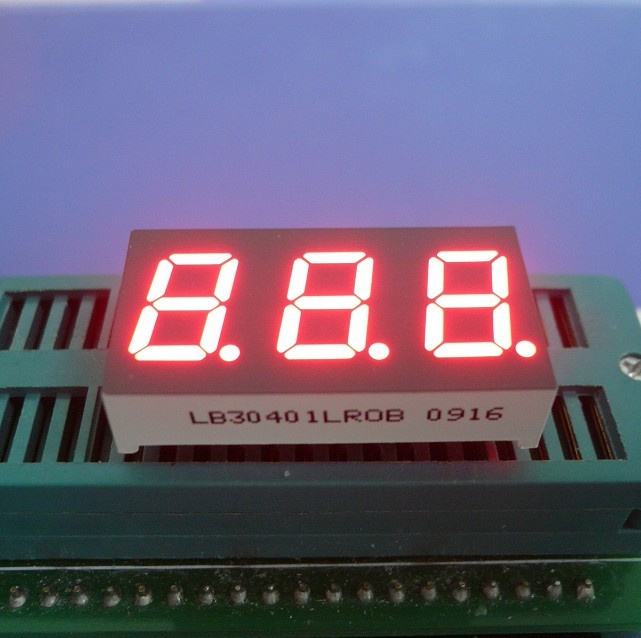

Super Bright Red 3 Digit 0.40 Inch 7 Segment LED Display

Super Bright Red 3 Digit 0.40 Inch 7 Segment LED Display
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 500/Piece
Pay Type: T/T,Western Union
Prod Model: LB30401LR0B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Type: Segment LED Display
Application: Home Application
Certification: RoHS
Display Function: LED Display
Pixel Pitch: 0.40 Inch

Product Description

Super Bright Red 3 Digit 7 Segment Led Display Common Cathode 0.40 Inch

Product Description:

Character height: 0.4"( 10.16mm)

Outer dimensions: 30.1 x 16 x 7 mm

Polarity: Common cathode

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

ParameterSymbolRatingsUnit
Forward Current(per dice)Ipm20mA
Reverse Voltage(per dice)Vr5V
Power Dissipation(per dice)Pm80mW
Operating Temperature RangeTopr-40~+85ºC
Storage Temperature RangeTstg-40~+85ºC
Solder Temperature(3 sec)Th260ºC
Code:R-Super Bright Red
ParameterSymbolConditionMinTypMaxUnit
Forward Voltage(Per dice)VfIf=20mA1.8
2.5V
Reverse Voltage(Per dice)VrIr=10uA5

V
Luminous Intensty(Per dice)IvIf=20mA50
60mcd
Spectrum With Of Half ValueλIf=20mA
20
nm
Wavelength DλIf=20mA630
635nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25ºC

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS compliant


Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on .


Shenzhen Guangzhibao (Light-Bo) Technology Co. Ltd is specialized in LED products, including LED 7 segment numeric displays, alphanumeric LED displays, DOT-matrix LED Displays, SMD LEDs, LED lamps, LCD backlights, LED light bar, bar gragh arrays and LED direction indicator displays and more.

We offer top quality products at competitive prices to meet different requirement for industry applications. We introduced computerized operation system and complete QC system. Key raw materials are sourced from the US, Japan and Taiwan area, plus, we utilise an array of advanced production equipments from ASM and Risen, such as automatic dice bonding and wire soldering machines. We specialise in offering series of optoelectronic displays in pure green, pure white and ultra blue. All of our products comply with the RoHS Directives. Monthly capacity reaches 3, 000, 000PCS.

We have been in LED industry for more than 12 years. With more than 10 years OEM and ODM experience, our R&D engineers are at hand for your customization requirements. Samples can be ready in just 10-15 days. Contact us now!
