Soft Serve Ice Cream Machine/Frozen yogurt machine S230
The Newest Machine of Sumstar! ! ! !
Specifications:
1, CE certification
2, Both hopper and cylinder have Pre-cooling system
3, Mix-low alarm function
4, Rest time function
5, Counter
6, spring handle
7, Air cool
Brief Description of Sumstar ice cream machine:
Cylinder: 1.5L
Mix Hopper: 9.5L
Capacity: 40L/H
Refrigeration system: 3750BTU/hr, R404A
Pre-cooling system: 210BTU/hr, R134A
Power Type: 220V/50Hz/60Hz
Beater Motor: 550W
Installed Power: 3.2KW
Agitator Power: 15W
Fan Power: 130W
N. W: 150KG
G. W: 170KG
Product Size: 520*840*870mm
Carton Size: 870*640*1080mm
Detail Description of Sumstar ice cream machine:

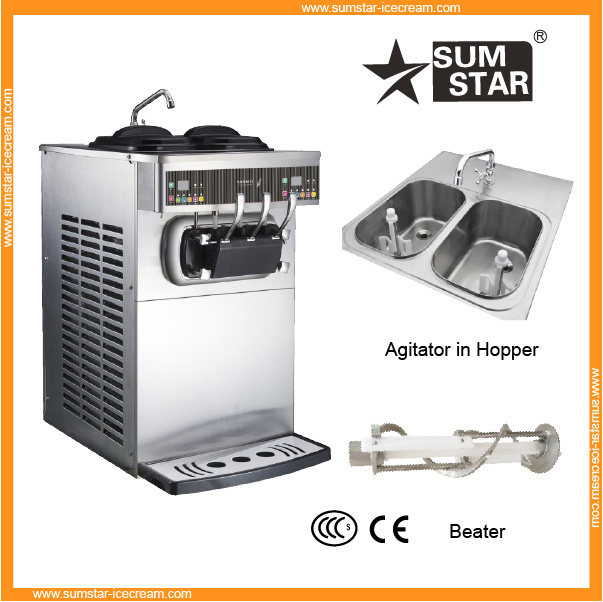

SUMSTAR series soft serve Ice-cream machines, which are based on the Australian advanced
Technology and newly developed by Sumstar, are suitable for all kinds of Ice-cream powder
And milk, can be applied to the Ice-cream shops, bars, bakeries, restaurants and other premises.
1. Beater - Food grade stainless steel beater
2. Silence- Mute function, suitable for all kinds of high-end places
3. Dispense space- 10CM dispense space, which can meet the needs of big cups or decoration of cakes
4. Control system- Upscale blue screen, easy to see the running status.
5. Agitator- The agitator in the hopper can keep the consistence of the ice cream liquid, work well with pre-cooling.
6. High expansion rate- with high-precision configuration, even without air pump, the overrun could be 40%.
7. Standby function- Standby function for both hopper and cylinder, ensure the safty and hygiene of the Ice-cream liquid.
8. Continuous discharging ability- Ensure continuous discharge even during the peak hours.
9. Mix low alarm function- Mix low alarm function for both hopper and cylinder, effectively lower the rate of frozen cylinder.
10. Imported core accessories-Select and use world-famous ASPERA compressor, DANFOSS expansion valve etc, effectively ensure the service life of the machines
|
Cylinder |
1.5L*2 |
|
Hopper |
9.5L*2 |
|
Machine Dimension(mm) |
520*842*870 |
|
Packing Dimension(mm) |
550*872*970 |
|
Refrigeration system |
3200BTU/hr,R404A |
|
Pre-cooling system |
416BTU/hr,R134a |
|
Power |
3.2kw |
|
Beater motor |
0.55kw |
|
Power specification |
220V/50hz,60hz |
|
Capacity |
30-35L/hr |
|
N.W. |
150kg |
|
G.W. |
170kg
|
