Professional OEM Manufacturer For Air Conditioner, CE CB SASO SONCAP RoHS Certifications
ISO9001 Passed
NINGBO AKL ELECTRIC Co., Ltd is a professional manufacture of Air Conditioner equipment.
Air Conditioner Feature&Function
1. Capacity: 9000---18000BTU
2. COP/EER: 3.6/3.2
2. R22, R410A
3. Mirror air conditioner

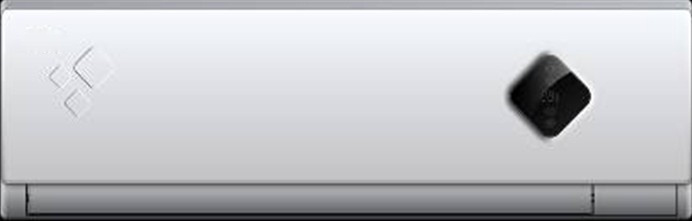

Split wall mounted air conditioner
1) Multi-angle air intake
2) with LED and VDF display.
3) Sleep mode
4) 24-hour timer
5) Independent dehumidifying function
6) Removable & Washable Panel, Color Panel
7) Auto recovery after power resumption
8) Highly efficient, largely saving electricity consuming.
9) World famous compressor with high quality and efficiency
10) Super wide angle, wind coming from further distance and three dimensions
11) Noisy suppressing wind wheel design
12) Newly remote controller with full function
| BTU | 9000BTU | 12000BTU |
| Model | KF(R)-25GW | KF(R)-35GW |
| Voltage/Frequency(V/HZ) | 220(110)/60(50) | 220(110)/60(50) |
| Capacity | Cooling | 2500W | 3500W |
| Heating | 2600W | 3600W |
| Rated input power(W) | Cooling | 940 | 1320 |
| Heating | 910 | 1260 |
| Moisture removal(IL/H. r) | 0.85 | 1.30 |
| EER for cooling(W/W) | 2.65 | 2.65 |
| EU energy class | C/D | C/D |
| Refrigerant | R22/R410A | R22/R410A |
| Air flow (m3/hour) | 420 | 520 |
| Noise indoor/outdoor(dB(A)) | 39/53 | 41/53 |
| Net Dimensions | Indoor unit | 220*250*745 | 220*250*745 |
| Outdoor unit | 290*490*650 | 315*540*765 |
| Packing Dimensions | Indoor unit | 280*320*800 | 280*320*800 |
| Outdoor unit | 325*600*725 | 360*625*820 |
| Weight Net/Gross | Indoor unit | 9/10.5 | 9.5/11 |
| Outdoor unit | 27/29 | 36/40 |
| Container Qty (20/40/40HQ)Pcs | 135/280/310 | 112/230/260 |
| 18000BTU |
| KF(R)-50GW |
| 220(110)/60(50) |
| 5000W |
| 5300W |
| 1890 |
| 1860 |
| 1.80 |
| 2.65 |
| C/D |
| R22/R410A |
| 750 |
| 48/55 |
| 200*288*1025 |
| 315*540*765 |
| 280*355*1075 |
| 360*625*820 |
| 13.5/15.5 |
| 40/45 |
| 95/200/225 |
NINGBO AKL-Histar Electric Co., Ltd was founded in 2004. Main products consist of various electric appliance, and more than 70 kinds in all. with complete specifications, novel models, products are extensively applied to home and commercial department. Our products export to the whole world. Europe, South & North America, Southeast Asia, Africa and Middle East. Our factory obtains reliance and praise from customers and societies with excellent quality and competitive price.
Our company has passed CE, RoHS. COC, SAA. SONCAP. UL. SASO Certificate. For purpose to control products' quality well, we develop a whole set of standard testing equipment by ourselves.
We always insist on the management aim of "quality first, customers supreme", strive for top grade products and offer first rate service. We sincerely welcome the old and new customers to visit our factory, negotiate business, cooperate extensively and achieve common prosperity.
