Prod Model: |
ADL-SP |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
Vacuum Tube Size: |
58*1800/47*1500mm |
Approved By: |
CE, LFGB, ISO, Solar Keymark, SRCC |
Heat Pipe: |
Copper |
Structure: |
Separate Type |
Pressure: |
Pressurized |
Interior Material: |
Stainless Steel |
Collector Components: |
Glass Vacuum Tube |
Certification: |
CE |
Product Description

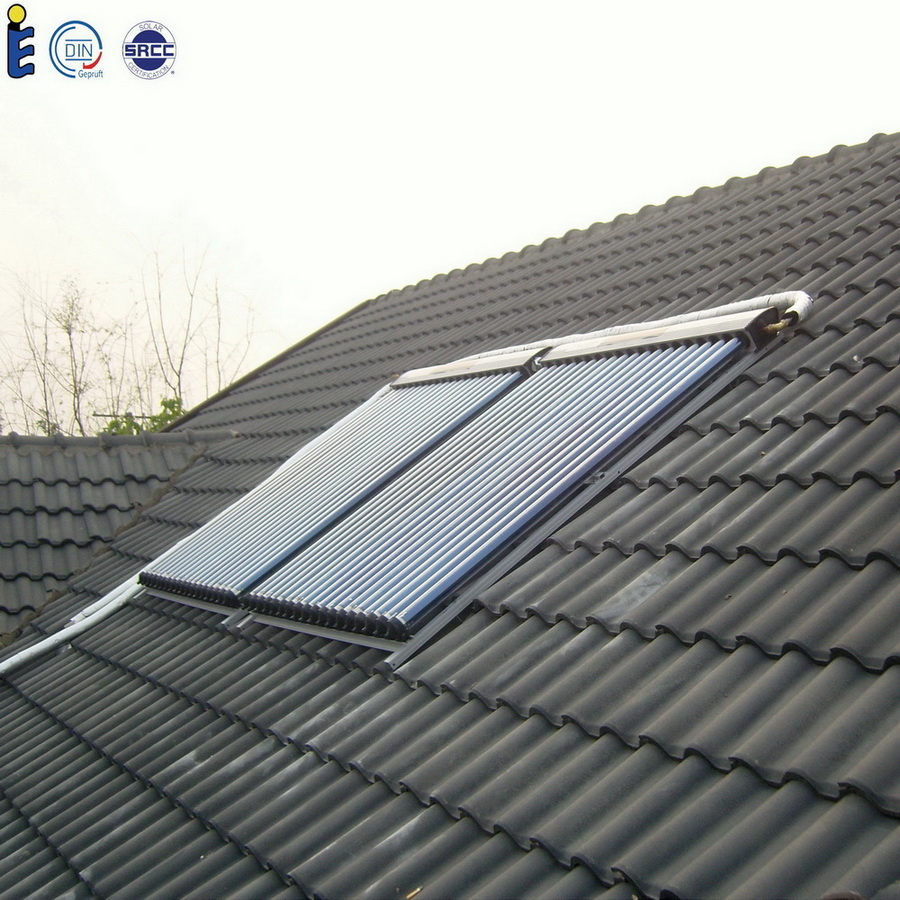

Spilt Solar Water Heater:
1. Inner water tank: SUS 304-2B food grade stainless steel
2. Outer water tank: Color steel
3. Bracket: Color steel /aluminum
4. Insulation layer: Polyurethane foamed 55-65mm
5. Vacuum tube: 58*1800/47*1500mm
6. Fasteners: Stainless steel screw
7. Sealing ring: Polymer silicone rubber
8. Reflective angle: 45° Golden angle
Spilt Solar Water Heater |
Evacuated tube |
Len(mm) |
1800mm |
Dia(mm) |
Φ 58 |
Quantity(pieces) |
24/36/48/60 |
Area(m 2 ) |
1.50/2.29/3.00/4.8m 2 |
Solar collector |
Heat Pipe |
Red copper TU2+water; transfer power: > =150W; Working pressure: 0.6Mpa |
Evacuated tube |
Borosilicate glass 3.3; Structure: Vacuum Degree: P< =5*10-4 |
Frame |
Aluminum Alloy, Thickness: 2.0mm |
Daily Efficiency |
> 65% |
Pressurized water tank |
Capacity |
200/300/400/500L |
Insulating Layer |
Polyurethane foaming, Thickness: 50mm |
Outer Shell of Tank |
Color Steel Plate(enamal white), Thickness: 0.4mm |
Inner tank |
SUS304, 2.0mm thickness |
copper coil (diameter*thickness*length)(mm*mm*m) |
|
200L |
300L |
400L |
500L |
Upper coil |
12*1*12 |
12*1*15 |
12*1*18 |
12*1*18 |
Lower coil |
12*1*15 |
12*1*18 |
12*1*24 |
12*1*24 |
Working station |
Circulation pump Brand: Wilo |
Controller |
Expansion vessel 8/12L |
Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.
Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.
Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.
Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.
Under the leadership of our general manager and engineers, our company will be more prosperity.
Hope we can cooperate with people all over the world. And lead people a Green-energy life.
