| Prod Model: |
TJSUNSP 58-18-18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
Solar Keymark /SRCC/ Sabs |
Product Description
Solar Keymark SRCC SABS Approved.
The characteristics:
1. This type product can be combined with the building and environment perfectly.
2. High quality and perfect design
3. This kind of product loss more few energy than general one, because the water tank can be installed in room.
4. The electric heater and the recycle system can work automatically
5. The capacity of tank: 150L/200L/300L
6. The hot water can be supply automatically, more comfortable.

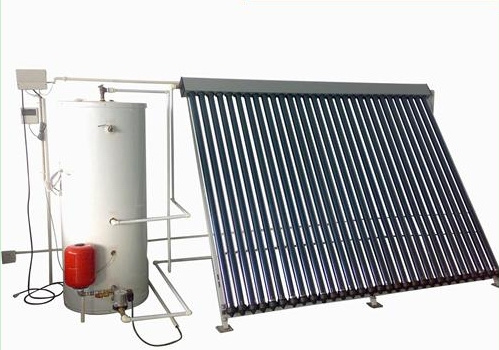

The main components of product
1. Solar collector
2. Solar expansion vessel
3. Solar station including circulation pump, manometer, safety valve, etc.
4. Automatic controller
5. Insulating tank
Features:
Borosilicate glass according to ISO3585: 1991; Transmittance of borosilicate glass: 0.92. Absorbance of solar selective absorptive coating: 0.94; Hemispherical emittance: 0.08;
Getter according to GB/T9505-1998.
Start-up temperature: No more than 25.
Start-up time: No longer than 2 minutes under normal sunshine.
Low temperature resistance: No breaks at -30.
Heat impact resistance: No damage after over 3 time's alternative impact of cold water below 25 and hot water over 90.
Pressure resistance: Can withstand 0.6Mpa.
Hail resistance: No damage by the impact of 25mm diameter hail.
| Solar Collector ( Heat pipe series) |
| Model | TJH-58/1800-15-C | TJH-58/1800-18-C | TJH-58/1800-20-C | TJH-58/1800-24-C | TJH-58/1800-30-C |
| Size(M) | 1967*1190*132 | 1967*1415*132 | 1967*1565*132 | 1967*1865*132 | 1967*2315*132 |
| Absorption area(M2) | 1.2 | 1.44 | 1.6 | 1.92 | 2 |
| Length of Tube | 1800mm |
| Outer Diameter of Tube | 58mm |
| Efficiency | 0.88 |
| Losses | 2.4 |
| Tube quantity | 15 | 18 | 20 | 24 | 30 |
| Manifold | casing material:Aluminum Alloy;thickness: 1.8mm;Insulating layer: rock wood or foam |
| Heat pipe | pure red copper TU1+water;transfer power:>=150W;Working pressure: 4Mpa;welding pressure: 4 Mpa |
| Heat header | 24mm |
| Dust Ring Gasket | Silicon Rubber |
| Vacuum Tube | Tri-elemant tube;High boron and silicon content 3.3;Structure:Gradual change SS-AL-Nx/Cu selective absorption coating;Vacuum Degree:P<=5*10-4;Service life:15years |
| Mounting Frame | Aluminum Alloy,thickness:2.0mm |
| Rack Insert | ABS |
| Dimension(CBM) | 0.28 | 0.32 | 0.35 | 0.39 | 0.53
|
Jiaxing Tjsun New Energy Co., Ltd., is a high & new technology company which is specialized in manufacturing solar energy products, especially the solar water heaters, with ten years' experience in this line. Tjsun is a global company focused on providing simple and effective solutions for families and businesses concerned about the effects of climate change and rising energy costs. Tjsun solar thermal systems are widely used in both residential and commercial applications to provide hot water, space heating, industrial hot water and even air-conditioning. In 2013, TJSUN Energy spent 200000000RMB to build a production line for Foam glass, Insulation material for Petrochemical and commercial construction use.
Tjsun has a high reputation with the strategy of technological products, normative management, international standard and star-class service. Jiaxing TJSUN New Energy Co., Ltd. Has won quite a good market share due to excellent quality and competitive price. In the coming years, Jiaxing tjsun New Energy Co., Ltd. Would like to cooperate with the customers from all over the world and make more people share the benefits which the solar energy brings.
