| Prod Model: |
LUXURY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness Of Inner Tank: |
1.2mm |
| Tube Size: |
58*1800 |
| Tube No.: |
12 |
| Brand: |
Imposol |
| Warranty: |
8 Years |
| Max. Capacity: |
100-200L |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
SRCC, SABS, Solar Keymark |
Product Description

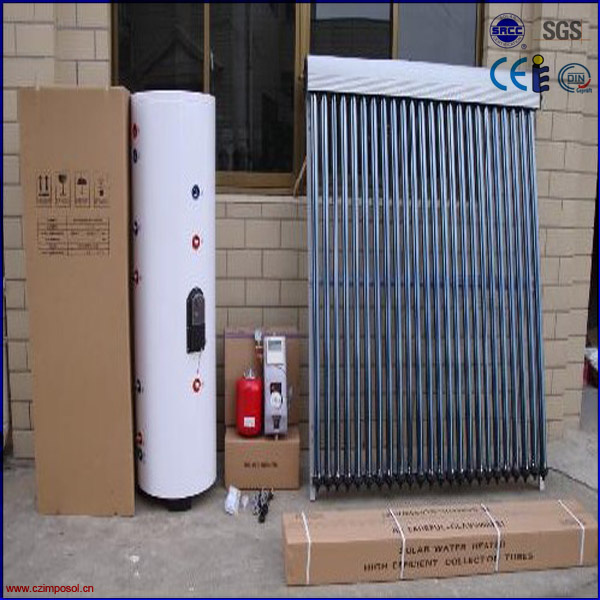

Split solar water heater
Product name: Split solar water heater; Solar water heater; Separated solar water heater.
The system of split solar water heater is consist of water tank, solar collector, working station or controller.
1) Use patent heat pipes, it is sure that no water goes into the tube and there are no incrustation, no bursting. Moreover, water can go upward at anytime.
2) Use solar collector technology, it is sure to be anti-freezing in winter, and it could also work in the bad weather with high efficiency.
3) Use the electric heating water tank specially for solar water heater.
4) Double energy: You could use hot water at any time in a day because solar water heater also has an electrical heating system for auxiliary heating.
5) Automatically intelligent control and management all day
Specifications:
1) Water tank (interior): Porcelain enamel
2) Manifold: Stainless steel/aluminum alloy
3) Absorptive tube: New trivalent element heat tube
4) Collector tube dimensions: 58mm x 1.8m, 47mm x 1.5m
5) Water capacity: 100L, 150L, 200L, 250L, 300L, 350L, 400L, 450L, 500L
6) Pressure: 6-8 bar
| Model | Capacity | Heat pipe vacuum tube solar collector | Pump station | Expansion tank | Connection
fittings |
| Model | Quantity |
| IPSV100-NC/SC | 100L | IPRB A 581810 | 1 | SR881/882
SR961/962
SR971/972
SR981/982 | 5L | Copper tee air vent 22mm couple
P/T valve
Check valve |
| IPSV150-NC/SC | 150L | IPRB A 581810 | 1 | 8L |
| IPSV200-NC/SC/DC | 200L | IPRB A 581820 | 1 | 12L |
| IPSV250-NC/SC/DC | 250L | IPRB A 581825 | 1 | 12L |
| IPSV300-NC/SC/DC | 300L | IPRB A 581830 | 1 | 18L |
| IPSV400-NC/SC/DC | 400L | IPRB A 581820 | 2 | 18L |
| IPSV500-NC/SC/DC | 500L | IPRB A 581825 | 2 | 24L |
