| Prod Model: |
CY-7690 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Video Output: |
2 RCA |
| Audio Output: |
L/R Channel |
| Voltage: |
12/24V |
| Placement: |
Dashboard |
| Combination: |
GPS |
Product Description
For auto air-conditioner

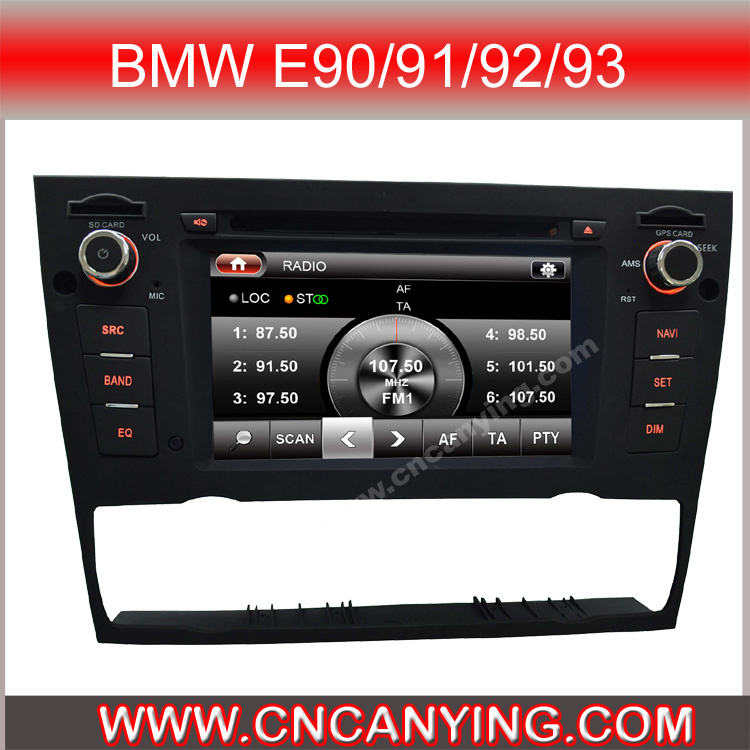

BMW E90-(05-present)
BMW E91-(05-present)
BMW E92-(05-present)
BMW E93-(05-present)
3G function optional
Dual Microphone,both in Front and in back
Dual IPOD,both in Front and in back
Rear USB
Digital panel:800*480 resolution
Phone book function (show name of mobile Tel No.)
2 DIN 6.2 inch special car DVD for Focus/Mondeo/S-max with bluetooth phonebook
1.6.2" 16:9 Panasonic TFT LCD Monitor 800*480
2.Touch Screen with Graphic OSD display
3.SD card slots (Two SD card slots,one for GPS map,one for Multimedia)
Dual IPOD connector spported on front interface and on rear
USB connector on the rear part
Dual Microphone on the front and on the rear
4.Bluetooth with phonebook function
5.Dual zone:drive can listen to music while viewing the map
6.Compatible with divx/mp4/mp3/DVD/VCD/CD/CD-R/CD-RWetc
7.Built-in TV tuner (PAL/NTSC/SECAM)
8.Built-in FM/AM,50 preset radio stations
9.One channel video input,two channel video output,Two channel audio input,three channel audio output
10.4X45W audio output
11.Back rearview function
12.OSD Language:English/Francais/Espanol/Deutsch/Italiano
13.Built-in RDS
14.USB plug in rear.(option)
The following map of countries are available now:
EU MAP:Aaustria,Switzerland,Liechtenstein,Italy,Belgium,Netherlands,Luxemburg,France,Andora,
Monaco,Spain,Germany,Greece,Vatican,San Marino,Denmark,Finland,Norway,Sweden,Portugal,
Gibralter,Channel Island,England,Ireland,Lsle of Man,Northern Ireland,Scotland
GULF AREA:Saudi Arabia,Oman,Bahrain,United Arad Emirater,Qatar,Kuwait
OTHER MAP:America,Canada,Australia,Turkey,Russia,Brazil,Argentina,Chile are available
Menu Language&Navigation Voice:Arabic,English,Dutch,French,German,Italian,Portuguese,Spanish,Russian
GPS Features:
GPS resolution:800*480
band rate:9600
com 2
Map supported:Route66,TOMTOM,IGO8,DESTINATOR,Garmin,Finean,etc.
Operation system:Windows CE 6.0
Processor:SAM SUNG High performance processor S3C2440A-40,Max.main frequency 400MHZ.
EMS Memory:64MB SDRAM
Storage device:128MB NAND FLASH,Support SD Card
Display output:CVBS+S-VIDEO output.(Resolution:480*234) or simulation RGB output.
Audio output:Stereo output of CD tone.
GPS specification:Adopt SIRF STAR III 20 channel and excessive high sensitivity GPS receiving module REB-3310,Orientation sensitivity reach-159dBm,Orientation presicion<10M,Orientation time of cold boot is
42S,Orientation time of warm boot is 35S,Orientation time of hot boot is 1S.
Power specification:Connect car power DC12V,Current<500mA:Max power
Consumption:4.5W(12V/360mA),Normal power consumption 3W(12/250mA).
