| Prod Model: |
T-1588 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 2 Passive 8'' Speaker+15'' Subwoofer: |
Subwoofer Frequency Response 45 ~ 250Hz, +/- 3dB |
| Axial Sensitivity 1 W/ 1m 101dB: |
Maximum Spl @ 1m 127dB @ 10% Thd |
| Subwoofer Power AMP 1 X 300 RMS For Bass: |
Satellite Power AMP 150W X 2 RMS for Satellites |
| Active Protection Circuitry Opto-Limiter: |
Input Sensitivity 0.775V |
| Satellite Frequency Response 120 Hz~ 8kh: |
Axial Sensitivity 1 W/ 1m 101dB |
| Maximum Spl @ 1m 121dB @ 10% Thd: |
Nominal Impedance 4ohm |
| Low/MID Drive 1 X 8": |
Hf Drive 3/4" |
| Directivity 90" X 40": |
Crossover Frequency 2.5 kHz, 12dB Per Octave |
| Speaker Material: |
Wood |
| Usage: |
Stage/DJ |
| Structure: |
Bass Reflex Enclosure |
| Amplification Type: |
8'' Passive +Subwoofer Amplifier |
| SNR: |
Frequency Response: 45 ~ 250Hz, +/- 3dB |
Product Description

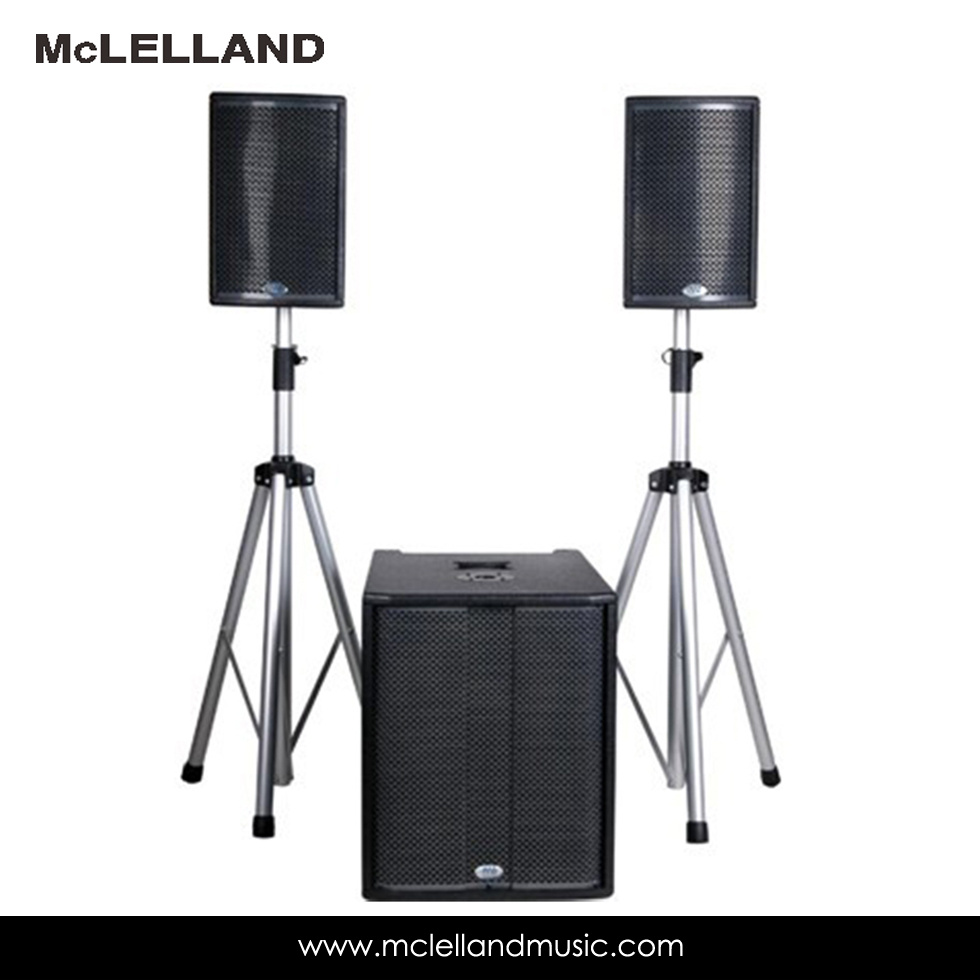

Speaker System(T-1588)
Features:
The T-1588 speaker system is a complete sound reinforcement solution consisting of two
8" two-way speakers and an active 15" subwoofer, to deliver the best ultra mate sound
quality. This system was designed for easy operation, like Mobile DJ, Live Band, Church. All
you have to do is set up the sound system components, connect the XLR right and left
signal cables, speaker cables and power cords and you're ready to load your sound in any
time & any place.
Specification:
Subwoofer
Frequency Response: 45 ~ 250Hz, +/- 3dB
Axial Sensitivity: 1 W/ 1M 101dB
Maximum SPL @ 1m: 127dB @ 10% THD
Bass Woofer
Subwoofer Power Amp: 1 x 300 RMS for bass
Satellite Power Amp: 150W x 2 RMS for satellites
Active Protection Circuitry: Opto-limiter, subsonic filter
Input Sensitivity: 0.775V
Connection: 2 x XLR input
2 x XLR through
2 x Speakon @ Satellite out
EQ: Low 75Hz +/- 10dB
Mid 1.3 KHz +/- 10dB
High 10 KHz +/- 10dB
Low Pass Turning Frequency: 50 ~ 500Hz -3dB
Satellite
Frequency Response: 120 Hz~ 8KHz, +/- 3dB
Axial Sensitivity: 1 W/ 1M 101dB
Maximum SPL @ 1m: 121dB @ 10% THD
Nominal Impedance: 4Ω
Low/Mid Drive: 1 x 8"
HF Drive: 3/4"
Directivity: 90"x 40"
Crossover Frequency: 2.5 KHz, 12dB per octave
HF Protection (Passive): Dynamic protection circuitry
Power Handing Capacity: 150W RMS
Connector: 1 x Speakon
|
Subwoofer |
|
Frequency Response |
45 ~ 250Hz, +/- 3dB |
|
Axial Sensitivity |
1 W/ 1M 101dB |
|
Maximum SPL @ 1m |
127dB @ 10% THD |
|
Bass Woofer |
|
Subwoofer Power Amp |
1 x 300 RMS for bass |
|
Satellite Power Amp |
150W x 2 RMS for satellites |
|
Active Protection Circuitry |
Opto-limiter, subsonic filter |
|
Input Sensitivity |
0.775V |
|
Connection |
2 x XLR input
2 x XLR through
2 x Speakon @ Satellite out |
EQ
|
Low 75Hz +/- 10dB
Mid 1.3 KHz +/- 10dB
High 10 KHz +/- 10dB |
|
LowPassTurning Frequency |
50 ~ 500Hz -3dB |
|
Satellite |
|
Frequency Response |
120 Hz~ 8KHz, +/- 3dB |
|
Axial Sensitivity |
1 W/ 1M 101dB |
|
Maximum SPL @ 1m |
121dB @ 10% THD |
|
Nominal Impedance |
4Ω |
|
Low/Mid Drive |
1 x 8" |
|
HF Drive |
3/4" |
|
Directivity |
90"x 40" |
|
Crossover Frequency |
2.5 KHz, 12dB per octave |
|
HF Protection (Passive) |
Dynamic protection circuitry |
|
Power Handing Capacity |
150W RMS |
|
Connector |
1 x Speakon |
