| Prod Model: |
Speaker Cable Audio Cable Video Cable (AWG) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jacket Color: |
White, Gray, Black, Yellow, Brown, Red,Transparent |
| Application: |
Telephone |
| Certification: |
CCC |
| Color: |
Red,Black,Green,White,Transparent |
| Type: |
Speaker Cable |
| Species: |
Speaker Cable |
| Wire Core Material: |
Bc/CCS/CCA/Cu/CCAM |

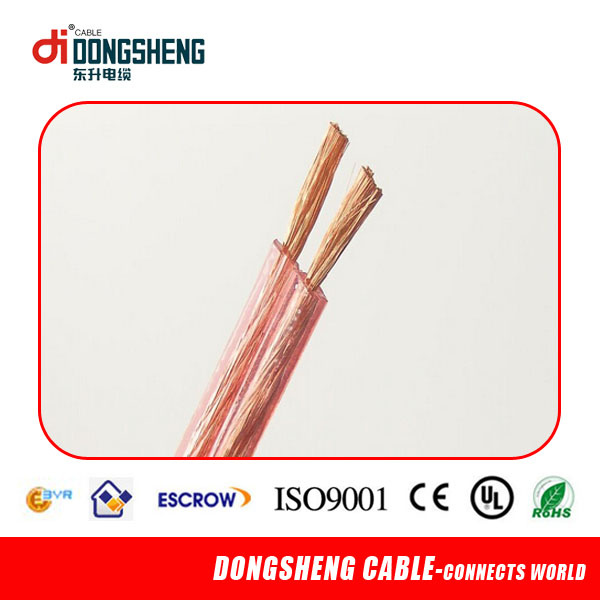

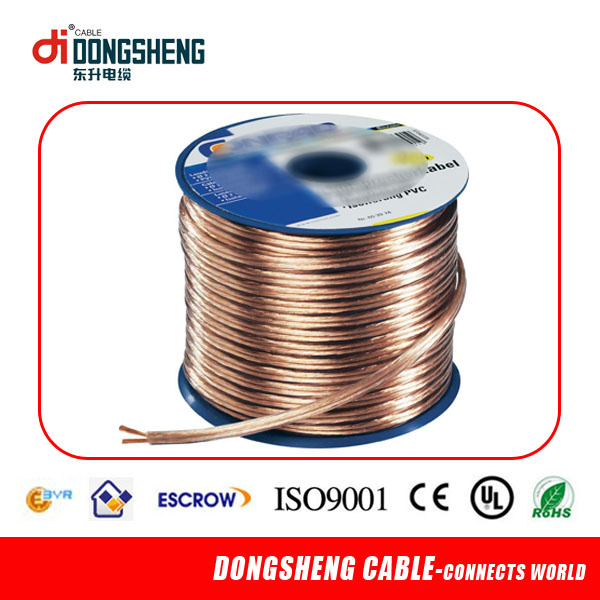

Product Description
Application:
Audio analogical signals
Used for installation in normal Indoor environments
Long distance high signal purity
Conductor
Stranded Bare Copper
Stranded Bare Copper &Tinned Copper
Insulation:
PVC (Black & Red Color) or PVC Transparent
Temperature Range:
In motion -10ºC till +70ºC
Nos. of Cores & Section(mm2) | Dimension mm | Insulation Resistance MOhm/KM | Operating Voltage V a.c. | Weight Kg/100mt |
2×0.50 | 2.40×4.80 | 200 | 250 | 2.1 |
2×0.75 | 2.50×5.00 | 200 | 250 | 2.9 |
2×1.00 | 2.60×5.20 | 200 | 250 | 3.2 |
2×1.50 | 2.70×5.60 | 200 | 250 | 4.4 |
2×2.50 | 3.50×7.00 | 200 | 250 | 7 |
2×4.00 | 4.60×9.20 | 200 | 250 | 11 |
| item | specification | Outer diameter |
| 2*0.35 | 11/0.20*2C | 2.0*4.0 |
| 2*0.5 | 16/0.20*2C | 2.2*4.4 |
| 2*0.75 | 24/0.20*2C | 2.5*5.0 |
| 2*1.0 | 32/0.20*2C | 3.0*6.0 |
| 2*1.5 | 48/0.20*2C | 3.5*7.0 |
| 2*2.0 | 64/0.20*2C | 3.8*7.6 |
2*2.5 | 80/0.20*2C | 4.0*8.0 |
| 2*4.0 | 80/0.25*2C | 4.5*9.0 |
| 2*0.35 | 44/0.10*2C | 2.0*4.0 |
| 2*0.5 | 64/0.10*2C | 2.2*4.4 |
| 2*0.75 | 3*32/0.10*2C | 2.5*5.0 |
| 2*1.0 | 7*19/0.10*2C | 3.0*6.0 |
| 2*1.5 | 7*27/0.10*2C | 3.5*7.0 |
| 2*2.0 | 7*36/0.10*2C | 3.8*7.6 |
| 2*2.5 | 7*46/0.10*2C | 4.0*8.0 |
| 2*4.0 | 7*73/0.10*2C | 4.5*9.0 |
| 10AWG | 7*24/0.20*2C | 5.0*10 |
| 12AWG | 105/0.20*2C | 4.2*8.4 |
| 14AWG | 70/0.20*2C | 3.8*7.6 |
| 16AWG | 65/0.16*2C | 3.2*6.4 |
| 18AWG | 41/0.16*2C | 3.0*6.0 |
| 20AWG | 26/0.16*2C | 2.6*5.2 |
| 22AWG | 16/0.16*2C | 2.4*4.8 |
| 24AWG | 10/0.16*2C | 2.0*4.0
|
