Prod Model: |
150L-300L |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max. Capacity: |
100-200L |
Structure: |
Compact Type |
Pressure: |
Pressurized |
Interior Material: |
Copper |
Collector Components: |
Flat-plate |
Composition: |
Collector |
Certification: |
CCC |
Product Description

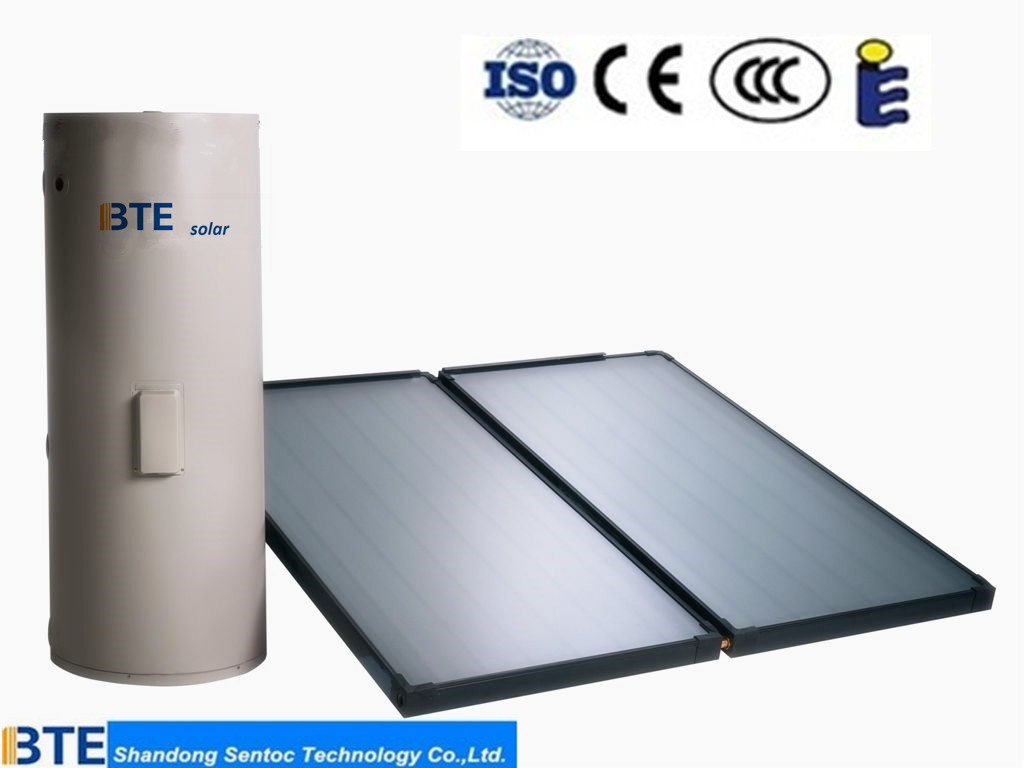

Pressurized Flat Panel Solar Water Heater
Technical data:
Model | Capacity (Liter) | Frame Angle | Flat plate panel | Inner Tank Material | Qty (set) |
size(mm) | Quantity | 20'ft | 40'hq |
PJF-150/0.6 | 150 | 25°C | 2000x1000 | 1 | Enamel | 51 | 126 |
PJF-200/0.6 | 200 | 25°C | 2000x1000 | 2 | Enamel | 42 | 84 |
PJF-300/0.6 | 300 | 25°C | 2000x1000 | 2 | Enamel | 18 | 36 |
Working principle:
There are two layers water tank, heat transfer fluid circulated between water tank and flat plate collectors naturally. Then it will be heated and transfer energy to water in inner tank.
Hot water from this kind of solar water heater is pressurized. It is easily installed on the house roof.
Bontel Advantages:
1. Flat plate collectors with high weather-proof selective absorbing film from full-automatic magnetron sputtering production line developed by Bontel;
2. Flat plate collectors with Bonding heat transferring technology and laser welding technology;
3. Flat plate collectors with high quality low-iron tempered glass with surface treatment to get high transmittance and low emittance;
4. Enamel inner tank with magnesium rod show excellent anticorrosion performance;
Dezhou JinHeng New Energy Co., Ltd. is located in China's sun city, DeZhou, is a professional solar energy heat utilization solution supplier, main products are: Flat solar collector, u-shaped tube solar collector products such as design, production and sales. Over the years has been committed to the industry, agriculture, living, building in areas such as solar energy heat utilization solution design and product research and development and productions
