| Prod Model: |
Lucky |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bracket: |
Aluminum Allow, Stainless Steel |
| Application: |
Water Heater |
Product Description
FEATURE:
1. Special high quality Insulated material to reduce the heat loss
2. Excellent workmanship to guarantee the decent appearance, change for your request
3. Long life span and easy operation.
4. This type of solar water heater can work in high pressure
5. It uses the heat pipe which can deliver the heat rapidly
6. The vacuum tube will not break in the winter for there is no water in it, even in the coldest area
7. Each vacuum tube works individually, so the machine will still at work in the event of occational vacuum tube breakag
8. Hot water with pressure make you bathe more comfortable
ADVANTAGES:
1. This type of solar water heater can work in high pressure
2. It uses the heat pipe which can deliver the heat rapidly
3. The vacuum tube will not break in the winter for there is no water in it, even in the coldest area
4. Each vacuum tube works individually, so the machine will still at work in the event of occational vacuum tube breakage
5. Hot water with pressure make you bathe more comfortable
|
Description |

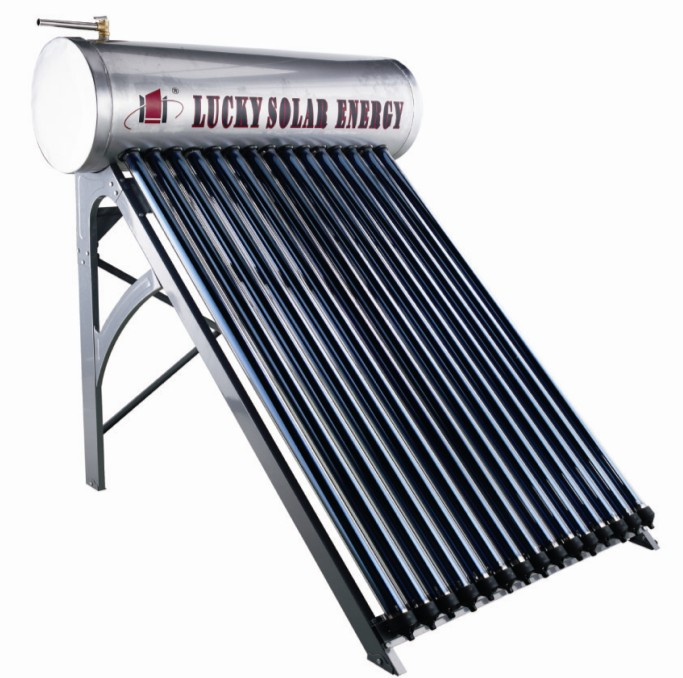

Heat Pipe Integrated Pressurized Solar Water Heater |
|
Material of out tank |
Stainless Steel |
|
Material of inner tank |
Food grade 1.2mm thickness SUS304-2BStainless Steel |
|
Tank insulating layer |
Imported polyurethane from Bayer Germany, 55mm thickness can conserve the heat for maximum 72 hours |
|
Tank Diameter |
480/370mm |
|
Max pressure |
Up to 6 Bar(tank pressure 9Bar ) |
|
Solar collector tube |
3.3 Borosilicate glass-Triple target.ALN/AIN-SS/CU |
|
Thickness of glass tube |
1.6mm |
|
Vacuum tube tightness |
P≤0.005 Pa |
|
Absorption |
as=0.93-0.96(AM1.5) |
|
Emission ratio |
εh=0.04-0.06(80C±5C) |
|
Idle sunning property parameters |
Y=220~260m2.C/KW |
|
Average heat loss coefficient |
ULT=0.6~0.7W/(m2.C) |
|
Bracket: |
Stainless steel 1.5mm |
|
welding: |
Argon arc welding |
|
fastening pieces: |
Made of stainless steel screw |
|
Structure of tank: |
7 holes.Magnesium bar,T/P valve,Limber hole,sensor hole,water inlet and outlet hole,electric heater. |
|
Heat conduct fin in the inner tube |
Single fin |
|
Heat Condenser diameter |
14mm |
