| Prod Model: |
ADL6038 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Vacuum Tube Size: |
58*1800 |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Unpressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CE |
Product Description

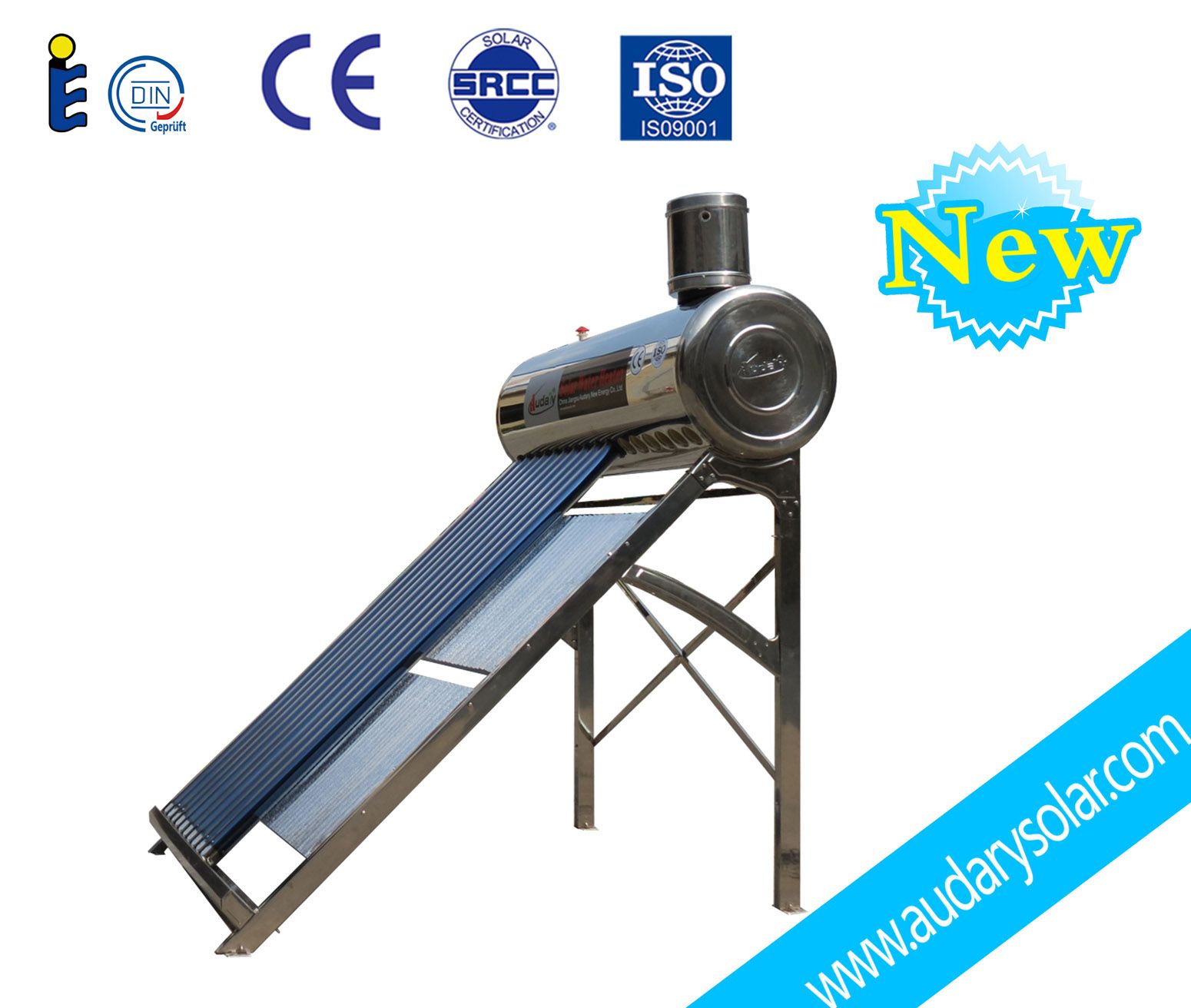

Solar Water heater, Stainless Steel Solar Water Heater, Solar Geyser, Solar Boiler
Evauate solar collector tube: Made of high-borosilicate glass, with aluminum absorption layer of magnetron sputtering
Speciation: 47-1500mm 58-1800mm
Stroge tanks: SUS304-2B imported food-grade stainless steel
Our tank material: Imported galvanized plate, FL-carbon board and colour-coated sheet
Thickness of insulation layer: 55-65mm and made through the computerized pressing and foaming of polyurethane as a whole
Bracket materials: Molded of high-strength galvanized sheet and electrostatic plastic-sprayed
Fasteners: Stainless steel screws
Sealing ring: Polymer 5silicone rubber
Reflective angle: 45°
Haet pipe material: Copper
Absorption Rate: ≥ 0.95± 0.02
Emission Rate: ≤ 0.20± 0.02
Vacuum Tightness: P≤ 5.0*0.0001PA
Idle Sunny Property Paramerers: Y=220-260. /KW
Average Heat Loss: Ult=0.6-0.7W(. )
It means the temperature in the solar heater tank is arrange from 50 to 95 degree.
It resist 25mm hail and the using life can last 15 years.
Please test the water temperature before using, in order to avoid scalding.
Instruction: CD and brochures to show you how to install it.
Certificates: Pass CE, ISO, CCCand patent certificates.
|
solar vacuum tube Size/mm |
Abosorber Area() |
Capacity(L) |
Loading Qty/Sets |
|
20GP |
40GP |
40HQ |
|
Φ58*1800mm*15 |
2.09 |
125 |
46 |
100 |
125 |
|
Φ58*1800mm*18 |
2.49 |
150 |
38 |
85 |
106 |
|
Φ58*1800mm*20 |
2.77 |
180 |
36 |
78 |
98 |
|
Φ58*1800mm*24 |
3.32 |
200 |
30 |
65 |
80 |
|
Φ58*1800mm*30 |
4.03 |
240 |
25 |
54 |
68 |
|
Φ58*1800mm*36 |
4.96 |
300 |
20 |
45 |
55 |
Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.
Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.
Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.
Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.
Under the leadership of our general manager and engineers, our company will be more prosperity.
Hope we can cooperate with people all over the world. And lead people a Green-energy life.
