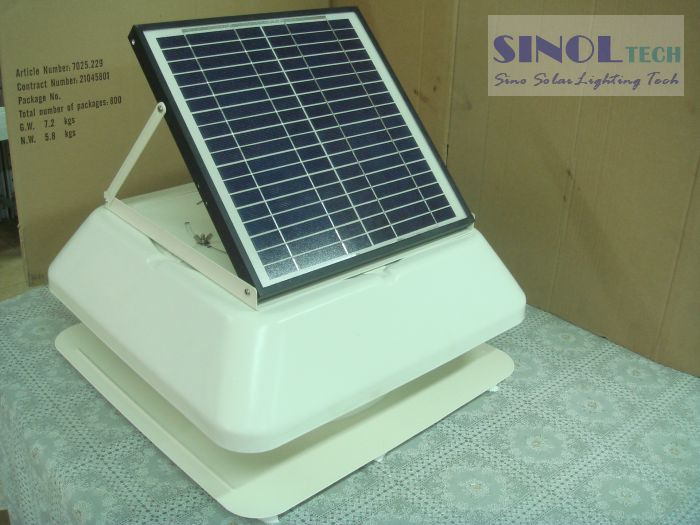

Solar powered roof exhaust fan with DC brushless motor and 15W ajustable solar panel
15 watt solar panel (365X365X25mm), 14 inch fan blade, Square shroud cover,
Host size: 530X530X300mm
Exhaust capacity: 1650CFM
Like traditional attic fans, Sinoltech's solar roof exhaust fan removes hot,
Stagnant air from your attic and allows your air conditioner to more efficiently cool the house.
What makes our solar fan even better is that it requires no public electricity, that means not
Only are the attic fan's operational costs zero but your installation works are easier.
Our solar fans blend seamlessly into your roofline and are extremely quiet, if it wasn't for the energy savings, you might forget they are there.
Function Descriptions:
1. Improving air circulation:
Taking advantage of the free & clean solar energy, This attic fan will pump out the interior heat & moisture to balance your house temperature, So as to provide a refreshing ventilation and more environmental-friendly surrounding, and to lower down your general power consumption cost.
2. Extending roofing lifespan:
Being exposed long to the strong sun, your roofing underlayment may go weak and Even lose efficiency under the very high temperature.
This attic fan can help reduce such heat to prolong their lifespan and to help you save certain maintenance or replacement fee.
3. Reducing moisture & harmful mildews:
When collided with chilly attic-roof in winter, the interior warm & humid air will condense into water droplets, Such saturated humidity might cause dangerous electrical short circuit or create mildews to Harm your plasterboards.
An adequate & more active indoor ventilation provided by this attic fan can help remove These moisture contents & harmful elements for you.
4. Preventing ice-dam:
In snowy winter, interior warm air could melt those snows at roof to generate droplets falling Down to the eaves.
These droplets will then refreeze into ice damming on your roof and arousing dangers, This attic fan can help preventing such unsafe factors through keeping the house dry.
Significant features:
1. Patented Air Draft Design, for a Higher Efficiency!
Our patent-designed turbine wind guide blades structure is adopted in
This ventilator. Following a 360-degree swirl ventilation mode and being
Free from outside airstream interferes, it can work efficiently in sunny days
To exhaust out the indoor heat & smell and not let any exterior air going in,
So as to keep the living & working environment always clean & fresh.
In raining windy days, this air draft design can also efficiently prevent the
Rains or windstorm flowing backward.
2. Horizontally 180° Regulation
This roof exhaust fan carries a horizontal adjustment platform
Design for the solar panel to rotate left or right and face towards the sun,
This rotation can be as big as to 180° .
3. Vertically 4° Positioning
To capture most direct sunlight for the device to work most
Efficiently, its solar panel can be adjusted vertically at 4 angles,
That is 0° , 15° , 30° & 45° .
4. Installation guides
The solar fan's installation work is simple, you can finish it all by yourselves,
Feel free to contact us for detail installation guides.
|
Model No. |
SN201302 (square shroud cover) |
SN2013 007(round shroud cover) |
|
Solar panel |
15 Watt (365*365*25mm) |
15 Watt (365*365*25mm) |
|
Air flow |
1650CFM |
1650CFM |
|
Motor speed |
2100 RPM
(24V brush DC motor) |
2200 RPM
(24V brush DC motor) |
|
Product size |
530*530*250mm |
530*530*250mm |
|
Packing size&weight |
581*581*340mm/17GKS |
581*581*340mm/17GKS |
"SINOLTECH" is the solar energy brand name of Jinan Oufu Technology Co., Ltd, focusing on overseas marketing of high quality and advanced solar energy products.
Our company was firstly established in year 2005, in order to respond and conform to the trend of global environmental protection "low carbon" and "green energy", Oufu starts an independent department "SINOLTECH HOLDING GROUP Ltd" in year 2008, specializing in research, development, innovation, production and export for solar lighting and other solar application products.
Our main products include integrated solar street light, thin film flexible solar panel, solar garden light, solar lawn light, solar landscape light, solar fan, portable solar system, solar chargers etc.
SINOLTECH obtains 5 products patents, with more than 2 production and assembly base, total area more than 4600 square meters, employees over 200. Until now, SINOLTECH already passed system certification of ISO9001: 2000, TS16949, SGS ISO14001, OHSAS 18001.
All products have passed CE, RoHS and IP65 certificates. Production capacity for all in one solar street light is 5000 units
Per month, for flexible solar panel is 100KW per month, SINOLTECH have established close cooperation with a number of domestic and foreign universities and national research institutions.
Our main exporting markets include: USA, Germany, Russia, Italy, France, Spain, Australia, New Zealand, Isreal, UAE, Jamaica, Chile, Japan, Thailand, Philippines, Singapore, Malaysia, Pakistan etc more than 60 countries.
SINOLTELCH always put the needs of clients in the first place, solving all problems in the first time.
Integrity, professional, efficient, friendly and mutual benefit is always our company tenet, SINOLTECH expects to cooperate and serve clients worldwide.
