| Prod Model: |
SZTP1200-8.4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8.4" Inch |
| Structure: |
Film + Glass |
| Connector: |
Pin 4 Plug Connector |
| Thickness: |
1.4 ± 0.15 mm |
| Touch Media: |
Finger, Touch Pen |
| Type: |
4 Wire Restistive Touch Screen |
| Ratio: |
4:3 |
| Resolution: |
4096*4096 |
| Screen Size: |
5-15 Inches |
| Aspect Ratio: |
4:3 |
| Application: |
Industrial Control System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Analog |
| Customized: |
Customized |

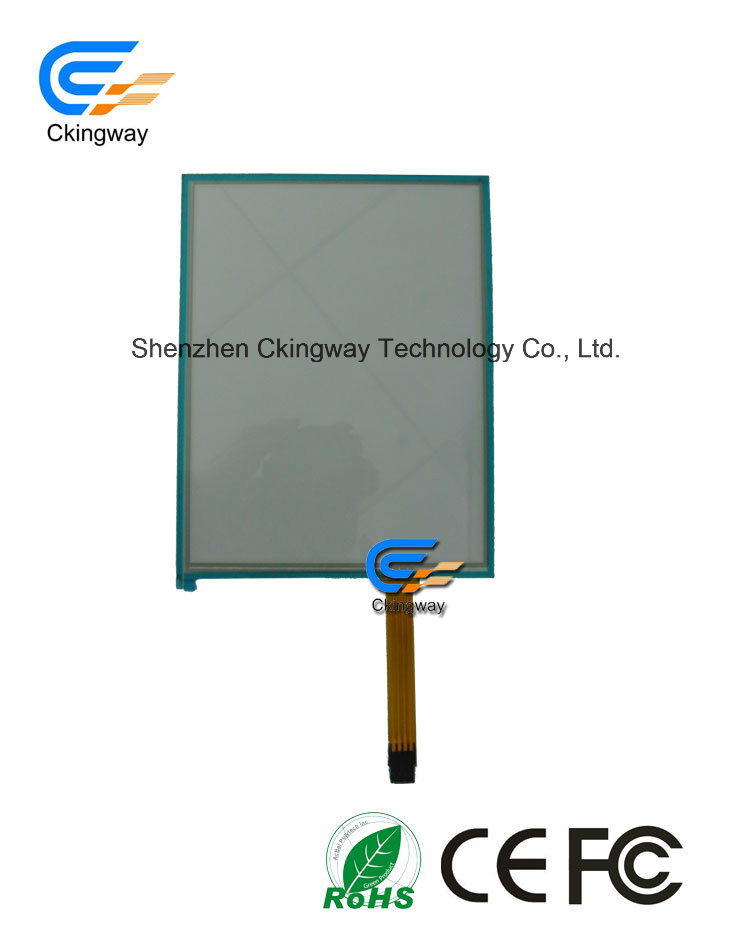

Product Description
The feathers of Smart Touch Screen as below:1.High accuracy and sensitivity.
2.Operable in various light conditions, indoor and outdoor;
3.Adapt to adverse environmental conditions such as liquid splashes and wash down
4.It meet ce, fcc, rohs certification4 wire restistive touch screen technology:The 4 wire resitive touchscreen consists of a glass layer with a conductive coating on top and a polyester top sheet with a conductive coating on the bottom.The conductive surfaces are held apart by "spacer dots", usually glass beads that are silk-screened onto the coated glass.
When a person presses on the top sheet, its conductive side comes in contact with the conductive side of the glass, effectively closing a circuit (this is called pressure sensing).The voltage at the point of contact is read from a wire connected to the top sheet.It can be touched by finger, gloved finger, leather or stylus pen.It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life time of 1,000,000 times finger touches.
| Size | 8.4" inch |
| Structure | Film + Glass |
| Connector | Pin 4 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen, Glove |
| Type | 4 Wire Restistive Touch screen |
| Ratio | 4:3 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC;35 mA |
| Transparent | ≤ 78% |
| Screen Resistance | X:100-500Ω Y:200-1000Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 30-150g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ;
≥ 100,000 time in paddling |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
Smart Touch Screen for Packing:Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Warranty:1 Year without damaged by people actions.
