Prod Model: |
ZDRR-102 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Working Modes: |
Move, Self-Lock and Interlock. |
Operating Voltage: |
DC12V or 24V |
Wireless Frequency: |
315MHz,433MHz |
Transmit Distance: |
50-100m |
Coding Type: |
Learning Code |
Application: |
Car/Motorcycle |
Usage: |
Auto |
Certification: |
RoHS |
Product Description

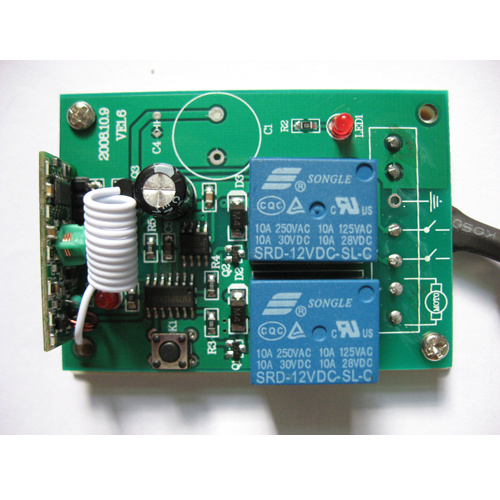

Wireless Remote Control Switch / Relay Receiver /Contoller Kit/Gate Opener: 1 /2 /4-channel output module, DC12/24. or AC220/110V optional, It's an idea wireless solutions for automatic control application like: electric door, gate, window and lifter equipment, industrial control, security system and home appliances etc, to implement the motor F/R (forward or reverse) rotation or switch on/off of equipment controlling etc. Can work with any of ZUDEN remote controller
- High security, larger storage, stable performance, low power consumption and easy operation.
- Learning code between remote control and wireless relay receiver
- Can learn up to 80 different remote controls each wireless relay receiver.
- With ZUDEN Remote offers flexible installation options.
- The relays can be Normally Open (N.O.) or Normally Closed (N.C.).
- Three working modes: Move, Self-Lock and Interlock.
- Suitable: electric door, window and gate, industrial control, home appliances and security system and so so.
Specifications |
| Working modes: Move, Self-Lock and Interlock. Operating voltage :DC12V or 24V , AC220V or 110V(customized) Quiescent current :≤5mA; Loading current :≤3A Wireless Frequency: 315MHz,433MHz Transmit distance:50-100M Coding type: learning code Operating temperature :-20ºC ~ +50ºC Receiving sensitivity :≥-105dBm Output voltage :AC or DC Relay Receiver: Product size: 75mm×55mm×30mm; Weight: 75g/pc; Remote controller: Product size: 59mm×30mm×15mm; Weight: 40g/pc; |
|
