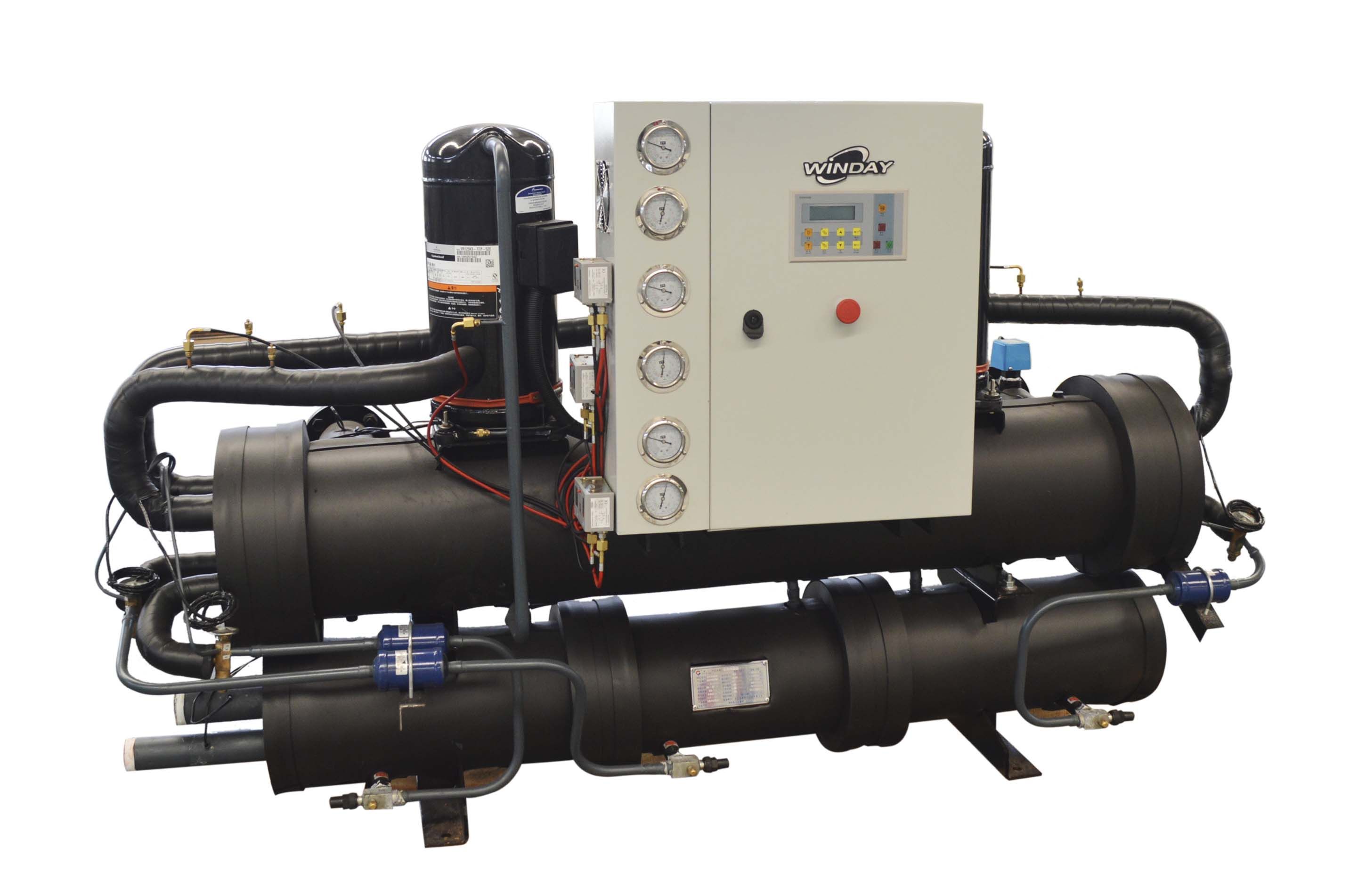

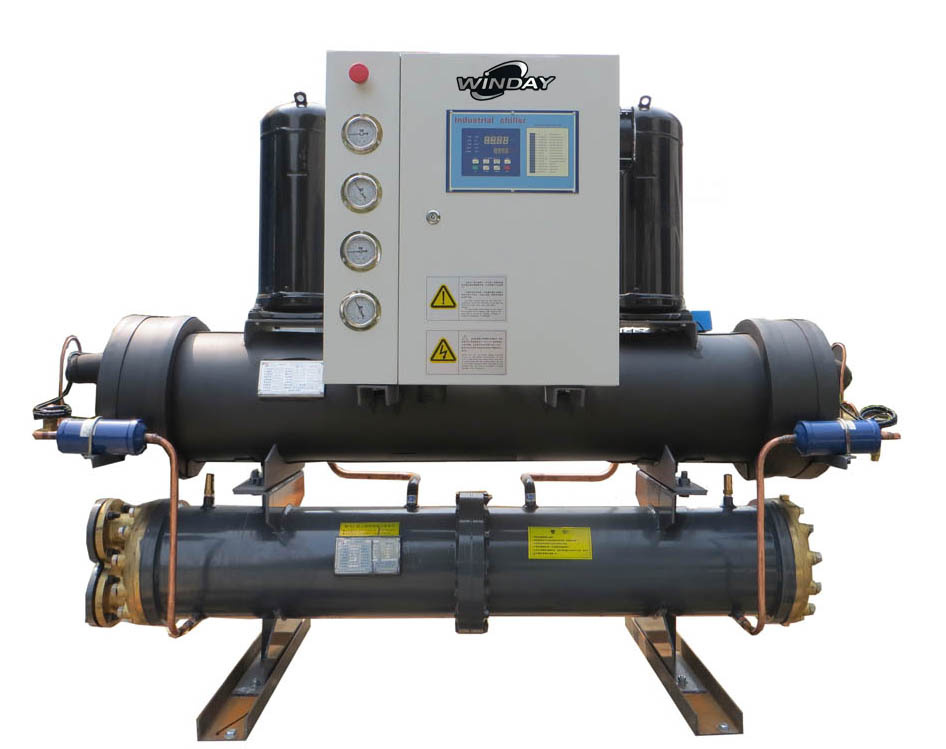

Scroll type ground source heat pump
Heat pump / GSHP / Ground source heat pump / scroll type heat pump
| Compressor | Copeland brand |
| OEM | Available |
| Refrigerant | R22/R407/r134a |
| Temp. control range | 3-50C |
Ensure chillers' stable quality and customer's benefit with less maintenance cost

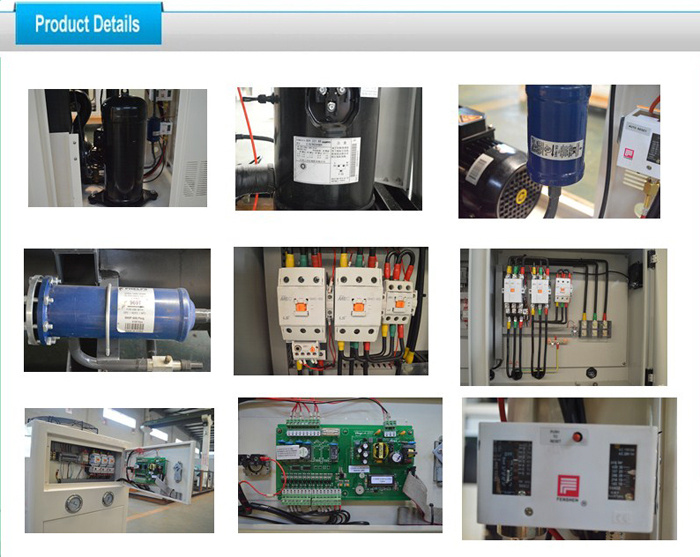

Accessories Advantages:
Compressor
Imported international brand hermetic scroll compressor;
Soft design for axial direction and radial direction of scroll plate;
Equipped built-in protector; Independent module design to realize free volume combination;
Easy for use; High reliability.
Special compressor used for low temperature type chiller with thicker scroll plate and special oil content design.
Throttling device
European and American brand throttling device, high stability, precise control,
European and American brand advanced electric expansion valve, precise control, high energy-saving efficiency
Pump
Famous domestic brand built-in stainless steel pumps,stable performance, imported bearings, small vibration, Low noise, good sealing machine, not harm the axis,and water-tight, Standard brand is MINAMOTO, below WILO brand is optional
Electrical components
Famous international brand electricalcomponents,
Mechanical life of more than million times, to ensure the safe use of the unit,
Intelligent precision controller; high energy efficient
Product specification:
| Model | WD-10.1G |
| Cooling | Capacity | KW | 33 |
| | Input power | KW | 6.6 |
| | Rated current | A | 11.7 |
| | Chilled water flow | M3/h | 5.7 |
| | Chilled water pressure | Kpa | 49 |
| | Geothermal water flow | M3/h | 6.8 |
| | Geothermal water pressure | Kpa | 39 |
| Heating | Capacity1 | KW | 22.1 |
| | Input power1 | KW | 38.6 |
| | Rated current1 | A | 68.7 |
| | Capacity2 | KW | 30.7 |
| | Input power2 | KW | 8.4 |
| | Rated current2 | A | 15 |
| | Heat water flow | M3/h | 5.7 |
| | Heat water pressure | Kpa | 49 |
| | Geothermal water flow | M3/h | 6.8 |
| | Geothermal water pressure | Kpa | 39 |
| Run Control | PLC program automatic control |
| Power supply | 380V/3N~/50Hz |
| Compressor | Type | Hermetic scroll |
| | Quantity(set) | 1 |
| | Start type | Y- |
| Evaporator | Type | High efficiency shell-and-tube dry heat ex-changer |
| | Water pipe | Mm | R1 |
| Condenser | Type | High efficiency shell-and-tube heat ex-changer |
| | Water Pipe | Mm | R1 |
| Refrigerant | Type | R22 |
| Dimension | L mm | 1180 |
| | W mm | 933 |
| | H mm | 558 |
| Gross W | KG | 250 |
| Running W | KG | 300 |
After sales service:
All equipment after debugging within warranty time have product quality problem, we charge the free service, and replace the spare parts ;
Expire warranty we only just need you pay spare parts material cost fees, and also support maintenance service for free.
Irregular call tracking service, with 7*24 hours after sales service: Mr Liu: +86 135****9392 or skype online service .
Price validity:1 month
