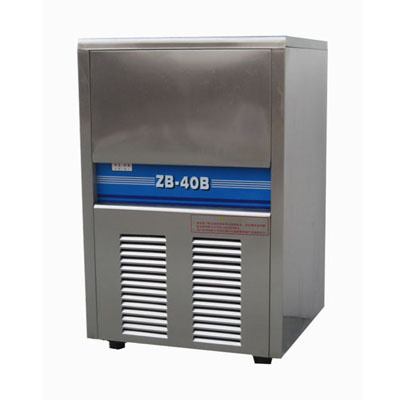

| Prod Model: |
zb-40b |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Certification: |
CE/ISO9001/Rhos |
| Application: |
Household |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Ice Shape: |
Granule |
Product Description
Specifications
1. Aspera/zanussi compressor
2. Ventilated cooled
3. CE rosh CB UL
4. High efficiency 40kg per day
5. Full 0.5mm stainless steel
Product description
Zb series ice maker features:
1. Capacity: 20~120kg per day
2. Cube ice: 22.5X22X22.5mm
3. Stainless steel material, long time service life.
4. Provide 24 hour preventative maintenance and diagnostic feedback for trouble free operation.
5. For reliable operation in challenging water conditions.
6. High temperature alarm, low water alarm, auto-stopped when ice is full.
7. Water pump: Danfoss
Models capacity (kg/24h) dimension (w*d*h)(mm) voltage power (kw) brand of compressor refrigerant
Zb-20b 20 420*450*760 220V/50Hz 0.22 zunusi/aspera r134A/r22
Zb-40b 40 500*480*810 220V/50Hz 0.29 zunusi/aspera r134A/r22
Zb-60b 60 500*560*890 220V/50Hz 0.35 zunusi/aspera r134A/r22
Zb-80b 80 706*580*1000 220V/50Hz 0.53 zunusi/aspera r134A/r22
Zb-90b 90 830*570*1010 220V/50Hz 0.68 zunusi/aspera r134A/r22
Zb-120b 120 830*570*1010 220V/50Hz 0.75 zunusi/aspera r134A/r22
Automatic ice maker
1. Our machine has optimized at the base of imported product owns more stable performance;
2. Bevel door design easy for taking ice and used stainless steel is erosion-resistant and endurable;
3. Used matured computerized control system allows for automatic performance in water supply, ice making, ice removing, machine stop working of ice full and after taking ice turn on again with automatic. Protection of lack of water for machine stopped and high pressure for cooling system, you could adjust the ice thickness.
4. World famous brand zel or aspera compressor, professional full cuprum evaporator, the speed of ice making faster 30% than normal ice maker, low temperature and most suitable for mixing drinks.
5. Use matured parts and design working life-span for 10years.
Operating limits
Ambient temp range: 5° C to 38° C
Water in temp range: 2° C to 38° C
Water pressure water in: Min≥ 0.02mpa
Max≤ 0.8mpa
ICEKNOW INDUSTIRES CO.,LTD , its manufactory locate in Guangzhou. integrated with design,producing,trading, technical support for refrigeration equipment and kitchenware such as ice maker, ice cream machine,cake showcase,counter freezer, home appliance of refrigerator,chiller ect.
We also have set abroad maintenance center widely in south Asia and South America.
twonine0fiveninenine0five is our directly hot line in Canton, for service within 24hours.
