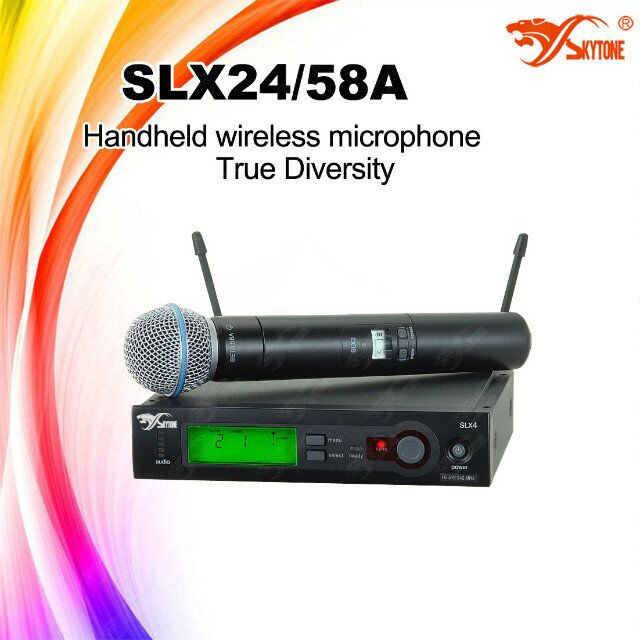

SLX24 series BETA type 58 Cheap Wireless Microphone
Handheld mics
wireless mics
cordless microphone
SLX2:Handheld transmitter with choice of microphone cartridge.
SLX4:Single-channel Diversity Receiver with optional logic output. Up to 42 compatible systems (multi-band).
SLX Wireless Systems are powerful wireless tools that can be set up quickly and used confidently by installers and working bands. Features include auto frequency scan with transmitter setup, exceptional wireless clarity, and patented Audio Reference Companding.
SYSTEM FEATURES
--Auto Frequency Selection
Locates a clear channel instantly
--Auto Transmitter Setup
Infrared link automatically synchronizes the transmitter and receiver
RECEIVER FEATURES
--Detachable 1/4 wave antennas
--Backlit LCD
--Rack-mount hardware included
--1/4" and XLR audio outputs
HANDHELD AND BODYPACK TRANSMITTER FEATURES
--Choice of handheld microphones
--Bodypack works with headworn, lavalier and instrument microphones and cables
--Timed backlit LCD
--Frequency and power lockout
Specifications:
| Slx24/Beta58 System Specifications |
| Operating Range: | 30–100 m (100–300 ft.) under typical
conditions, depending on transmitter type
Note: actual range depends on RF signal absorption,
refl ection, and interference. |
| Audio Frequency Response: | Minimum: 45 Hz, Maximum: 15 kHz (± 2 dB) |
| Total Harmonic Distortion: | 0.5%, typical (ref. ± 38 kHz deviation, 1 kHz tone) |
| Dynamic Range: | >100 dB A-weighted |
| Operating Temperature Range: | Operating Temperature Range: |
| Transmitter Audio Polarity: | Positive pressure on microphone diaphragm
(or positive voltage applied to tip of WA302
phone plug) produces positive voltage on pin
2 (with respect to pin 3 of low impedance output)
and the tip of the high impedance ¼-inch output. |
| Component Specifications |
| SLX4 | SLX2 |
| Housing: | Galvanized steel | Housing: | Molded ABS handle and battery cup |
| Audio Output Level: | (ref. ± 38 kHz deviation with 1 kHz tone)
XLR connector (into 600 Ω load):
–13 dBV
¼ inch connector (into 3000 Ω load):
–2 dBV | Audio Input Level: | -8 dBV maximum at 0dB position |
| Sensitivity: | –105 dBm for 12 dB SINAD, typical | Operating range: | 100 m (300 ft.) |
| Image Rejection | >70 dB, typical | Power Requirements: | 2 "AA" size alkaline or
rechargeable batteries |
| Power: | 12–18 Vdc at 150 mA, supplied
by external power supply | Battery Life (alkaline): | >8 hours |
| Weight: | 816 g (1 lb. 13 oz.) | Weight: | 290 grams (10.2 oz.)
without batteries |
| Dimensions: | 42 mm H x 197 mm W x 134 mm D | Dimensions: | 254 mm x 51 mm dia.
(incl. SM58 cartridge) |
