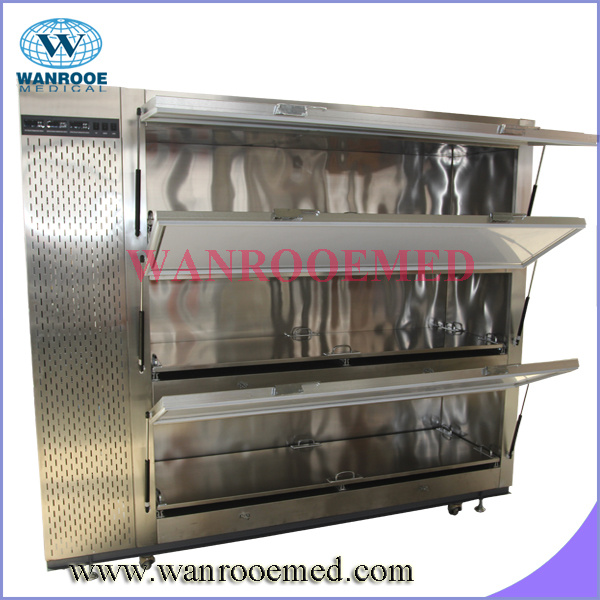

GA303 side loading Morgue refrigerator
WANROOEMED Mortuary Refrigerator IS USED FOR STORAGE CORPSE, WITH 1/2/3/4/6 BODY SIZE.
Control System: The Mortuary Refrigerator thermostat, digital display, high precision temperature control with over-temperature and sound and light alarm.
Cooling system: closed cooling system, cooling speed quickly. Using a stand-alone single control, single cycle refrigeration system, a layer of an independent cooling system. Can work simultaneously, can also work alone.
Insulation material: stainless steel casing, polyurethane integral foam insulation with excellent results, about 10cm thickness and density about 40kg/M3
Refrigerant: R406A standard
Alarm: when temperature not in setting range, will alarm by sound and light.
Evaporator: built-quality copper, seamless integration, and beautiful than traditional wall-mounted, the cooling effect is more significant.

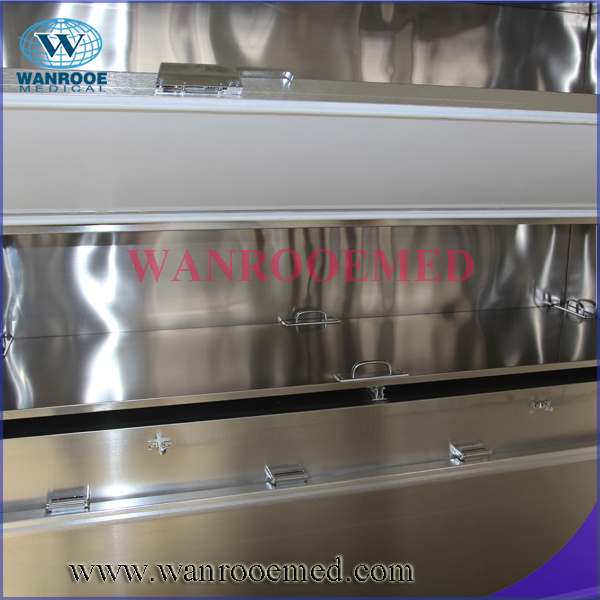

Cavity drawer, made of stainless steel, imported high-quality slide profiles, more effort when carrying
NOTE: German brand Danfoss compressor and import air blower option. Our suggestion: if ulta low-temperature, we recommend Danfoss compressor, if ordinary, Chinese brand will be enough.
With castors, easy to move in morgue
Mortuary Refrigerator Specificatons:
| Product mode | Quantity | Voltage | Temperature inside box | Exterior size
(Depth* Width*Height) | Weight | Body tray size | voltage |
| GA301 | 1Corpse | 220V/50HZ standard | -10~+5ºC | 2480*800*620 mm | 100kg |
Standard: 1940X610mm | 220W |
| GA302 | 2Corpse | 2480*800*1360mm | 230kg | 440W |
| GA303 | 3Corpse | 2480*800*1900mm | 300kg | 660W |
| GA304 | 4Corpse | 2480*1600*1360mm | 420kg | 880W |
| GA306 | 6Corpse | 2480*1600*1800mm | 600kg | 1320W |
Door size: 630*440*400(thickness)mm
Bottom layer: 260mm second layer: 780mm, top layer: 1320mm
Side loading type of freezer available according to customer's requirement
Side loading size:
One body: 2150*800*1100
two body:2150*800*1700
three body: 2550*800*2130mm- do not recommend three body size side loading, as too higher, the top layer not very easy to open.
Standard body tray: in stainless steel material, flat with handles.
Customized type can be negotiaged.
