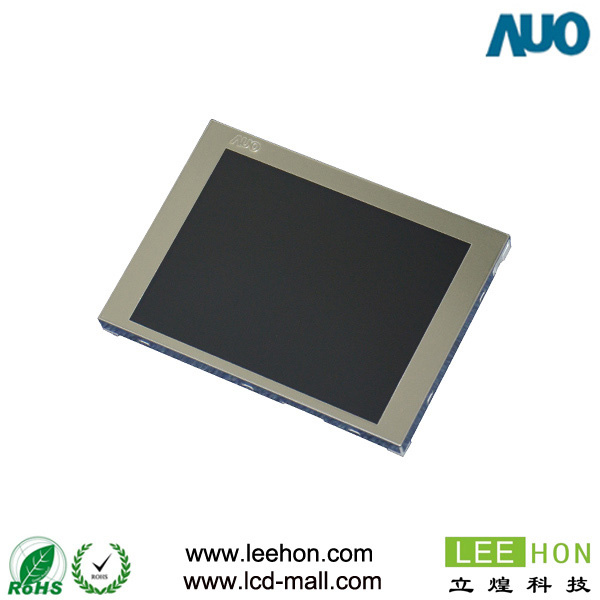

Shock-proof AUO industrial 5.7 inch LCD display G057VTN01 V0 Features:
1)Wide view angle;
2)WLED backlight, LED driver integrated;
3)Wide temperature;
4)Shockproof, and high brightness;
5)Inversion show 360 degree;
6)Surglare: Anti-glare;
7)Backlight life is more than 50k hrs;
8)Original guaranteed;
9)Competitive prices;
10)Offer 12 months of warranty;
11)Original technology support;
12)Ideal for industrial use.
AUO industrial grade 5.7 inch TFT LCD (G057VTN01 V0) shock-proof data sheet:
Module number: G057VTN01 V0;
Resolution: 640X480;
Pixel pitch: 0.18 (H) X 0.18(V);
Active Area: 115.2(H) X 86.4(V);
View angle R/L/U/D: 80/80/70/70 (typ. );
Pixel Arrangement: RGB vertical stripe;
Surface Treatment: Anti-glare and hard-coating 3H;
Electrical Interface: CMOS;
Brightness: 600(CD/m2);
Contrast ratio: 800: 1;
Outline dimension: 144.0(H) X 104.6(V) X 12.3(D) (typ. );
Backlight: LED;
Response time: 25(ms);
Display mode: TN, Normally white, Transmissive;
Operate temperature: -30-85(° C);
Storage temperature: -30-85(° C);
Display Colors: 262k;
Power Supply Voltage: 3.3V(Typ. );
Power Consumption: 3.62W(Typ. );
Backlight lifetime: 50k(Min. );
Package: AUO original package; 60PCS/carton; Carton size: 520X340X250mm; Weight: 12.95KGs(Typ. )
AUO TFT LCD MODULE:
G043FW01 V0
G043FTT01 V0
G057QN01 V2
G057VN01 V2
G057VTN01 V0
G065VN01 V2
G070VW01 V0
G070VW01 V1
G084SN03 V3
G084SN05 V9
G085VW01 V0
G085VW01 V3
G101EVN01 V0
A101SW02 V1
G104VN01 V1
G104SN02 V2
G104SN03 V1
G104SN03 V5
G104XVN01 V0
A104SN03 V1
A116XW02 V0
G121STN01 V0
G121SN01 V4
G121XN01 V0
G150XTN01 V0
G150XG01 V4
G150XG03 V5
G150XG03 V3
G150XTN03 V0
G150XG01 V3
G150XTN01 V0
G150XG03 V3
G150XG01 V1
G150XG01 V2
G150XG02 V1
G150XG03 V2
G151EVN01 V0
G156XW01 V0
G156XW01 V1
G170EG01 V0
G170EG01 V1
M170ETN01 V0
G173HW01 V0
G185XW01 V1
G185XW01 V0
M185XW01 VF
M185XW01 V2
M185XTN01 V2
M190ETN01.0
M190EG01 V2
M190EG01 V3
G190ETN01 V0
G190EG01 V0
G190EG01 V1
G190EG02 V0
G190EG02 V1
G190SF01 V0
M190EG02 V8
G215HVN01 V0
M215HTN01.1
G220SW01 V0
G220SVN01 V. 0
G240HW01 V0
M240HW02 V6
G190EAN01.0
G104STN01.0
G190ETN01.2
G213QAN01.0
G150XVN01.0
G150WTN03.1
G150XTN01.1
G215HVN01.1
Hangzhou LEEHON Technology is one of the main agents of AUO/TianMa/CMI/Mitsubishi TFT- LCD module in China mainland, founded in 2002, the products vary from 2.2 to 24 inches mainly, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc., and our features are:
1. Original quality guarantee.
2. Superior After-Sale service;
3. The most competitive prices here can provide;
4. Small order quantity accepted.
5. Offer 12 months of warranty;
6. Experienced staff can help you to solve your problem anytime.
With wide range, superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia. And our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
