| Prod Model: |
SHMS-1000 and SHMS-1380 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
Electric |
| Remote Control: |
With Remote Control |
| Timer: |
With Timer |
| Certification: |
CE |
| Power: |
>300W |
| Material: |
Stainless Steel |
| Installation: |
Ceiling |
| Type: |
Air Cooling Fan |
| Application: |
Cow House,Poultry ,Agriculture,Workshops,Greenhous |
Product Description

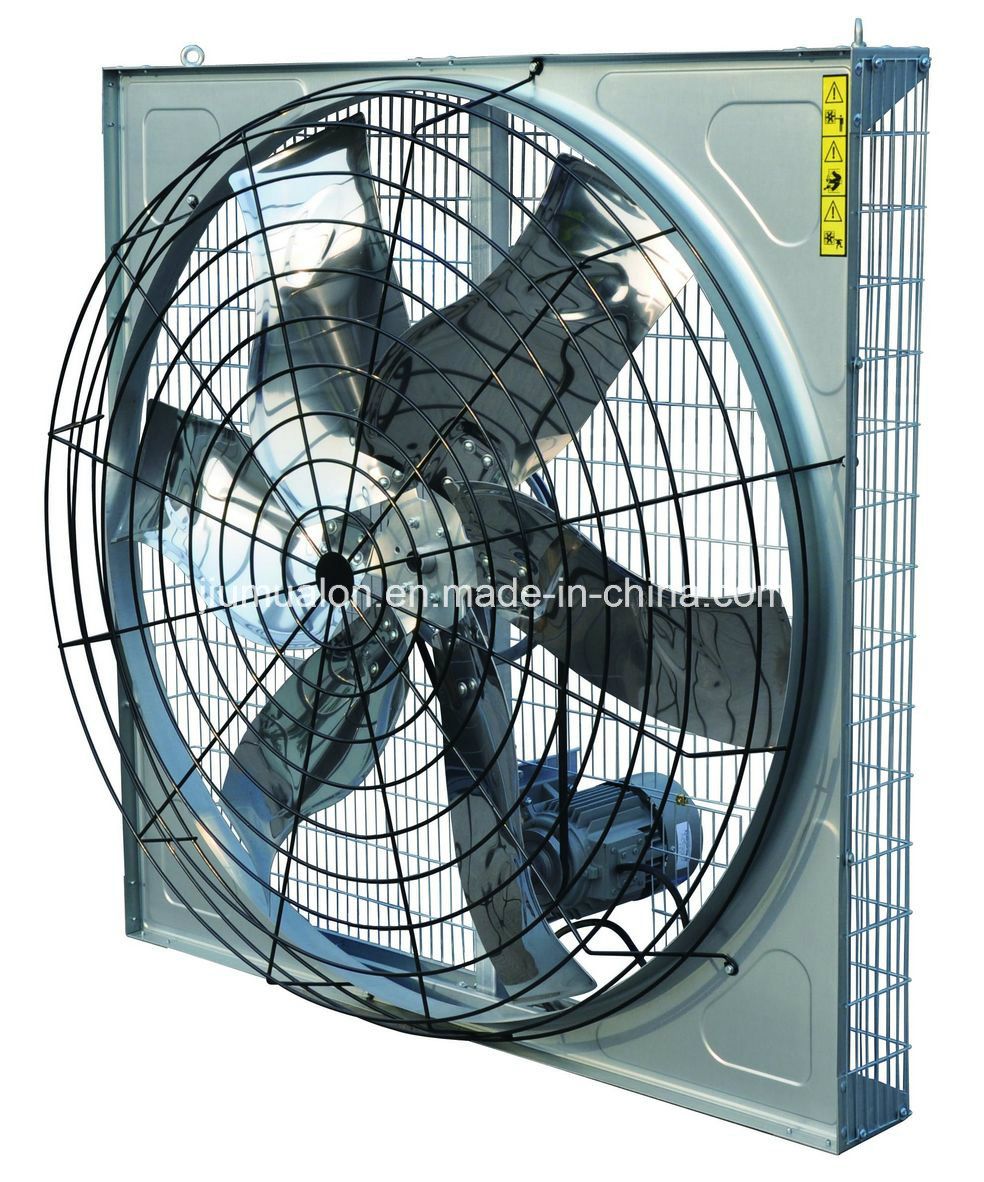

Brief Instroduction: SHMHS-Panel Fan can be built into a wall or a panel. This Panel Fan have stainless steel blades and hot galvanization frame. SHM- Panel fans are are applied in intensive animal husbandry buildings, industrial buildings, factories and workshops.
1. The Technical data of Axial Fan
Frame material of Axial Fan: Hot Galvanized sheet, 275g/m2, high anti-corrosive durability.
Blade Diameter : 1270mm
Blade No.s: 3
Blade material: Hot galvanized sheet, thickness is 2mm.
Blade instruction: weight difference between blades is less than 0.5g, blades will go through balance test after assembled which can assure steady running and even airflow.
Motor technical data: 380v, 50hz, 3phase, 1.1kw
Motor RPM:1440r/min
Belt: Mistuboshi belt from Janpen
2.The Technical Paramenters:
3.The Dimensions:
Qingdao Super Husbandry Machinery Co., Ltd is a famous enterprise engages in the study, designing and manufacturing of the husbandry ventilation equipments as well as the livestock and poultry ventilation. It is a hi-tech enterprise that enjoys the fast development speed, accompanied by the most effective technologies and top-ranking sales quantum.
Meanwhile, it has the ability of development, engineer designing, installing and servicing at the same time.
We have been supplying our products in China and overseas markets like the Asia, Middle East, Arab Countries, South America, etc. The excellent performance and services get a good reputation from the clients, we keep hard working to provide the better and better products and service for more and more customers
