| Prod Model: |
FIV-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ice Bin: |
Including |
| Material: |
Stainless Steel |
| Certification: |
CCC |
| Condition: |
New |
| Ice Shape: |
Flake Ice |
Product Description
General Information of seawater Flake ice maker machine:
Capacity5 tons/day
Model NumberFIM-50K
Power22kw
Oversal size 2200*1050*1550mm
Warranty15 months
RefrigerantR404A
size of flake ice:40x40mm, thickness around 1.5-2.5mm
CompressorBitzer
materialSUS404
water cooling
01:Motor
02:Refrigerant runner
03:Water inlet
04:Decelerator
05:Ice skate
06:Water sprinkling pan
07:Principle axis
08:Water sprinkler
09:Water return pipe
10:Ice freezing surface
11:Insulation layer
12:Ice outlet
13:Low water pan
14:Stainless steel wrapper sheet
seawater ICE FLAKE maker MACHINE FEATURES:
1. Irregular ice flakes with size about 40*40mm and thickness around 2 mm
2.The thin ice can be directly used for stirring and mixing refrigerated materials.
3.No acute edges and corners so it will not damage the surface of the cooled object.
4.Large contact area and fast cooling speed.
5.Easy to crush and mold.

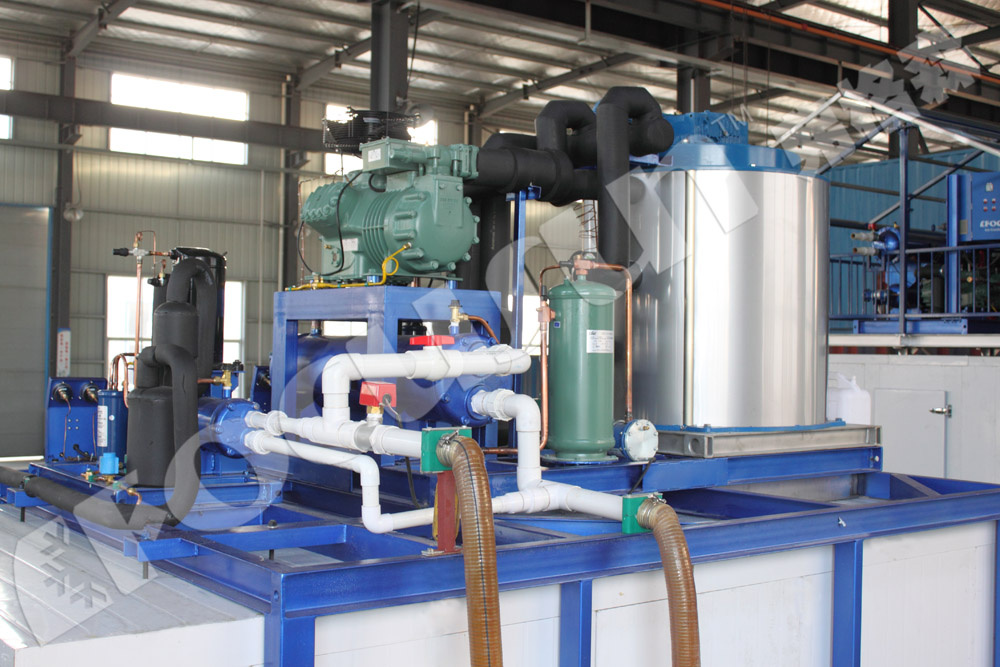

REAL PICTURES OF FIM-50K FLAKE ICE maker MACHINE
WORKING PRINCIPLE OF sea water flake ice maker machine
water film has heat exchange with refrigerant and its temperature quickly decreases till a layer of thin ice is formed on ice freezing surface. Under the extrusion of ice skate,the thin ice layer turns into ice flake and then falls intro ice bin from ice outlet.
And the partial unfreezing water returns to the cold water tank through low water pan from water return outlet,waiting for cycle use by means of cold water circulating pump.
Perfect service system:
All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in 15 months, Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost.
Process:Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
AWe will dispatch our Quality and Problems Appraisers to make a confirmation.
BHave a negotiation of the compensation and sign agreements
COur After-Sales Department will perform the duties as the agreement
Dear friends, don't hesitate to send your inquiry if you are interested!
We would be very glad to be on service for you, as the most professional ice machine manufacturer with the biggest factory base in China, we are pleased to attach our best offer. We are definitely to contact you within 3 days after getting your inquiry.
|
Subject |
Unit |
Technical parameter |
|
Power supply |
Voltage/Phase/Frequency |
380V/3P/50Hz |
|
Refrigerant |
|
R22 or R404A |
|
Capacity |
Kg/day |
3000 |
|
Cooling way |
|
Seawater cooling |
|
Temperature |
Ambient temperature |
|
35 |
|
Waterinlet temperature |
|
20 |
|
Compressor |
Manufacturer |
|
Bitzer |
|
Refrigeration capacity |
Kw |
17.69 |
|
Operating power |
Kw |
10.18 |
|
Compressor COP/EER |
Kw/kw |
1.74 |
|
Horse power |
Hp |
20 |
|
Operating power |
Total running power |
Kw |
11.33 |
|
Installment power |
Kw |
14 |
|
Operating power of reducer |
Kw |
0.37 |
|
Operating power of cold water pump |
Kw |
0.03 |
|
Cooling water pump |
Kw |
0.75 |
|
Dimension |
Size of ice maker |
(L×W×H)(mm) |
1700×900×1200 |
|
Size of water feeding pipe |
|
1/2" |
|
Size of ice outlet |
mm |
Φ520 |
|
Weight of unit |
Operating weight of flake ice machine |
Kg |
720 |
|
Water supply pressure requirement |
