Guangzhou Tengsheng Audio Equipment Co., Ltd. >> S-15 Single 15 Inches 600W Subwoofer Phase-Inverted Loudspeaker Driver

S-15 Single 15 Inches 600W Subwoofer Phase-Inverted Loudspeaker Driver

S-15 Single 15 Inches 600W Subwoofer Phase-Inverted Loudspeaker Driver
Price: US $ 200-500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: S-15
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Inverter Hole Design
Type: Sub Woofer
Crossover: Asymmetric Internal Passive Crossover
Lf Component: 220mm Magnet with Aluminum Frame
Size Options: 15", 18", Dual 18"
Installing: Pole Mount, Lying Down
Diaphragm: Paper
Capacitor: Solen
Clients' Logo: Acceptable
Warranty: 3 Years
Hi-Fi: Not Hi-Fi
Operation Mode: Wire / Remote Control
Speaker System: Optional Combination
Speaker Material: Wood
Application: Home
Certification: CCC
Noise: Nun
Monitor: Nun
THD: <0.05%

Product Description

Features:
a. Special inverter hole design;
b. Frequency can be below as 30Hz;
c. Reinforced cup-shaped mounting hole.

1. Description:

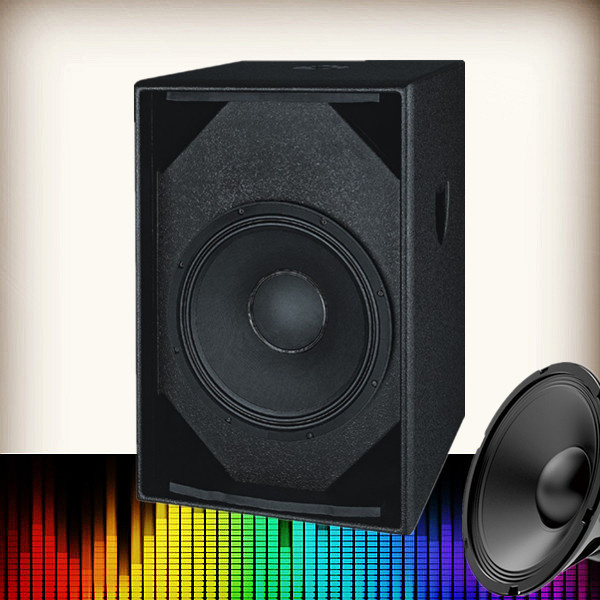

S-15 is a sub-woof loudspeaker designed specifically for RBX full range loudspeaker.
With a special inverter hole design, S-15 15" sub-woof sound system is equipped with a 15" strong and penetrating LF precise driver, whose frequency can be below as 30Hz. And, through a pillar, RBX loudspeaker can be easily installed in its reinforced cup-shaped mounting hole.

2. Application:
Our S-15 15" sub-woof sound system is ideal for auditorium, conference room, music bar, KTV and etc. As sub-woof loudspeaker, it can be combined with our full range loudspeaker.

3. Technical data:

ModelS-15 15" 600w subwoofer phase-inverted loudspeaker driver
DriversLF: 1×15"voice-coil: 4"
Frequency(±3dB)30HZ-220HZ(±3dB)
Dispersion(-6dB)/
Sensitivity(1m/1W)99dB
Maximum SPL129dB Continuous/141dB Peak
Nominal Impedance8 Ohms
Input powerRate: 600W/Peak: 2400W
Recommend AMP800W to 1200W into 8 Ohms
Connectors2 × Speakon NL4MP
Dimensions690 × 470 × 500mm (H × W × D)
Master carton750 × 530 × 560 (H × W × D)
Net Weight37Kg
Gross Weight40Kg

4. Construction:

PhysicalRectangle
EnclosureImported multilayer birch plywood
GrilleDie-casting steel net with circular hole
PaintPolyester coatings (whose color can be customized.)
Handing Position/
Pole MountTop: Φ35mm support base

5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.


6. Company View:


7. Our Projects:


8. Multiple transportation mode selection:
Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.

During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.

Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
