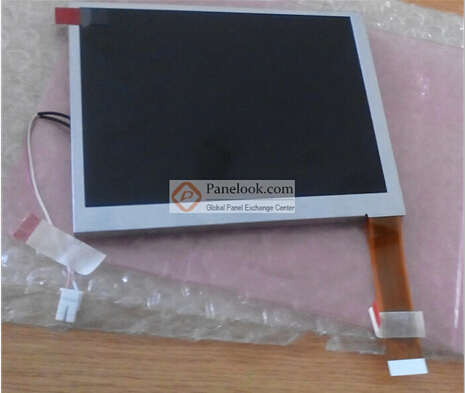

RGB Interface Industrial LCD Display&Panel TM056kdh02 LCD Display

Name: RGB Interface Industrial LCD Display&Panel TM056kdh02 LCD Display
Brand: ec-portal.com
SKU: 754343055
Availability: InStock
Rating: 4.3 (140 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Panel Type : TM056KDH02
Panel Type : a-Si TFT-LCD, the LCD screen
Panel size: 5.6 inches
Resolution : 320 (RGB) × 234
Display Mode : TN, often white display , transmission type [ [ screen Copyright, plagiarism is strictly prohibited ]
IPS hard screen series : AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich
VA soft screen series : ASV, HVA, MVA, PVA, SVA, UV2A, VA]
Finish: matte
Finish: matte
Panel Brightness : 330 cd / m2 (Typ.)
Contrast Ratio : 300: (. Typ) 1 ( transmission )
Display color: full color
Response time : 25 (. Typ) (Tr + Td) (ms)
Viewing Angle : 65/65/45/65 (. Typ) (CR≥10) ( left / right / up / down )
Scanning Frequency:
Light source type : 2S7P WLED [ [ screen Copyright, plagiarism is strictly prohibited ]
CCFL, EEFL, HCFL, FFL quantity : x pcs
WLED, RGB LED quantity : x strings, xSxP
illustration 3S8P × 2CN
3S: 3 LED series
8P: 8 series parallel
2CN: 2 terminals ]
Signal Interface : TFT Specific Analog RGB
Panel Voltage : 5/5/15 / -10V (Typ.) (VCC / AVDD / VGH / VGL)

Prod Model:	TM056KDH02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inch:	5inch
Application:	Graphic Design
Feature:	LED Backlight Display
Type:	TN
Widescreen:	Widescreen
Response Time:	20ms
3D:	Not 3D
Interface Type:	VGA
Screen Size:	5inch
Aspect Ratio:	15:9
Optimum Resolution:	800*480

Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.

Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.

Please check the following website to find the products supported by us.

Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.

Custom LCD Panels: Segment, icon, chracter, and mixed

Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4

Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240

Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"

All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.

We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
