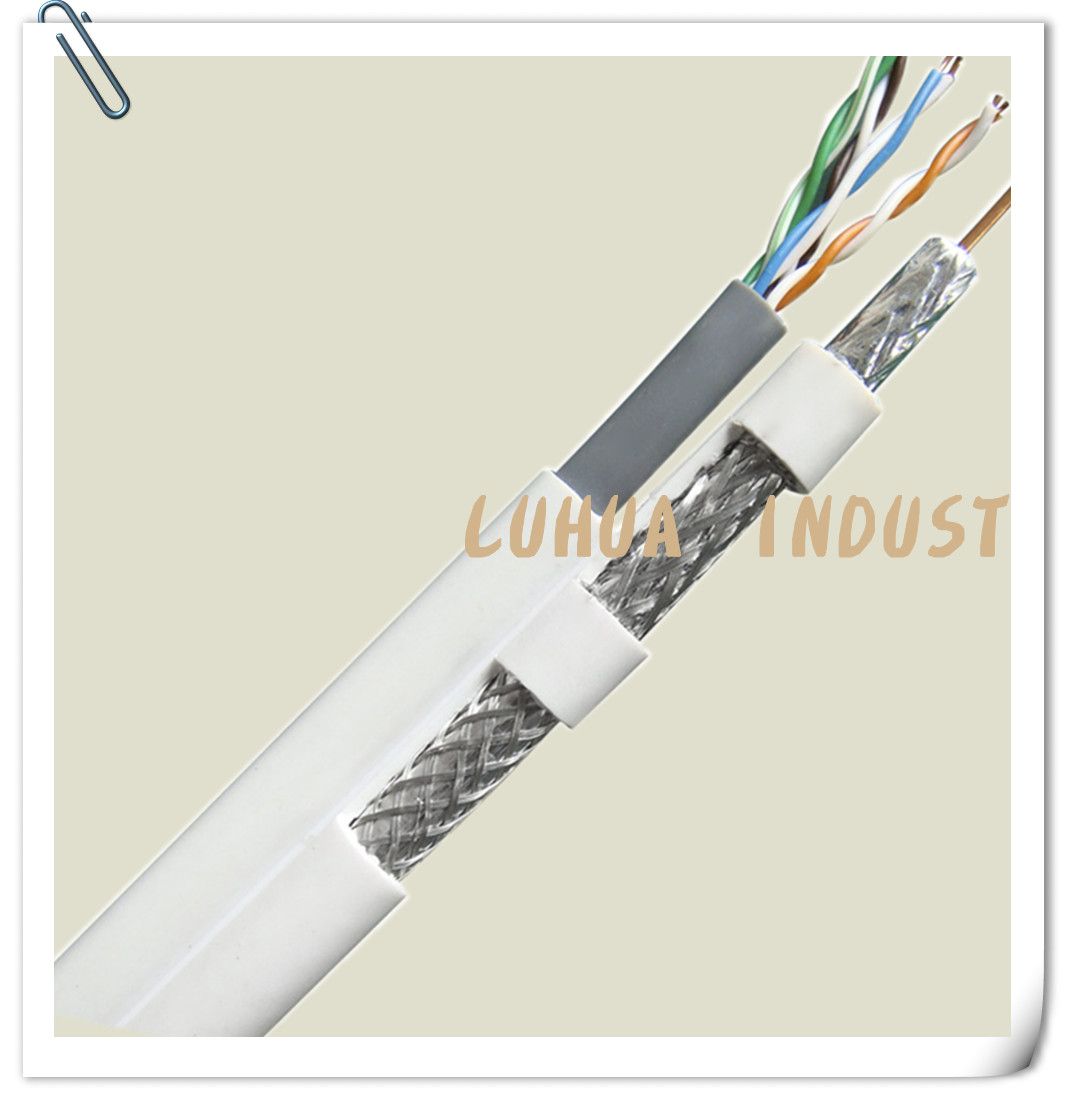

RG59 COAXIAL CABLE+2C/18AWG POWER CABLE FOR CCTV, SURVEILLANCE SYSTEM
RG59+2POWER WIRES: 0.813mm BC/CCS+ 3.66mm Foam PE + AL Foil+AL Braiding +6.10mmPVC/PE
For Options:
1) Center conductor: Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: 40%-95% available;
7) PVC jacket of Flame retardant, UV, or UL available.
Characteristics:
Impedance 75Ohm Velocity of Propagation 85%
Capacitance 50 pF/m Return Loss 20dB
Attenuation: [@68 F. (20 C) ] per 100M
MHz dB MHz dB MHz dB
5 2.82 1450 32.41
55 6.73 1800 38.72
300 14.60 2200 42.78
600 20.34
1000 26.64
Certificates ISO9001, ETL, CE, SGS, RoHS
Hangzhou LinAn LuHua Industrial Co., Ltd is situated in Linglong Industrial Zone, Lin'an, Hangzhou city, Zhejiang province, China, which is a capable enterprise with more than15 years experience both in the production and the management system.
We are always promoting the development of the enterprise with the Honest Operation since we step into the cable industry, so as to develop our company from a small workshop of more than 10 people to a limited company of more than 100 people.
At present, we have 2 assembly line, one of them is for the center conductor equipment, and the other is the sheathing equipment, which contains 60 sets of high-speed braiding machines and the productivity has been raised from 6000km/month to 9000km/month.
We have the most advanced testing equipment, and we have got some authority certificate of this field, such as the ISO-9001, CE, RoHS, all of these contribute to insure that we can provide the products with high quality. Besides, we have improved our management system by attracting some staff with rich experience. You may rest assured that we can offer you the products both with high quality and productivity, and we have enjoy many approval and affirmation from home and abroad Our main products contains Coaxial cable, TV cable, Telecommunication cable, RF cable and Video cable, which has been widely used in the supervision system. According to their characteristics, they also can be divided into 2 types: 1)RG58, RG8, LMR200, LMR300, LMR400, 50 Ohm Coaxial Cable with Solid Polyethylene Insulation; 2)RG59, RG6, RG7, RG11, QR500 and QR540 Trunk cable, 75 Ohms Coaxial Cable with Gas-injected Foam Polyethylene Insulation, which is also named RF cable. Currently, the high-foaming coaxial cable is still the kind of cable both with high performance in transmission system and reasonable price, which is also can be demonstrated by the testing statistics in the band of Vedio, RF and Microwave.
As the blueprint made by our company, we are going to enlarge our business on the existing market. Although the foreign trade is not prosperous as 10 years ago, we still attach great importance to the global market. And we think that if we want to gain more shares in the global market, we need to shift our operation models from OEM to our own brand, so as to change from MADE IN China to MADE BY China, then we can get out of the vicious competition and make a more brighter future.
We believe that Chinese enterprise have the potential to accept the challenges, so can our company. Feel free to contact us when you have any problems about the products. Calls, letters, visits are welcomed.
