Rg-T700miwh-05 7" TFT LCD Module 800*480 Car LCD Monitor Display

Rg-T700miwh-05 7
Price: US $ 19/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: RG-T700MIWH-05
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 7
Luminance: 380CD/M2
Resolotion: 800X480
Contrast Ratio: 250:1
Aspect Ratio: 16: 9
Active Area: 152.4X91.44mm
Response Time(Ms): 20 (Typ. )(Tr+Td)
Viewingangle: 70/70/60/70 (Typ. )(Cr≥ 10)
Operation Temperature: -20 ~ 70 ° C
Storage Temperature: -30 ~ 80 ° C
Usage: Monitor LCM
Type: LCM
Response Time: 20ms
Viewing Angle: TN+FILM
Display Technology: TFT
DOT-Matrix Graphic LCD Module Type: Row/Column-Driven Control Type
LCD Drive Mode: Multiplex Drive LCD Module
Customized: Customized
Digital LCD Module Type: TFT LCD
Touch Screen Type: No Touch

Product Description

Product Description

Double display structure:   TFT Module + FPC +BL

Transmissive Type TFT LCD
800 dot-source and 480 dot-gate outputs;
16.7M Color;
White LED back light;
18 bits RGB  (TTL)  interface;

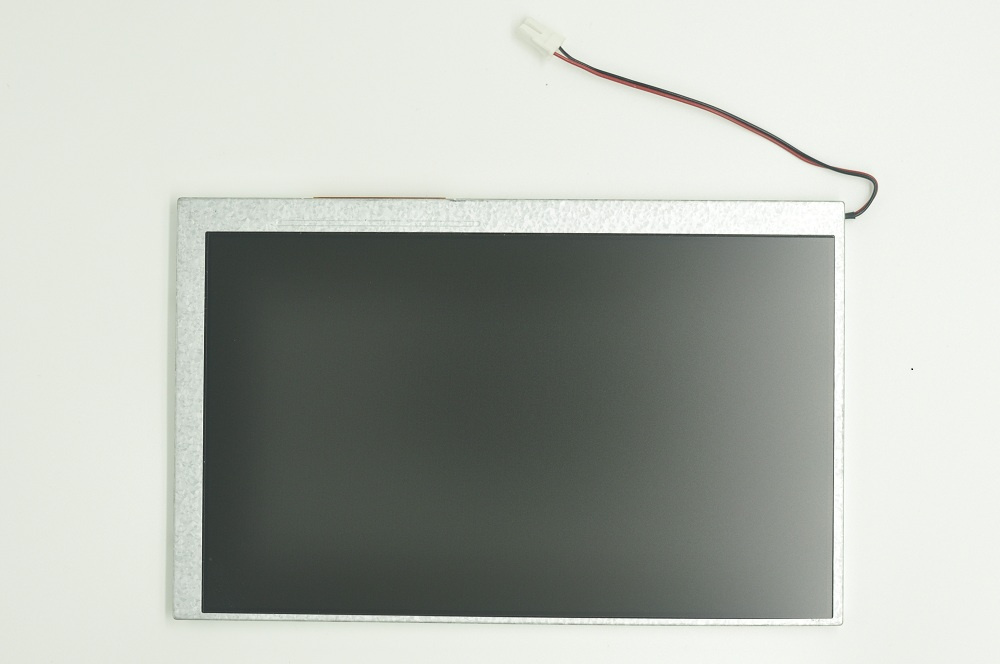

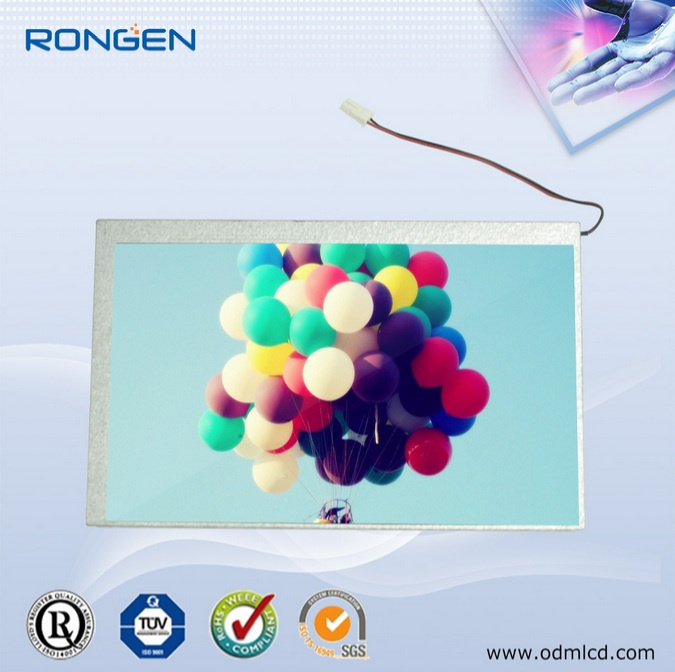

Front picture

General specification

1 LCD size 7.0 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 800 × 3(RGB) × 480
4 Display mode Normally White, Transmissive
5 Dot pitch 0.1905(W) × 0.1905(H) mm
6 Active area 152.4(W) × 91.44(H) mm
7 Module size 165(W) ×104.54(H) ×5.2(D) mm Note1
8 Surface treatment Anti-Glare
9 Color arrangement RGB-stripe
11 Interface 18 Bit RGB (TTL)
12 Backlight power consumption 1.92W
13 Optimum viewing direction 12 O'CLOCK



Mechanical Drawing



Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

ProductApplication
Small-size TFT LCD displaymobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD displaymobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD displayeducational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mouldindustrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.

Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.

Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.

Further more, each unit bears SGS, TUV and RoHS marks.

The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.

Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
