Product Description
This specification applies to the Negative type TFT transmissive dot matrix LCD
module that is supplied by . This LCD module should be designed for
mobile phone use.
LCD specification: Dots 240xRGBx320.
As to basic specification of the driver IC, refer to the IC (ILI9341 )
specification and datasheet.
| ITEM | Standard value |
| LCD Type | TFT Transmissive |
| Driver element | a‐Si TFT Active matrix |
| Number of Dots | 240*(RGB)*320 Dots |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 43.2 x 57.6 mm |
| Viewing Direction | 6 O'clock |
| Driver IC | ILI9341 |
| Module Size(W*H*T) | 50 x 69.2 x 2.4 mm |
| Approx. Weight | 15 g |
| Back Light | White LED |
| System interface | 8/16 BITS 80 parallel interface |
| Back Light power consumption | 192mW |
| Panel power consunption | 6.6mW |

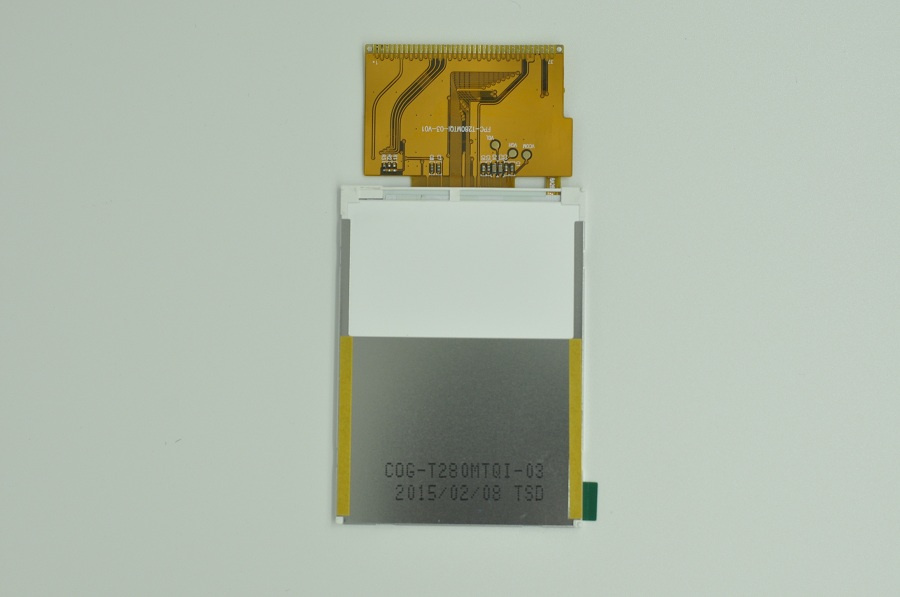

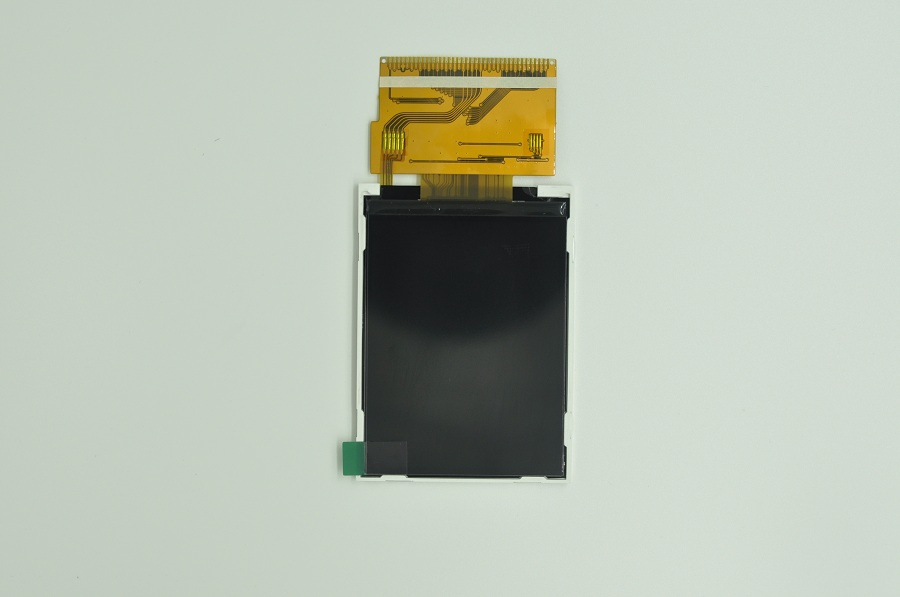

Product Pictures

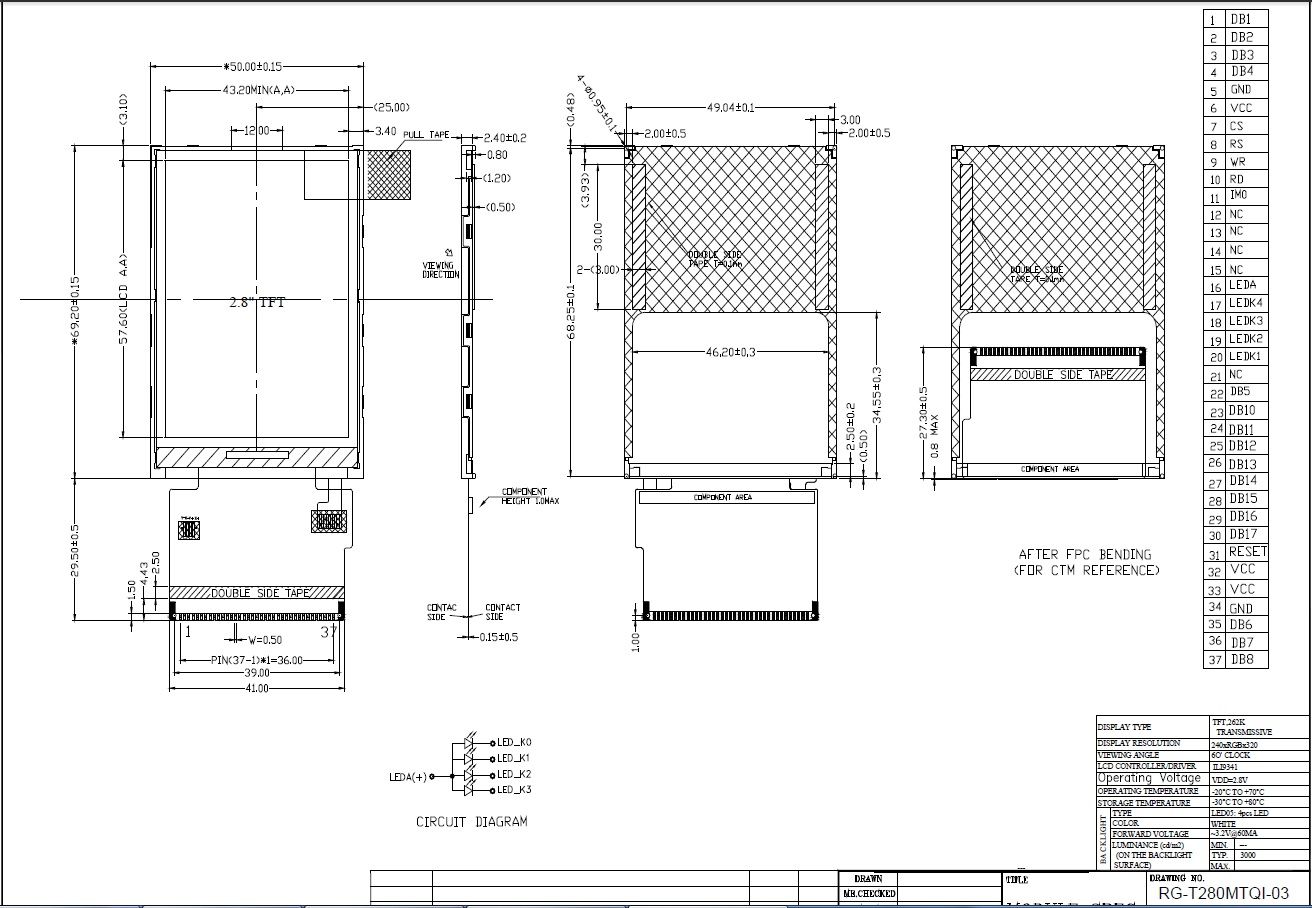

Merchanical Drawing
