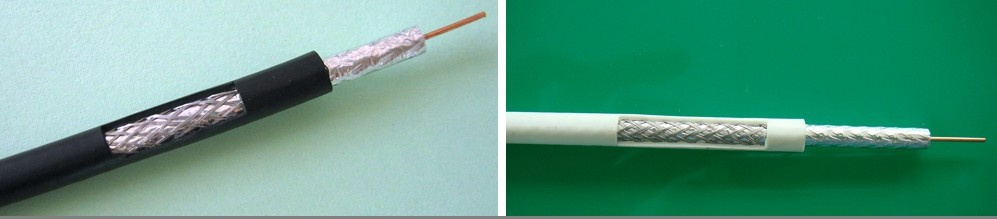

Rg 59 Coaxial Cable

Detailed Production description:
1. UL, CE, RoHS, CCC, ISO9001, 14000
2. Long transmission distance: 300m
3. Stable quality, competitive price
4. Fast delivery.

RG59 cable for CCTV camera
Inner conductor: 0.584 /0.81 Bare Copper
Dielectric: 3.7 Solid /Faom PE
Shield: Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1 PVC

RG59+2Power Siamese cable for CCTV camera
RG59 coaxial cable specs:
Inner conductor: 0.584 /0.81 Bare Copper
Dielectric: 3.7 Solid /Faom PE
Shield: Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1 PVC

2Power cable secs:
Conductor: Bare Copper 0.5mm2, 0.75mm2, 1.0mm2, 18AWG

Pre-made RG59 with BNC+DC plug cable
Cable: Specs are same as above items
Connector: BNC (Male--Male)

DC (Male--Female)

Length: 5m, 10m, 20m, 30m, 40m, 50m, 25FT, 50FT, 75FT, 100FT
UL---CMR, CMG, CM, CMX, FT4 class
CE and RoHS compliance
Package:
Inner packing: 1000FT, 500FT/wooden reel, 1000FT, 500FT/Reel In Box, 300m/wooden reel, 100m/easy pull box,
Or according to customer's requirements
