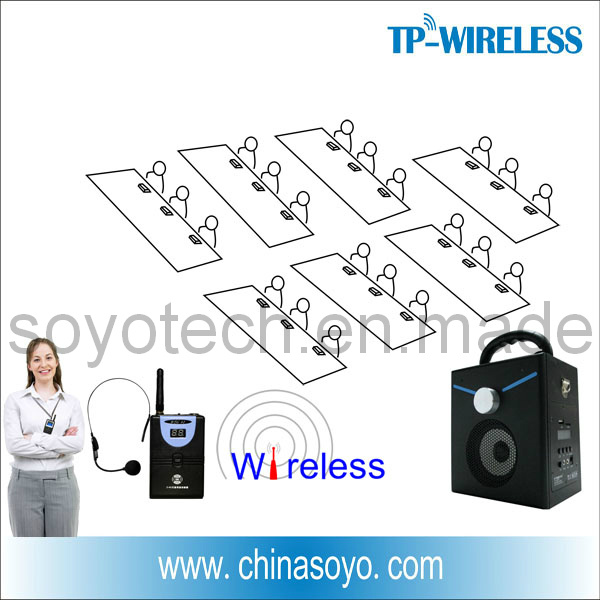

Headset wireless microphones solution to classroom audio system
A. Wireless microphones for teacher
B. Headset wireless microphones
C. Body-pack wireless microphones solutions
D. Wireless headset microphones solution
E. Headset Wireless microphones solution to classroom
F. Wireless body-pack microphone solution
G. CE/FCC/TELEC Certificates approved
Headset wireless microphone
Model: SOYO-WTG02
Features:
1). Installed in waistband, easy carrying and moving
2). Channel & Volume display and adjusting function.
3). Rechargeable battery or dry battery can be used. (2*AA)
4). Low power consumption, Belt-pack/Body-pack microphone can work over 8 hours continually.
4). Transmitter power output: 1mW~100mW as option. (Default power is 100mW)
5). Audio muting function when receiving weak signals or no signals.
6). Capable of being simultaneously used for over 100 classrooms and never crosstalk!
7). Flexible in design and customization logo service available.
>>> PLUS:
As a manufacturer in 2.4GHz digital wireless classroom audio system for over 9 years, Soyo Technology offer full wireless teacher microphones and loudspeaker system:
>>> for teacher:
We have follow wireless microphone available for your choice:
A. Handheld wireless microphone,
B. Headset wireless microphone,
C. Lapel wireless microphone,
D. Body-pack wireless microphone,
E. Belt-pack wireless microphone, etc
>>> for classroom:
We have follow items for classroom available for option:
A. Wireless classroom loudspeaker version
B. Wireless voice amplification version
C. Portable wireless loudspeaker version
|
NO. |
Model |
SOYO-WTG02 |
|
1 |
Description |
headset wireless microphone |
|
2 |
Power(input voltage) |
2 * AA battery |
|
3 |
Work currency |
120 mA (MAX) |
|
4 |
Operate temperature |
-25 ~ 85 ºC |
|
5 |
Frequency |
2400 ~ 2524MHz |
|
6 |
modulate |
GFSK |
|
7 |
Channel width |
1 MHz |
|
8 |
Transmit power |
20 dBm |
|
9 |
Input level |
Max 1.0Vpk |
|
10 |
Input impedance |
10k Ohm |
|
11 |
Input interface |
Two kind input mode:
1. Microphone input
2. Stereo sound input |
|
12 |
Output impedance |
1k Ohm |
|
13 |
Input-output gain ratio |
1:1 |
|
14 |
Delay |
2 ms |
|
15 |
SNR |
95 dB |
|
16 |
Distortion |
0.8 % @ 1kHz |
|
17 |
Dynamic range |
90dB |
|
18 |
Dimension |
90 mm*60mm*30mm |
|
19 |
Weight |
0.20kg |
