Renta De Pantallas De LED Display

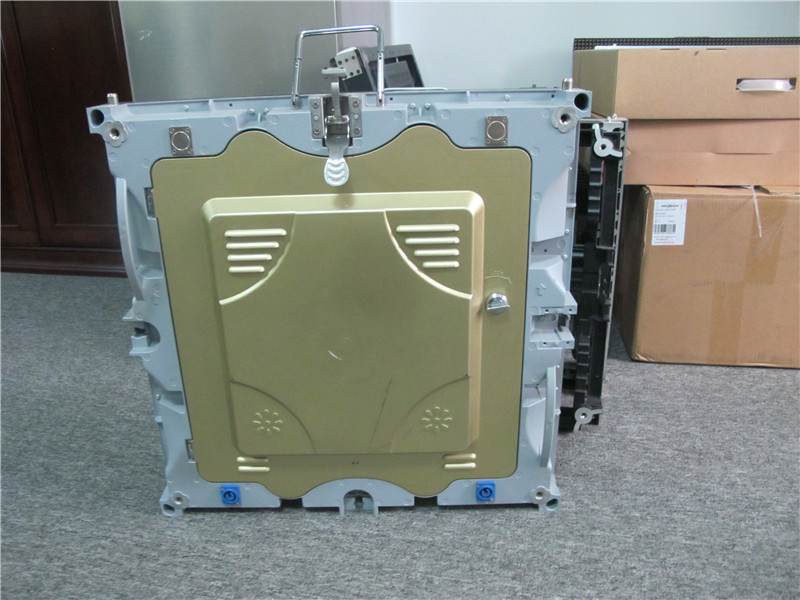

High Definition P4 Indoor Rental LED Screen with CE and RoHS

1) Hight: High density, high definition, High fresh rate, high gray level
2) Light:Cabinet size: 512mm*512mm, Weight: 8.5kg/pc.
3) Thin :Die-cast aluminum design, thin body with classic appearance.
4) Fast: Fast locks, Easy to assemble and disassemble.

Contact Us Now to know more: mobile: +86 13538127671


PH4 Datasheet
No.	Item		Specification
1	Pixel Pitch		4 mm
3	LED per pixel		SMD2121, Black led
4	Resolution		62500 pixel/ (uniformly spread over the surface, to ensure homogeneity)
5	LED Number per/m²		62500
6	Single Module Dimension/Pixel(W x H)		256mm x 128mm / (64dots * 32dots)
7	Single Cabinet Dimension/Pixel(W x H)		512mm*512mm /(128dots * 128dots)
8	Screen Dimension(W x H)		6.144m*4.096m
9	Screen Surface Area		25.17
10	Screen Graphic Definition		1536 dots * 1024 dots
11	Screen Configuration (W×H)		96 cabinets (Modular structure, allow any shape and size)  (2 screens)
12	Cabinet Material		Rental, Die-casting
13	Single Cabinet Weight		around 8.5kg
16	Optimal View Distancing		4m-150m
17	Horizontal Viewing Angle		140° (Standard LEDs Viewing Angle)
18	Vertical Viewing Angle		140° (Standard LEDs Viewing Angle)
19	Brightness		>1400cd/m²
20	Grey Color		14 Bit
21	Contrast		2000:1
22	Operating Temperature		-20ºC~+50ºC , 10%~90%RH
23	Temperature Checkup		When the working temperature is over 70 ºC, the power supply will cut off the current automatically. There are also excessive current& voltage protection
24	LEDs Lifetime		>1,000,000 Hours
25	Warranty		2 years
26	Input Voltage		110V-240V
27	Input Power Frequency		47~64Hz
28	Screen Power Consumption		Max:≤380W/sqm  ;  Average: 130w/sqm
29	Refresh Rate		≥1600Hz
30	Frame Rate		> 60 frames/sec
31	Defect Rate		≤0.0002
32	Water proof		No
33	Control Method		Synchronized with computer monitor
34	Way of Drive		1/16 Scan constant driving
35	MTBF		> 100,000 hours
36	Color Temperature		6500K±500
37	Signal Interface		DVI
38	Source Compatibility		YPbPr, PAL/NTSC, S-Video, HDMI, VGA, HD_SDI
39	Control Distance		120 m (CAT5, CAT6); Optical fiber transmission: 500m- 10km
40	Systems Operating Platform		WINDOWS(WIN95,WIN98,WIN2000, WINXP), with a friendly UI, and interfaces for secondary development.

Application Areas:

Indoor advertising, digital billboards, advertising in big companies
1. Sport stadium, fields, and playgrounds.
2. Airports, bus stations and railway passenger terminals.
3. Facades of shopping malls, department stores, banks and car dealerships.
4. Architecture and social projects, information systems in cities.
5. Show-business, concerts, festivals, motor shows and other public events.

  Why Chengxinguang(CXG) LED Display

1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.

2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.

3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
