| Prod Model: |
QD35YV-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Status: |
New |
| Color: |
Black |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
Product Description
1. Starting device is PTC
2. Frequency only for 50HZ
3. Voltage application from 220 to 240V
4. Application in water dispenser, MINI refrigerator, MINI freezer, liquor cabinet, ice machine and other refrigeration equipments.
5. High Reliablility
6. High stablity
7. Compact structure for larger installation space
8. Small size
9. High efficiency
10. Low sound
11. Light vibration
12. Nominal power is 1/18 HP
13. COP is 1.3 with the cooling capacity 52W
14. RSCR Motor
15. Static Cooling
16. With running capacitor

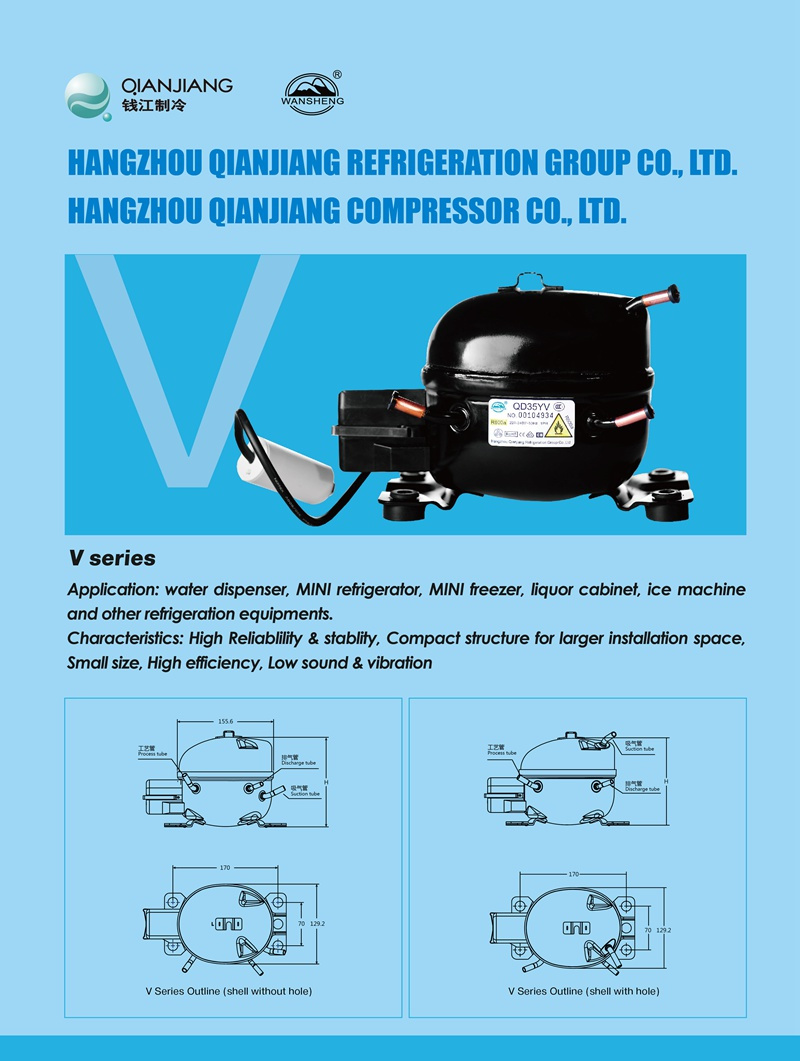

17. The height of V series QD35YV is 147MM
18. QD35YV has passed CCC/CE/CB/VDE certification
19. Low Back Pressure
20. Compressor should be stored in a dry and drafty place
21. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
22. Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
23. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
24. R600a mini refrigerator compressor QD35YV
25. V series QD35YV compressor use R600a refrigerant
26. Cheap price provided for the compressor QD35YV makes the customers better choice
27. Experienced staff ensure produce of the compressors with good quality
WANSHENG R600a Low Back Pressure (LBP) Compressor |
Test Conditions | LBP ASHRAE | Subcooling Temp.: 32.2°C |
| Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction Temp.: 32.2°C |
| Model | Nominal Power
(HP) | Cooling Capacity
(W) | COP Power Efficiency
COP (W/W) | Motor Type | Starting Device | Starting Capacitor
(μF) | Running Capacitor
(μF) | Cooling Type |
| V Series 220-240V~50Hz |
| QD35YV | 1/18 | 52 | 1.30 | RSCR | PTC | / | 2.5 | S |

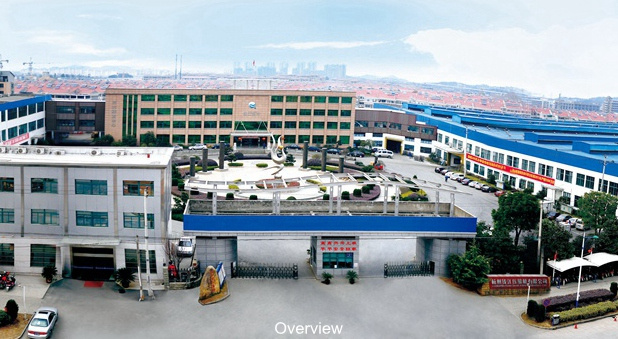

Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
