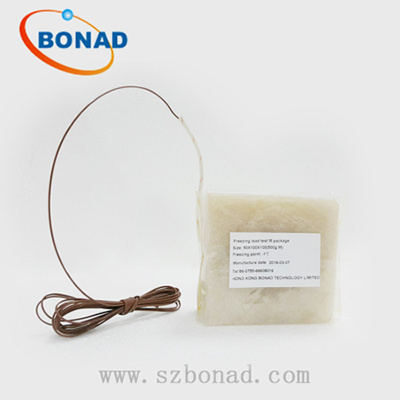

Refrigerator Freezing Load Test Package

Prod Model:	BND-SYB-M

Product Description

The freezing load test package is made according to GB/T8059.2 GB/T8059.4
Test package is placed in the frozen food storage compartment and ice greenhouse performance test, or in a freezer to test the freezing capability test, to simulate the load capacity of frozen food.
1. The freezing point of the test package is -1ºC (Its thermal performance is equivalent to lean beef)
2. Packaging material is a thin layer of plastic, or with appropriate materials which can do medium vapor exchange with the environment, immediately seal the packaging material after filling,
3. When measured in ice greenhouse, must use the  -5ºC test package.
4. You cannot use in test of testing freezing capacity and load temperature rise time.
5. M package means the 500g test package, it equipped with a thermocouple in the geometric center to measure the temperature. The thermocouple contact the package directly.
 Note:
Don't be long time store at normal temperature, pay attention to the deformation.
Don't to pressure, waterproof, fire prevention, handle with care.
Should be check test package regularly, The surface should not have visible holes or gaps. When you found the error , should be replaced.
Washing your hands after touch the package

 International and Euro standard test package (ISO 15502/GB8059.1-4)
-1 ºC and -5ºC two type


Weight	Temperature	Dimension
0.25kg	-1ºC	50mm*50mm*100mm
0.5kg	-1ºC	25mm*100mm*200mm
0.5kg	-1ºC	50mm*100mm*100mm
1kg	-1ºC	50mm*100mm*200mm
0.125kg	-1ºC	25mm*50mm*100mm
0.5kg	-5ºC	50mm*100mm*100mm
0.5kg	-1ºC	50mm-100mm*100mm
0.5kg	-5ºC	50mm-100mm*100mm
1kg	-1ºC	50mm*100mm*200mm
500g	-1ºC	50mm-100mm*100mm
