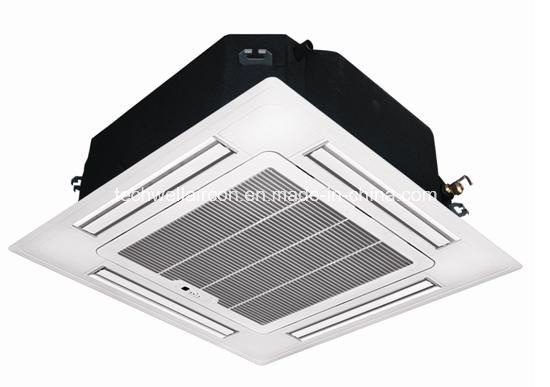

R22 60Hz Cassette Type Air Conditioner
| Price: |
US $ 100-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CCB-xxH(C)N |
| Markets: |
North America,South America,Southeast Asia,Mid East,Eastern Asia |
| Type: |
Central Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description
Cassette type air conditioner Capacity: 18000BTU -60000BTU
Gas type: R22
Power supply: 220V/60Hz
Specification| Indoor unit | CCB-12HN | CCB-18HN | CCA-18HN | CCA-24HN | CCA-36HN | CCA-48HN | CCA-60HN |
| Power supply | V/Ph/Hz | 208~ 230/1/60 | 208 ~ 230/1/60 | 208 ~ 230/1/60 | 208 ~ 230/1/60 | 208 ~ 230/1/60 | 208 ~ 230/1/60 | 208 ~ 230/1/60 |
| Capacity |
| Cooling | Capacity | Btu/h | 12000 | 18000 | 18000 | 24000 | 36000 | 48000 | 60000 |
| RT | 1 | 1.5 | 1 | 2 | 3 | 4 | 5 |
| Heating | Capacity | Btu/h | 13000 | 20000 | 20000 | 26000 | 39600 | 52800 | 66000 |
| RT | 1 | 1.5 | 1 | 2 | 3 | 4 | 5 |
| Physical data |
| Air flow volume (Hi/Med/Low) | CFM | 410/340/280 | 440/370/290 | 650/550/450 | 650/550/450 | 1000/760/650 | 1000/760/650 | 1120/910/760 |
| Noise level (Hi/Med/Low) | dB(A) | 48/43/38 | 48/43/38 | 46/40/36 | 46/40/36 | 49/45/41 | 50/48/43 | 52/48/45 |
Net dimension
(W×D×H) | Body | mm | 580×580×275 | 580×580×275 | 840×840×230 | 840×840×230 | 840×840×285 | 840×840×285 | 840×840×285 |
| Panel | mm | 650×650×30 | 650×650×30 | 950×950×50 | 950×950×50 | 950×950×50 | 950×950×50 | 950×950×50 |
Packing dimension
(W×D×H) | Body | mm | 745×675×375 | 745×675×375 | 920×920×310 | 920×920×310 | 920×920×375 | 920×920×375 | 920×920×375 |
| Panel | mm | 750×750×95 | 750×750×95 | 1030×1030×105 | 1030×1030×105 | 1030×1030×105 | 1030×1030×105 | 1030×1030×105 |
| Net weight | Body | kg | 25 | 25 | 28 | 28 | 31 | 31 | 31 |
| Panel | kg | 4 | 4 | 5 | 5 | 5 | 5 | 5 |
| Gross weight | Body | kg | 27 | 27 | 32 | 32 | 35 | 35 | 35 |
| Panel | kg | 5 | 5 | 7 | 7 | 7 | 7 | 7 |
| Applicable area | m 2 | 15~25 | 20~35 | 20~35 | 28~50 | 40~70 | 55~95 | 60~105 |
| Loading Qty(20'/40'/40'HQ) | pcs | 120/240/270 | 120/240/270 | 75/155/170 | 75/155/170 | 65/130/150 | 65/130/150 | 65/130/150 |
Tech Well Industries Co., Limited is a professional supplier of HVAC products. Tech Well focus on offering wide range solution of products to serve our clients' need. Our products lines includes different types HVAC equipment:
- Central air conitioning, includes Water cooled water chiller, air cooled screw water chiller, air cooled modular chiller, ground source heat pump, different types of fan coil units, and air handling units.
- Commercial air conditioning, including Rooftop air conditioners and VRF air conditioning systems.
- Variety types of mini-split air conditioners such as wall mounted split type, floor standing type, cassette type, floor ceiling type, duct type, etc.
- Tech Well offers industrial dehumidifiers as well, Including Concealed duct type, floor standing type and handle mobile type.
Wide Range portfolio provides complete solution on requirement of different projects. Tech Well promises to provide high quality products, rapid reply and support to clients, OEM and ODM manufacturing to our clients.
Tech Well's products are selling world wide, our main markets are Europe, Asia, Middle East, South America, and Africa. With high products quality, Tech Well's products are highly welcomed by his customers.
For providing a better service to our clients, Tech Well will offer outsourcing service on accessaries. Tech Well can help sourcing water pumps, pre insulated air duct panels, air dampler, fire dampler air curtain, air grilles and diffusers, PPR pipe, valves for water system, etc, to provide complete air conditioning and ventilation products and accessories support our clients, so as to offer our customers a carefree and one stop buying from Tech Well.
Tech Well always aim to offer high quality products with reasonable price to support our clients. As our slogan Says "Well Technology, Well Satisfactory", we will Make our best to satisfy your requirement With our technological products.
Hope to build up nice cooperation with you!
