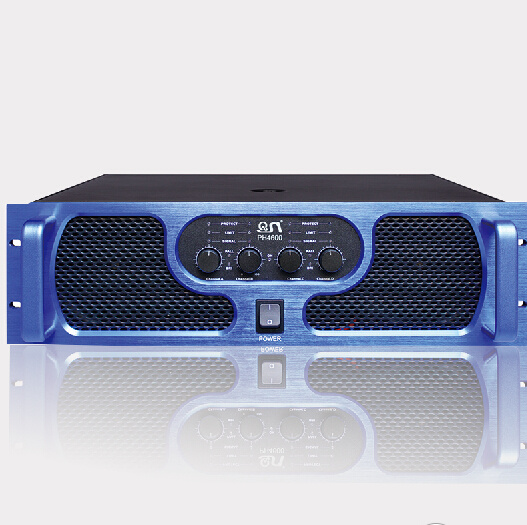

Name: QSN professional 450w*4 power amplifier(PH4400)
AB class line amplification: Delicately treble, fully medium, nicely drive bass.
Protection function: Short circuit protection, the midpoint of the current protection, overload protection and overheating protection function make the product stability.
Output flexible match: Each of the two channels can be connected in parallel or bridge, each of the two channels can be output in two different power.
Durable structure: The machine use one kind of strengthen and thick steel plate, what is more, the boards cover the transformer to support the machine firmly.
Internal technology: Symmetrical design, wiring beautifully.
For home theater systems, night club, karaoke rooms and so on.
|
Model |
PH4600 |
PH2600 |
|
Power 8Ω |
600W×4 |
600W×2+450W×2 |
|
Power 4Ω |
950W×4 |
950W×2+650W×2 |
|
Frequency response |
20Hz-20KHz,( +0,-0.3dB,1%Power) |
20Hz-20KHz,( +0.5,-0.5dB) |
|
Signal to noise |
95dB |
95dB |
|
channel divided |
≥70dB(1KHz) |
≥70dB(1KHz) |
|
Input sensitivity |
1.0V |
1.0V |
|
THD |
≤0.08%(8Ω.1KHz,1%Power) |
≤0.08%(8Ω.1KHz,1%Power) |
|
Input impendance |
20KΩ(Balance input,stereo mode)/10KΩ(Balance input,Balance input) |
20KΩ(Balance input,stereo mode)/10KΩ(Balance input,Balance input) |
|
Supply power |
5000W |
4500W |
|
Conversion rate |
≥10V/us(8Ω,10KHz) |
≥10V/us(8Ω,10KHz) |
|
Net weight |
28.5KG |
27.5KG |
|
Size(mm) |
483W × 468D × 132H |
483W × 468D × 132H |
|
Package size(mm) |
600W × 590D × 190H |
600W × 590D × 190H |
|
Model |
PH4400 |
|
Power8Ω |
450W×4 |
|
Power4Ω |
650W×4 |
|
Frequency response |
20Hz-20KHz,( +0.5,-0.5dB) |
|
Signal to noise |
95dB |
|
channel divided |
≥70dB(1KHz) |
|
Input sensitivity |
1.0V |
|
THD |
≤0.08%(8Ω.1KHz,1%Power) |
|
Input impendance |
20KΩ(Balance input,stereo mode)/10KΩ(Balance input,Balance input) |
|
Supply power |
4000W |
|
Conversion rate |
≥10V/us(8Ω,10KHz) |
|
Net weight |
26.5KG |
|
Size(mm) |
483W × 468D × 132H |
|
Package size(mm) |
600W × 590D × 190H |
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
