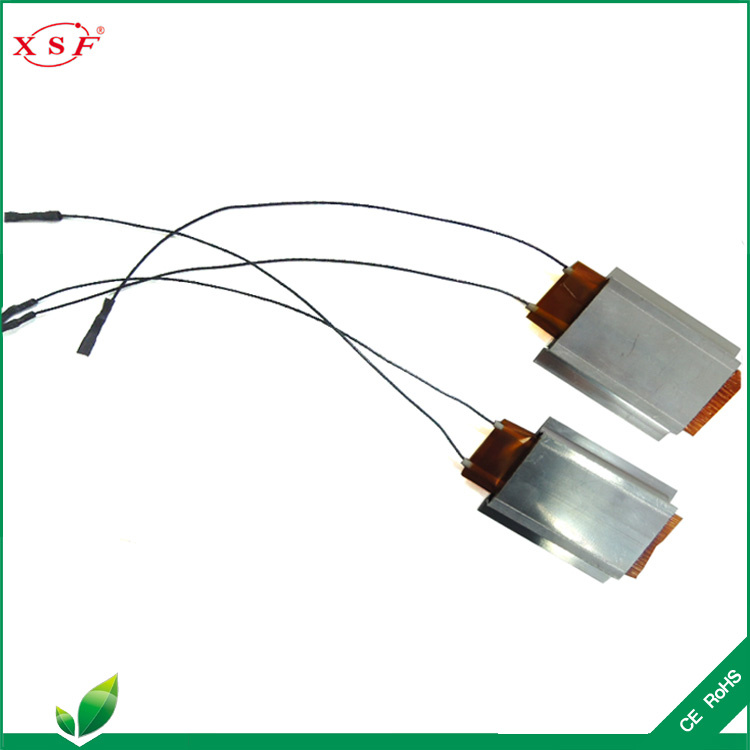

PTC Heater Description:
PTC heating is a new kind heater in the market .It is fixied by a pair of metal electrodes with leads on both sides of PTC element.
Metal electroded having assembled a pair of belt fuse in two flanks side of average PTC Component, Yellow insulative film, Structure are still simple in the metal electrode outward appearance on envelop
The simple-structure heater gives out constant-temperature heat and does not need any additional temperature applications.
PTC Heater Technical Detail:
Operating temperature range ºC(ºF):-50(-58) ~ 300(572)
Rated voltage: 1.2 ~ 600v
Surface temperature ºC(ºF): 45(113) ~ (572)
Surface temperature toleranceºC:±5 or ±10
Normal temperature resistance:Ω0.5~9000
Workig lifespan: 50,000hrs
PTC Heater Advantage:
Safety
When the power stable, it will give out the constant temperature continuous
Keep steady power
It can control the temperature by itself
Used in large range of voltage from 12V to 240V
Dimension is nimble various
PTC Heater Applications:
PTC heating have been widely used in hair permanent clamp, hair culer, face sauna, heat preservation plate, electric mosquito killer, physical therapy apparatus, hot melt glue gun and other automatic heat preservation devices.
Technical Specifications:
Operating temperature range ºC(ºF) | -50(-58) ~ 300(572) |
| Rated voltage | 1.2 ~ 600v |
| Surface temperature ºC(ºF) | 45(113) ~ (572) |
| Surface temperature toleranceºC | ±5 or ±10 |
| Normal temperature resistanceΩ | 0.5~9000 |
| Workig lifespan |
50,000hrs
|
Shenzhen Xinshengfa Electrical Heating Tech Co., Ltd, established in 2007, is high-tech enterprise that professionally develops and manufactures electric heaters for appliances, electric tools, armarium, facilities etc. We have several digital controlled automatic coil winding machines for coiling wire to different shapes, precision testing equipment and automatic rivet stamping equipment. Our products are heating elements, cartridge heater, heating wires, spring, waved heating frame, heating core, heating plate etc.
Our factory has several production lines with fully equipments such as Tube Rolling Machine, Centerless Grinder, Lathe, Polishing Machine, Digital Controlled Automatic Coil Winding Machine. And there are DC withstand voltage tester, Intelligent Open-type Insulation Resistance Tester, Life Aging Test Instrument, Infrared Thermometer in our lab so that we can finish the international-standard tests by ourselves.
From 2011, we have been doing research in heating membrane, energy-saving infrared heating tube, electrical heating insoles, hand warmer etc and already got great success, as they are hot-sale in about more that 10 countries such as Asia, Europe and America, MID-east, Korea etc.
Our trend is mainly to develop and manufacture green environmental and low-carbon products and we have passed the CE and RoHS certification, but we will not stop our steps to chase best quality, competitive price.
