| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 550mm*575mm*185mm: |
165-220vac/50-60Hz |
| Sound Channel: |
4.1 |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Element Number: |
Professional Power Amplifier |
Product Description

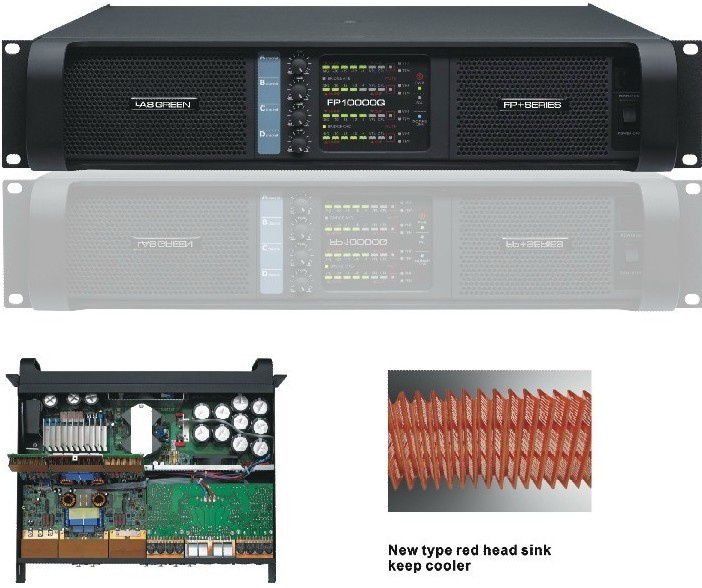

*Professional Power Amplifier;
*Audio Equipment;
*Biggest Output Power: 2350W*2 1300W*4 (at 8ohm);
*2u standards chassis;
*A class power output;
*Light weight 12Kg;
*Red copper heatsink
|
FP SERIES SPECIFICATIONS |
FP14000 |
FP9000 |
FP7000 |
FP4000 |
FP10000Q |
FP6000Q |
|
8 ohms Output Power(all ch. ' driven) |
2350w |
1600W |
1450W |
800W |
1300W |
625W |
|
4 ohms Output Power(all ch. ' driven) |
4400W |
3000W |
2800W |
1600W |
2100W |
1250W |
|
2 ohms Output Power(all ch. ' driven) |
7000W |
4500W |
3500W |
2000W |
2500W |
1500W |
|
8 ohms Briged per ch. |
8800W |
6000W |
5600W |
3200W |
4200W |
2500W |
|
4 ohms Briged per ch. |
140000W |
9000W |
7000W |
4000W |
5000W |
3000W |
|
Performance with Gain |
35dB VPL: 195V |
35dB VPL: 195V |
35dB VPL: 195V |
35dB VPL: 195V |
35dB VPL: 195V |
35dB VPL: 195V |
|
THD 20Hz-20KHz for 1W |
< 0.1% |
|
THD at 1KHz and 1dB below clipping |
< 0.05% |
|
Signal To Noise Ratio |
> 112dBA |
|
Channel separathion(Crosstalk)at 1kHz |
> 70dB |
|
Frequency Response(1W@Ω )+0/-3dB |
2Hz-34.2kHz |
2Hz-34.2Hz |
6.8Hz-34kHz |
2Hz-34.2kHz |
6.8Hz-34kHz |
608Hz-34kHz |
|
Input impedance |
20KΩ |
|
Input Common Mode Rejection, CMR |
54dB |
|
Output impedance @ 100Hz |
19Ω |
19Ω |
19Ω |
32Ω |
32Ω |
32Ω |
|
Amplifier gain selectable |
23, 26, 32, 35, 38, 41, 44dB |
|
Default gain |
38dB 35dB 35dB 35dB 35dB 35dB |
|
Level adjustment(per ch. ) |
Front-panel potentiometer, 31 position detented from-inf to o dB |
|
Input connectors (Per ch. ) |
3-pin XLR, Speakon or Binding Posts(must be specified upon order) |
|
Output connectors (Per ch. ) |
Neutrik Speakon or Binding Posts(must be specifies upon order). BP only on FP14000, FP13000, FP9000 |
|
Output brige mode |
A+B-Ch. A is signall input source. A+B, C+D-Ch. ' s A and C input source |
|
NomadLink network |
2*RJ45 EtherCon connectors, IN and OUT |
|
Intelligent fans (on/off) |
Yes, depending on persence of output signal |
|
Power and Remote enable |
Individual switches on front-panel |
|
Cooling |
Two fans, front-to-real airfiow, temperature controlles speed |
|
Common |
Nomadlink network; Power Average limiter (PAL)2; Power on |
|
Per channel |
Singal persent / High-impedance; -20dB, -15dB, -10dB and -4dB outputsignal; Voltage peak limiter (VPL); Current peak Limiter (CPL); Very High Frequency (VHF)Hightemperature; Fault; Mute; |
|
Dimensions |
W: 483mmm(19' ' ), H: 88mm(2U), Overall D: 396mm(15.6' ' ), Mounting D: 358mm(14.1' ' ) |
|
Weight |
12Kg(26.4Ibs) |
|
Finish |
Black paited seeel chassis with black painted steel/aluminum front |
Our factory specialized in production of audio equipment, the switching mode power supply amplifier we manufactured for audio, feature with high technology, energy saving, environmental protection, light weight. The product has passed CE, 3C certification, and obtained the certificate and report CB. FP series amplifiers feature with electronic technology, audio technology, the arts in one, use new type red copper heat sink, it is professional amplifier with high technology, energy saving, and environmental protection, the weight only 12Kg, it consumes less than ring transformer power amplifier about 28Kg of metal.
